An hour of TLS through the XGS 136's IPsec engine, every byte checked, 2026-10-20

The integrity soak of 2026-10-19 (two hours of TLS) again, through the lab IPsec tunnel this time - the one row of the XGS 136's resilience the first one left open:

• a 1 GiB file of random bytes, served over HTTPS by three TLS servers on the second XGS 3300;
• downloaded by the bench PC in three loops at once for 60 minutes, in through the XGS 136's F1 and out of its Port8 inside the tunnel: the tunnel's child widened at both ends to carry exactly the PC's network and the 3300's Port8 address for the run, and put back after;
• the XGS 136 encrypting the PC's side on its engine - its tunnel flows on, so the connections in its fast path, encrypted there - and decrypting the 3300's on its engine; the second XGS 3300 the other way round;
• each pass checked twice: curl's own TLS, which refuses a record that does not authenticate, and the file's SHA-256 against the server's;
• the XGS 136 - npuep.ko md5 db2f787a (the tunnel-flow lifetime feed, #593), its flow maker on.

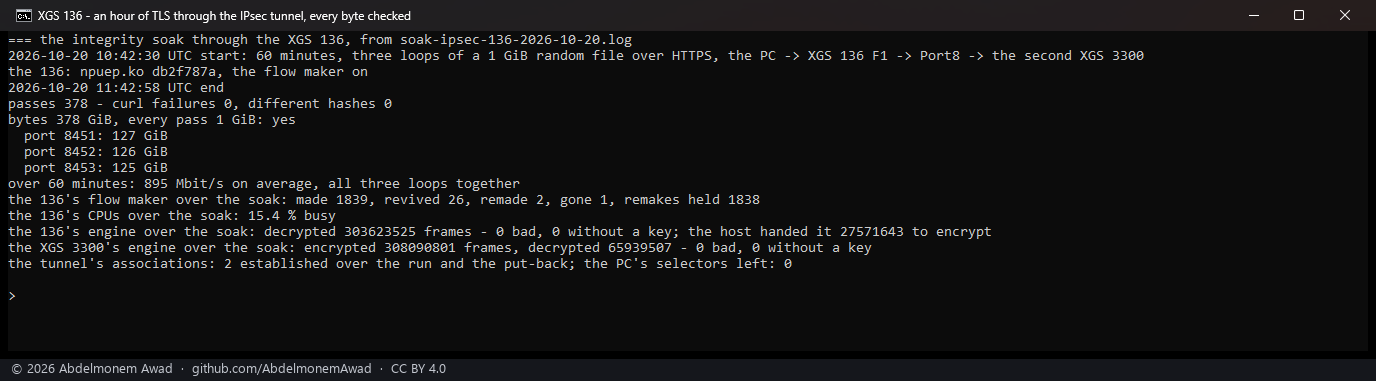

Script: images/deploy/lab-136-ipsec-soak.sh, its report lab-136-ipsec-soak-report.sh, photographed.

Measured

passes, in 60 minutes	378 - 127, 126 and 125 GiB on the three loops
passes curl failed	0
passes whose file differed	0
bytes	378 GiB, every pass the whole 1 GiB
rate, the three loops together, over the whole run	895 Mbit/s on average
the XGS 136's CPUs, over the whole run	15.4 % busy
frames the XGS 136's engine decrypted	303,623,525 - none bad, none without a key
frames the XGS 3300's engine encrypted toward it	308,090,801
frames the XGS 3300's engine decrypted from it	65,939,507 - none bad, none without a key
frames the XGS 136's host handed its engine to encrypt	27,571,643 - the rest of the PC's side went in hardware

The flow maker over the hour: 1,839 connections made, 26 revived in place, 1,838 given back soon after they were made and left with the host a while (#532's hold - each pass is a new TLS connection, and its first acknowledgements arrive in runs), 2 made again from new identities, 1 gone.

What it does not mean

• An hour, not two. The clear-text soak ran two hours; this one ran one.
• One tunnel, one association a direction. Many tunnels at once is its own measurement.
• The rate is the gigabit link's, less the tunnel's envelope; not a limit of the engine.
