The switch's queue scheduling: every frame from the coprocessor waits in queue 0, 2026-10-25

Discovery 20 of the discoveries. Each port of the 88E6193X in front of the XGS 3300's and the XGS 136's ports has eight egress queues, and their scheduling runs from weighted on all eight to strict priority on all of them - read on 2026-10-22 as weighted on every port, and taken then to be free to use. Measured on the second XGS 3300 (SFOS 22's coprocessor software), where a stream can be made to queue, and read on the first (SFOS 23's) and the XGS 136 (SFOS 21's), with octep.ko 6cde3fde and npuep.ko 590205fb (images/deploy/lab-qsched-report.sh; the long forms lab-qsched.sh, lab-qsched-conn.sh, lab-qsched-queues.sh).

The registers, from the switch's own driver library

The vendor's GPL release carries the switch's driver library (UMSD, its Amethyst family): the scheduling is the Queue Control register's (0x1C) pointer 0, 0 for weighted on all eight (33, 25, 17, 12, 6, 3, 2, 1) through 7 for strict on all; where a frame's priority comes from is Port Control (0x04) bits 5:4 - the port's default, the 802.1p tag, the IP header's DSCP, or tag then IP - with bit 6 choosing the tag when a frame has both; the ingress map from a tag's priority to a queue is register 0x18's table 0; and the frames waiting in each egress queue are read from register 0x1B, the queue written in bits 15:12 and the count read from 8:0. All of them through os-xgs-npu's switch tool on the coprocessor.

Where the streams queue

Switch port 8 of the second XGS 3300 is Port8, a gigabit port to the XGS 136. Two kinds of stream crossed it at once, each pair more than the port carries: two from the first XGS 3300 through the board's fast path - in hardware - to the XGS 136, and two from the board's own host to the PC behind the XGS 136, one of them marked EF (DSCP 46).

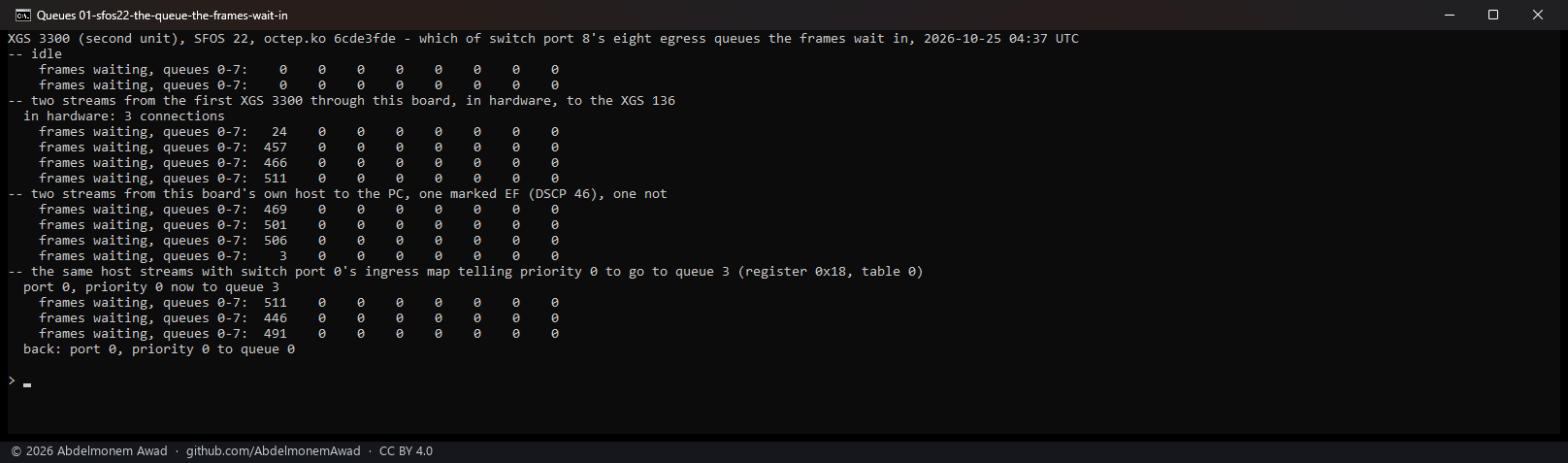

The second XGS 3300, SFOS 22: switch port 8's eight egress queues - empty idle; with the two connections in hardware crossing it, 457 to 511 frames in queue 0 and none in the other seven; with the host's EF and unmarked streams, the same; with port 0's ingress map sending priority 0 to queue 3, still queue 0

crossing switch port 8	frames waiting, queue 0	queues 1 to 7
nothing	0	0
two connections in hardware	24 to 511	0
the host's two streams, one marked EF	3 to 506	0
the same, with port 0's ingress map sending priority 0 to queue 3	446 to 511	0

Every frame the coprocessor sends to the port waits in queue 0 - a connection the fast path carries and the host's own, marked or not. Switch port 0, the coprocessor's, is in DSA mode, and neither its ingress map nor its priority source moved them, so as far as this shows they take their queue from the DSA tag the coprocessor writes on each frame - and that puts every one in queue 0. So the port's scheduling has one queue to schedule.

So the scheduling orders nothing

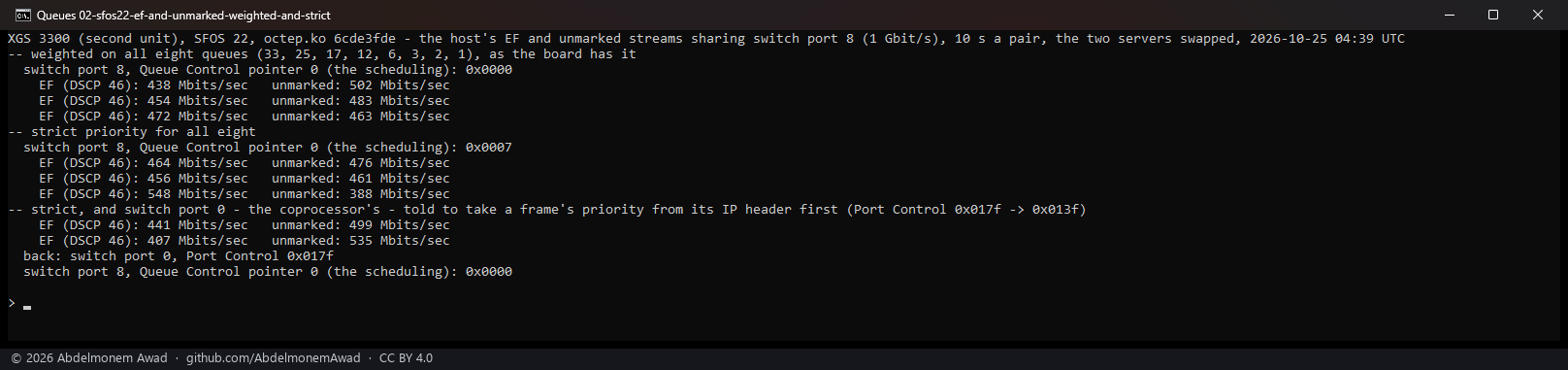

The second XGS 3300: the host's EF and unmarked streams sharing port 8 - weighted, 438 to 472 against 463 to 502 Mbit/s; strict for all eight, 456 to 548 against 388 to 476; strict with port 0 taking a frame's priority from its IP header first, 407 to 441 against 499 to 535

the host's EF and unmarked streams, 10 s a pair	EF (DSCP 46)	unmarked
weighted, as the board has it	438-472 Mbit/s	463-502 Mbit/s
strict priority for all eight	456-548	388-476
strict, port 0 taking the priority from the IP header first (Port Control 0x017f to 0x013f)	407-441	499-535

The marked stream did not win under either; in other runs the split wandered from 296 against 643 to 659 against 282 with the scheduling weighted, and stayed near half and half with it strict.

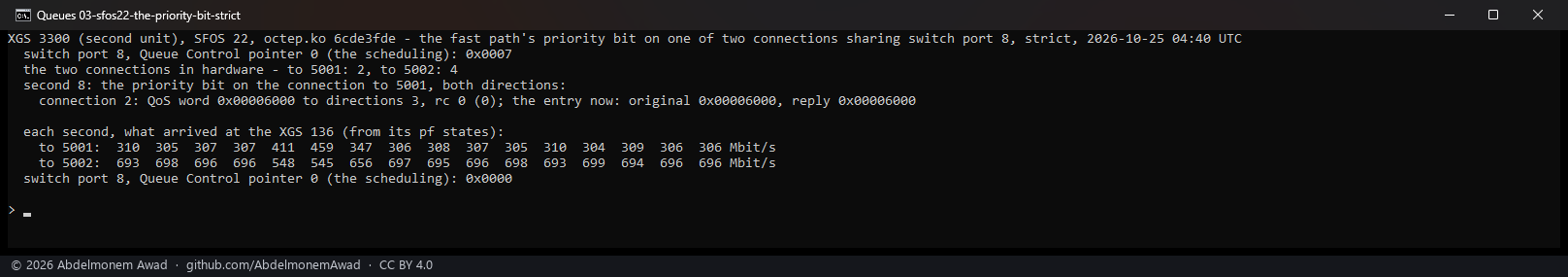

The second XGS 3300: strict for all eight, the fast path's priority bit set on the connection to 5001 at second 8 - read back from the entry, and the two at 304 to 310 and 693 to 699 Mbit/s after it as before, three seconds before it apart

Nor did the fast path's priority bit for a connection (discovery 6), measured on 2026-10-24 with the scheduling weighted: with it strict, the connection given the bit kept its share, 304 to 310 Mbit/s against 693 to 699, as before it. The two connections settled at 305 against 695 under either scheduling, and at 224 against 777 too with it strict; one run moved from the second to the first with nothing changed - which is how one queue shared by two TCP connections behaves, not a priority.

The same on all three versions

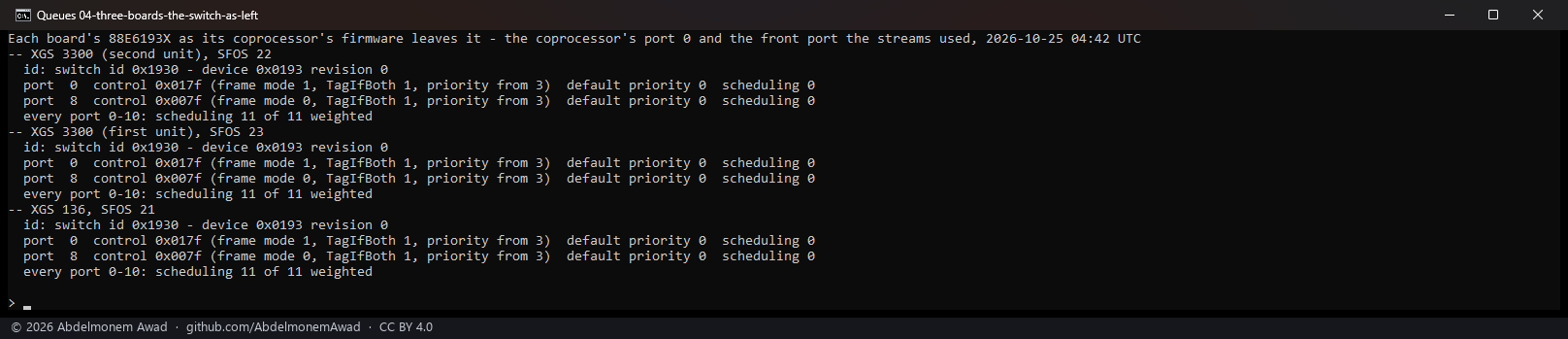

Each board's switch as its coprocessor's firmware leaves it: on the XGS 3300s, SFOS 22 and 23, and the XGS 136, SFOS 21 - port 0 in DSA mode with its priority from the tag then the IP header, port 8 the same in normal mode, default priority 0, and every port's scheduling weighted

The three firmwares leave the switch alike: port 0 in DSA mode, every port taking a frame's priority from its tag and then its IP header, default priority 0, and all eleven ports weighted. One read of the XGS 136's port 0 came back 0x000f before and 0x017f after - the bus there is shared with the network agent's polling, which spoils a read now and then (639) - so each register is read three times and the value seen twice kept.

What it means for os-xgs-npu

Not built: nothing sets the scheduling. Strict priority on a front port would order nothing, because everything the coprocessor sends there is in one queue. Priority for a front port's outgoing traffic needs the frames put in different queues first, and the coprocessor does not: the switch's own ways to override a frame's queue - a TCAM rule on port 0, a priority by address or by VLAN - were not tried. The other direction, a front port's frames to the coprocessor, takes its priority from their tag and DSCP as set, but meets a link to the coprocessor far faster than the ports, where nothing was seen to queue.

What it does not say

Whether a TCAM rule, an address's or a VLAN's priority override would move the coprocessor's frames out of queue 0 - and so give the scheduling something to do.
The counts of queues 1 to 7 were never seen above 0, so their reading is not itself shown to work; the shares, which follow no marking, agree with it.
The XGS 136 and the first XGS 3300 were read, not loaded: neither has a front port on the bench where a stream could be made to queue safely - the first XGS 3300's two with a link, its WAN and Port4, ~~lead off the bench~~ join none of the lab's boards: Port4 has no address on it (read again for frontports-2026-10-25).
