The Traffic Shaper and a connection in hardware, measured, 2026-10-20¶
OPNsense's Traffic Shaper and its Captive Portal decide in ipfw, and ipfw sees a packet only while the host forwards it. A connection the coprocessor forwards itself never reaches it: it escapes a shaper's pipe, and a portal's client that logs out keeps what it had open. Nothing in this project knew that until today. Measured on the second XGS 3300, and fixed: whatever an enabled shaper rule or portal zone names is now kept with the host, as if the owner had put it on the never-offloaded list.
Measured¶
A 100 Mbit/s pipe and a rule sending what arrives on F1 for the first XGS 3300's address through
it, made through OPNsense's own Traffic Shaper model and applied the way its page applies them; one
stream of 40 seconds from the PC's 10G port into F1, through the second XGS 3300 to the first, its
flow maker on (octep.ko md5 872fd0bc). images/deploy/lab-3300-shaper.sh, photographed:
| the stream | its connection in the 3300's flow table | |
|---|---|---|

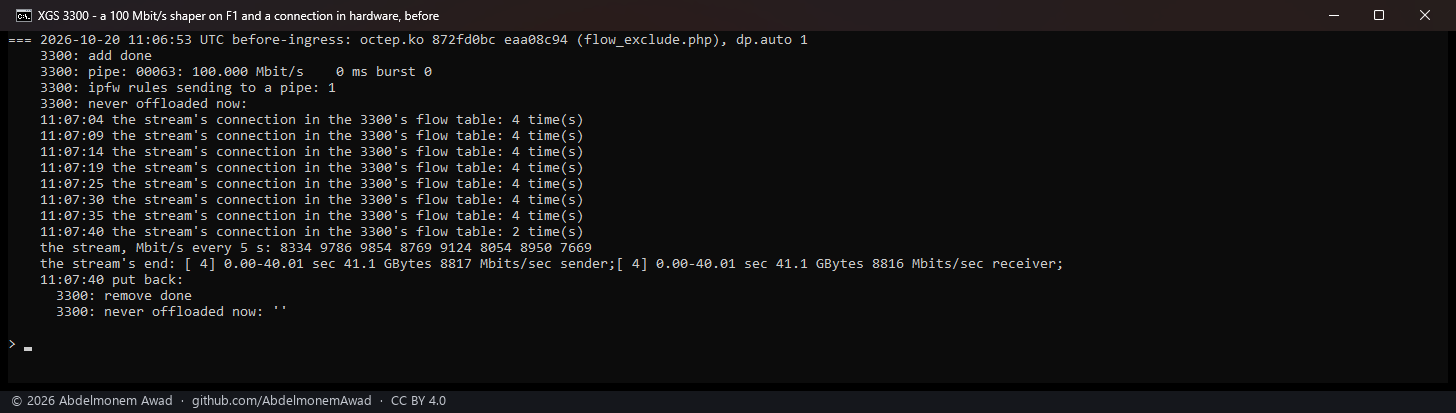

before - the list written as it was (flow_exclude.php md5 eaa08c94) |
8,816 Mbit/s | there, the whole run |
after - flow_exclude.php md5 a67ba0e9 |
99.5 Mbit/s, every five seconds 99.4 to 99.6 | never; the list held a4:0a630a01/32, that address |
Before, the shaper held the stream for the moment it crossed the host, and then the flow maker handed it to the coprocessor: from there on it ran at 8.8 Gbit/s through a 100 Mbit/s pipe. After, the rule's destination was on the list before the stream began, the flow maker left the connection with the host, and the pipe held it to its rate.
Without a hand on it. The Traffic Shaper's and the Captive Portal's pages call nothing of this
plugin, so the plugin's cron makes the list again every minute and writes it when it changed
(flow_exclude.php --if-changed). Measured the same way, with no hand-run step: the shaper rule
applied at 11:08:57, the list held that address four seconds later and the XGS log said why - the
Traffic Shaper: lab-shaper - and the address; the rule removed, the list was empty within the minute -
the Traffic Shaper and the Captive Portal keep nothing now.
A portal zone, made on F2 through the Captive Portal's model, put F2's two networks on the list - its IPv4 and its IPv6 one - and taking the zone away took them off. No client went through a portal for this.
How the list is made¶
- A shaper rule's source and destination networks; a rule that names none, its single ports.
- A portal zone's interfaces' networks, as config.xml fixes them.
- Everything - 0.0.0.0/0 and ::/0, so the flow maker forwards nothing - when a rule names nothing narrower than an interface, a port range, a "not", or anything this cannot read; when a zone is on an interface without a fixed network; and when the owner's list and these together pass the 64 entries a driver keeps. Too much kept with the host costs speed; too little lets a connection past a shaper, so the doubt goes the safe way.
- An entry matches either end of a connection, as the owner's entries do, so a rule for one destination keeps with the host everything to or from that address.
What it does not mean¶
- The shaper itself. A rule on the way out of A4, the first one tried, matched nothing even with the stream crossing the host (ipfw counted the stream's packets twice, in and out, and that rule's count stayed 0): the measured rule is the one on the way in. That is OPNsense's matter, not this plugin's, and not looked into further.
- The XGS 136 writes the same list into its own driver (
flow.exclude, measured with the owner's entries on 2026-10-19); this run was on the XGS 3300 alone. - A portal with clients was not run: only the list it makes.
