What the hardware can do that was not known - the discoveries of 2026-10-22

Info

These discoveries matter a great deal, and they lowered the completion figures on purpose. A sweep of the vendor's own sources, its board package and the coprocessor's own log found capabilities of this hardware that this project had not known about - among them a deep packet inspection and threat detection engine running on the XGS 3300's coprocessor, a transmit rate limit for each front port, and the TCP window checked in hardware, which also showed that a connection in hardware has its TCP window checked nowhere today. The family tables now count them: the XGS 3300 went from 97% to 89% (its table) and the XGS 136 from 96% to 91% (its table). They will be worked on one at a time and arrive as updates, ticked off in 680; each section below says where it stands.

Every section is marked with how far it has been taken:

mark	means
source	read in the vendor's own source or headers; not yet tried on an appliance
read	read on the appliance itself - its coprocessor's log, its files, its registers - and photographed
measured	tried on the appliance, with the result

The sources are the vendor's GPL release of SFOS v22 (SDK 10.22.03): the fast path's headers and the coprocessor side of its RPC, the vendor's own host module that drives them, the board package and the network agent's host module. Only names and facts are taken from them here - which structure field, which command, which message - and no code; the project's position on that is in the README's licence section. The readings were taken on 2026-10-22 on the second XGS 3300 and on the XGS 136, read only.

Where each capability lives

All of them, in one table

	discovery	where	XGS 3300	XGS 136	os-xgs-npu today
1	The TCP window, in hardware	fast path	source	source	a gap: checked nowhere
2	The window handed back	fast path	source	source	the take-back's TCP state not used
3	A connection dropped by its verdict	fast path	source	source	verdict always "forward"
4	Inspection, then hardware	fast path	source	source	none
5	Live users	fast path	source	source	none
6	A priority bit and a meter for each connection	fast path	source	source	zero
7	The QoS commands	fast path	source	source	none; expected refused
8	DSCP rewritten for each flow	fast path	source	source	zero
9	Bridged flows	fast path	source	source	routed flows only
10	VLAN interfaces	fast path	source	source	none made
11	A heartbeat with the fast path	fast path	source	source	counted, not sent
12	Mirrored packets	fast path	source	source	counted only
13	Counters cleared	fast path	source	source	read only
14	IPsec state kept in step	fast path	source	source	none
15	Ciphers nobody has tried	IPsec engine	source	source	GCM and CBC with HMAC only
16	Public-key operations	coprocessor's engine	source	source	none
17	A packet dump in the fast path	fast path	source	source	named, not used
18	Frames injected from the host	fast path	source	source	not used
19	The TCAM: 254 of 256 entries are the vendor's	switch	read	not read	-
20	Queue scheduling up to strict priority	switch	read	not read	not used
21	Two front ports never switch to each other in the chip	switch	read	likely	-
22	Dragonfly: deep packet inspection and threat detection	coprocessor	read, running	read, absent	not enabled
23	A transmit rate limit for each front port	coprocessor	read, on	read, off	port speed sent as the link's
24	The coprocessor's own watchdog, memory reports, clock and randomness	coprocessor	read	read	not used
25	The network agent's polling mode	network agent	source	source	never sent
26	VLANs, bridges and address entries through the agent	network agent	source	source	never sent
27	A logger for the coprocessor's console	board package	source	source	none
28	The XGS 3300's management link, built and not used	host	measured once	- (in use)	console used instead
29	The fail-to-wire relay's watchdog	board	source	-	relay read, not driven

The fast path

The coprocessor's fast path understands 54 commands. Its RPC module dispatches every one of them except the seven QoS commands and the three DoS ones - which is why the DoS commands answered "not dispatched" when they were tried (dos-probe-2026-10-19). os-xgs-npu sends about thirty; these are what the rest do, and what the fields it leaves at zero do.

The TCP window, in hardware

source - and a gap today. Every connection entry on the fast path carries the TCP state the vendor's own conntrack keeps: for each direction the end, the maximum end, the maximum window and the maximum acknowledgement, the window scales, and a switch, seq_chk_on, that makes the fast path check every segment against them; the vendor's host module fills them from its conntrack when it hands a connection over, and the fast path counts what fails the check (FPCNTR_FROM_WIRE_DROP_TCP_SEQ_CHK_INVALID). os-xgs-npu sends a connection with its first word only and the rest at zero (contrib/octep/octep_rpc.c), so the check is off - and because pf would drop a connection's frames against a window it no longer sees move, it marks the connection's state sloppy (contrib/octep/octep_pf.c, contrib/npuep/npupf.c; why). So today an offloaded TCP connection's window is checked neither by pf nor by the coprocessor (679). Filling that state from pf's own peers - seqlo, seqhi, max_win, wscale - would put pf's window check into hardware. The global switch for it is already on (OCTEP_FW_CFG_TCP_SEQ_CHK).

The window handed back

source. When a connection is taken back (CONN_RECLAIM_FP, which os-xgs-npu sends), the answer carries the fast path's TCP state and both directions' counts; a separate command reads the state of a connection still in hardware (CONN_GET_FP_TCP_STATE), and another tells the fast path about a segment the host handled (CONN_TRACK_FP). With the section above, pf's state can be brought to where the wire is when a connection comes back, and the sloppy marking is no longer needed.

A connection dropped by its verdict

source. A connection's verdict has three values: forward (OCTEP_CONN_VERDICT_CUT_THRU, the only one os-xgs-npu uses), drop, and send to inspection; CONN_MODIFY_FP_VERDICT changes it in place. A block list or a JA4 fingerprint could stop a connection on the coprocessor itself, its frames dying there, instead of taking it back to the host.

Inspection, then hardware

source. The "send to inspection" verdict hands a connection to an inspector on a virtual function (ips_vf), with a metadata block that lets the inspector rewrite the packet and ask for new checksums, and a counter for frames forwarded once the verdict is in (FPCNTR_FROM_WIRE_TO_WIRE_VERDICT_CUT_THRU). It is the shape an IDS such as Suricata needs: it sees the start of a connection, and the rest runs in hardware.

Live users

source. ADD_LIVE_UID and DELETE_LIVE_UID keep a table of logged-in users, and a connection carries its user's number: when the user is gone, the fast path stops forwarding it (FPCNTR_FROM_WIRE_TO_KN_LIVE_UID_INVALID). OPNsense's Captive Portal sessions could live in hardware and end the moment a user logs out.

A priority bit and a meter for each connection

source. Each direction of a connection has a QoS word - a priority bit, a valid bit and a meter number - set by CONN_MODIFY_FP, whose handler is present. It is the hook for priority in hardware (os-trafficpriority).

The QoS commands

source. Seven commands - add, remove and query a meter, set and read a shaper rate and a DWRR weight - are declared with no handler in the coprocessor's RPC module, like the DoS ones; they are expected to answer "not dispatched".

DSCP rewritten for each flow

source. A flow can carry a DSCP value to write into every frame (dscp_override_en, dscp_override_val). A mark pf or the shaper sets would survive the connection's move into hardware.

Bridged flows

source. A flow's bridge control says separately whether to rewrite the source MAC, the destination MAC and the VLAN, and whether to lower the TTL; os-xgs-npu writes "routed", all of them (OCTEP_BRCTL_ROUTED). Without the rewrites it is a bridged flow - the XGS 136's thirteen-port LAN bridge carrying LAN-to-LAN traffic in hardware.

VLAN interfaces

source. A logical interface is a port and a VLAN together - 4,096 to a port - and a next hop carries a VLAN; os-xgs-npu makes only each port's VLAN 0 (contrib/octep/octep_dp.c). VLAN subinterfaces could be offloaded.

A heartbeat with the fast path

source. The vendor's host module sends a heartbeat message to the fast path every five seconds and expects it echoed; with none for 60 seconds it warns, at 120 it declares the fast path dead. os-xgs-npu counts both message types and sends neither. A host that knew within seconds that the fast path had stopped could say so and take its connections back - the questions of 361 and 454.

Mirrored packets

source. A control message carries a copy of a packet from the fast path to the host - offloaded traffic made visible for a capture or an IDS.

Counters cleared

source. Four commands clear the fast path's counter tables, so a measurement can start from zero.

IPsec state kept in step

source. SA_SEQ_UPDATE, SA_REPLAY_UPDATE and SA_HOST_STAT_SYNC move an association's sequence number, its replay window and its counts between the host and the engine.

Ciphers nobody has tried

source. The engine's cipher list names ChaCha20, AES with no encryption (GMAC), counter mode and 3DES besides what was measured; SHA-384 was not run. GCM with an 8- or 12-byte ICV and transport mode are settled (gcm-12-and-transport-are-not-ours).

Public-key operations

source. The fast path counts signing, algorithm and session errors of a public-key path (FPCNTR_CRYPTO_PKI_*) - the coprocessor's engine doing RSA and ECDSA work, which the vendor uses for TLS inspection.

A packet dump in the fast path

source. A bit of the fast path's configuration word turns on a packet dump (OCTEP_FW_CFG_FP_PKT_DUMP) - a flow in hardware made visible for diagnosis.

Frames injected from the host

source. The host can inject a frame into the fast path with its connection's context and have it sent on, encrypted where its connection is a tunnel's.

The switch

The TCAM: 254 of 256 entries are the vendor's

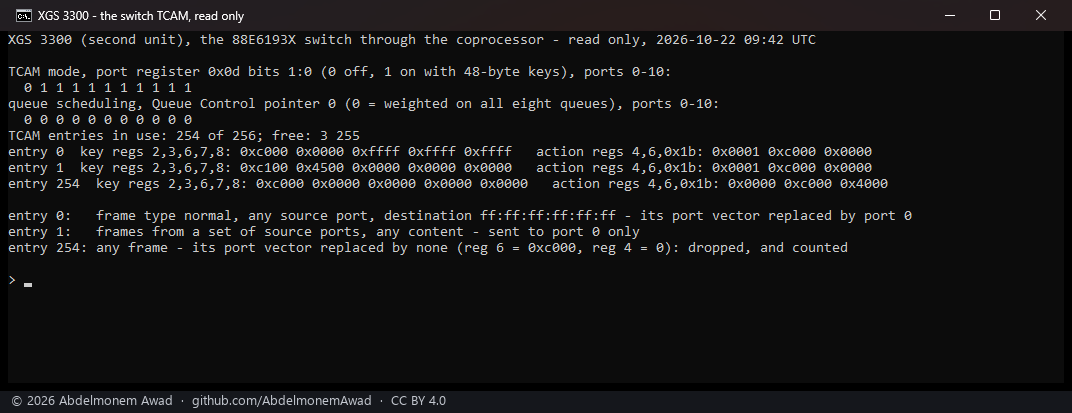

read. The 88E6193X has a TCAM of 256 rules that match a frame's first 48 bytes and can replace where it goes, its queue or its DSCP. On the XGS 3300 it is on for the ten front ports and 254 of its 256 entries are already the vendor's: broadcast and multicast, each port's frames and each of the appliance's own addresses sent to port 0 - the coprocessor - and a last entry that drops whatever else arrives. Entries 3 and 255 are free. So the TCAM is not free to use for a plugin's own rules.

Queue scheduling up to strict priority

read. Each port has eight queues, scheduled anywhere from weighted on all eight to strict priority on all of them; all eleven ports are weighted today. That is free to use, through os-xgs-npu's switch tool.

Two front ports never switch to each other in the chip

read. Because the vendor's TCAM sends every front port's frames to the coprocessor, two devices on two front ports never reach each other inside the switch - their frames always pass the coprocessor. Whether the host's rules then see them is to be measured.

The coprocessor, read on the appliances

Dragonfly: deep packet inspection and threat detection

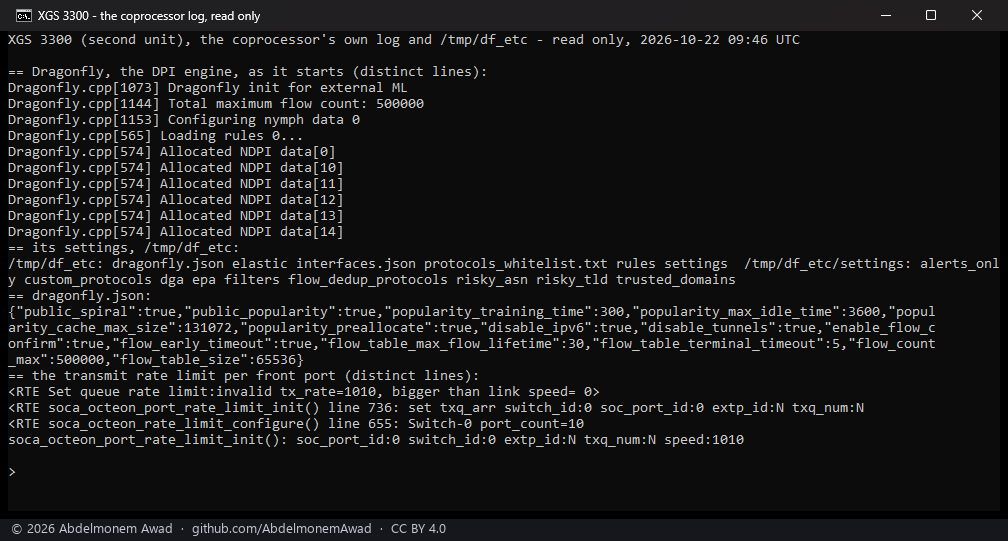

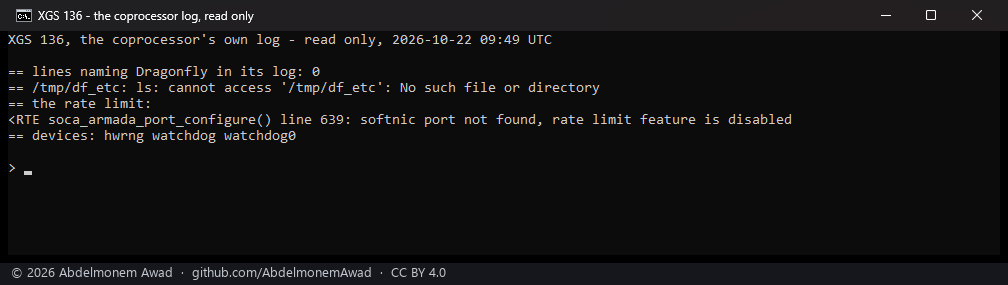

read: running on the XGS 3300, absent on the XGS 136. The XGS 3300's coprocessor starts, at every boot, a DPI and threat-detection engine inside its fast path: nDPI for the applications, settings for DGA domains (the throwaway names malware makes up), risky top-level domains and autonomous systems, trusted domains, block and allow lists, an "alerts only" mode, reputation rules, an export template, and "init for external ML". Its flow table holds 500,000 flows. A logical interface turns it on (df_enabled); os-xgs-npu never does. Where its alerts leave the coprocessor is the next question.

A transmit rate limit for each front port

read: on for the XGS 3300's ten switch ports, off on the XGS 136. The XGS 3300's fast path gives each front port behind the switch its own transmit queue with a rate limit, set from the host by the port-speed message (OCTEP_CMSG_TYPE_PORT_SPEED), which os-xgs-npu sends as the link's own speed. A lower figure is an egress shaper in hardware - the WAN held to the line's upload. On the XGS 136 its log says the feature is off ("softnic port not found").

The coprocessor's own watchdog, memory reports, clock and randomness

read. Both coprocessors have a watchdog of their own (sbsa-gwdt), memory error reporting (EDAC) and a hardware random number generator; the XGS 3300's has a PTP clock too. Whether anything feeds its watchdog is not known.

The vendor's stack and board package

The network agent's polling mode

source. The network agent takes a command to change how it polls (SET_POLLING_MODE) - documented in netagent.md and never sent. Its polling of the switch's bus is what spoils os-xgs-npu's own reads there and made the XGS 136 report linked ports down (639).

VLANs, bridges and address entries through the agent

source. The agent's commands for VLANs, bridges and static address entries inside the switch, and the port attributes for the frame types a port accepts, learning and flooding, are declared and never sent.

A logger for the coprocessor's console

source. The board package has a script that writes everything the coprocessor's console prints to a file, "to catch NPU crashes". os-xgs-npu uses the console only for commands, so a crash's last words are lost (454).

The XGS 3300's management link, built and not used

measured once. The XGS 3300's PCIe management link is built (contrib/octep/octep_mgmt.c) and answered a ping once (octeon-tx.md), but the coprocessor is still reached through its console - slow, and shared with its boot firmware's menus.

The fail-to-wire relay's watchdog

source. The board's description names a watchdog and a trigger for the fail-to-wire relay - a relay that closes by itself when the host stops. The relay is read and, by the owner's decision, not driven.

Beyond the scope

These are in the hardware and are not used by the vendor's own firmware on these appliances either, so they are not counted in the completion figures - a row is added for one when the owner decides to build it.

	what	why it is beyond the scope
	VLANs, bridges and address entries inside the switch through the agent	the vendor's host module never sends them
	ciphers the engine names and nobody uses here	not what the vendor's firmware offers for these appliances
	the rate limit on the XGS 136	off in the vendor's own configuration
	the PTP clock, the RNG, the eMMC's RPMB	no use in a firewall found

The full working list, with every file and line read, is kept locally beside the sources it cites.
