An error only the switch sees, counted on XGS: Ports, 2026-10-20¶
Port1 to Port8 and two of the cages hang off an 88E6193X switch on both families. A frame that switch takes in with a bad checksum, too short or too long, or drops, is never handed on: the host's interface counters do not see it and neither do the coprocessor's. The switch counts it itself, in its RMON counters, and nothing read them until today.
What was built:
contrib/mvswreads them:mvsw 0 2 stats [first last], every counter of a port read twice and compared, because the coprocessor's network agent shares the MDIO bus and about one read in ten returns another transaction's data. From the vendor's switch library: Global1 register 0x1D, the Stats Operation, reading a port's counter directly.scripts/xgs/portstats.pyasks the coprocessor for them every five minutes - on the XGS 136 over the management link in about a second, on the XGS 3300 over its console in about 26 - and keeps the reading with the one before it.- XGS: Ports has a section for them: what each port received and sent, what it received in error, what it dropped on arrival and its errors sending, with what changed since the reading before, and Read now.
Measured on both: every one of the ten ports read on the XGS 136 and on the second XGS 3300, the traffic counts matching what crossed them - the 136's Port8 had taken in 59 GB of the IPsec soak, its F1 sent 57 GB on to the PC - and every error counter at 0.
An error made on purpose¶
So that one moves: the XGS 136's switch port 8 set for a moment to the switch's smallest frame limit,
1,522 bytes (Port Control 2 bits 13:12 to 0, from 10,240), and the second XGS 3300 - its Port8 cabled
to the 136's, both at MTU 9,000 - pinging across it with frames of 3,042 bytes and, beside them, of
1,042. Then the limit put back the way every boot sets it (switch-jumbo.sh).

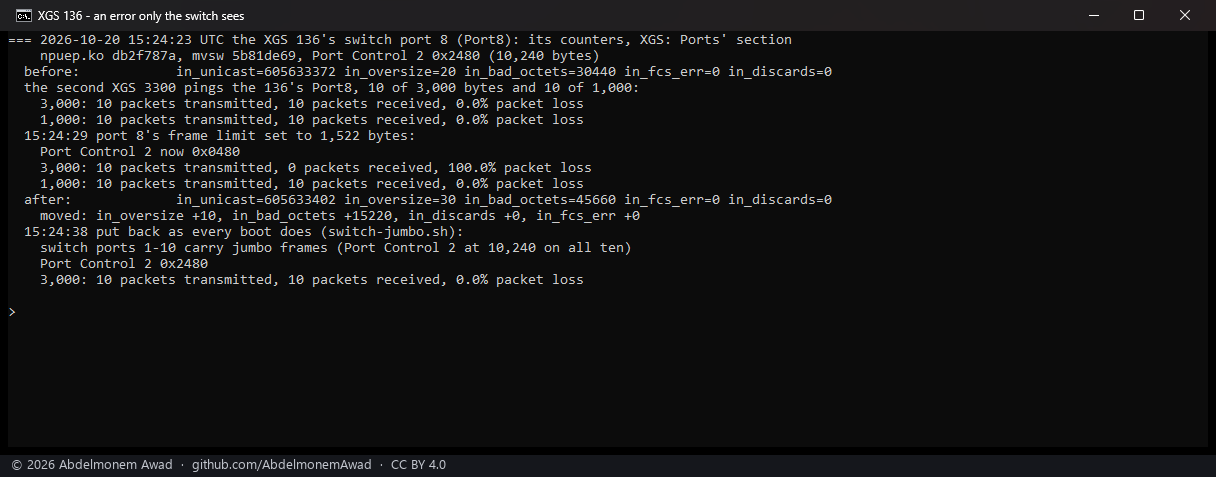

Script: images/deploy/lab-136-port-errors.sh, photographed; run three times, the same each time.
| frames of 3,042 bytes | frames of 1,042 bytes | |
|---|---|---|
| before, the limit at 10,240 | 10 sent, 10 answered | 10 sent, 10 answered |
| the limit at 1,522 | 10 sent, 0 answered | 10 sent, 10 answered |
| what the switch counted on port 8 | too long +10, bytes in bad frames +15,220 - ten times 1,522 | |
| after, the limit put back | 10 sent, 10 answered |
The ten long frames never reached the 136's host; the switch's own count is the only place they show.
What it does not mean¶
- The ports not on the switch have no such row: the XGS 136's labels 9 to 12 and the XGS 3300's F1 and F2 and its expansion module. Their counters are the coprocessor's MACs', not read yet.
- One kind of error, made on purpose. A bad checksum or a short frame takes a fault on the wire; those counters are read the same way and stayed at 0.
- The section on the page is not photographed yet: the appliances' GUI asks for a login.
