Bridged connections in hardware, measured on the XGS 3300 and the XGS 136, 2026-10-24

Discovery 9 of the discoveries, taken from the source to a product - and a fault found on the way (723). A connection a bridge carries - two machines on two ports of one bridge, talking to each other - was made into a flow as if the appliance routed it: its next hop came from the routing table, and the microflows rewrote both MACs and lowered the TTL. On the XGS 3300 that sent such a connection's frames out of the WAN port when the bridge had no address, and rewrote every frame when it had one; on the XGS 136 it was not made at all, and the host's bridge carried every frame. Both drivers now make it a bridged flow: each direction leaves by the port the other direction comes in on, and the fast path's bridge control rewrites nothing (USFP_BRCTL_*: OCTEP_BRCTL_BRIDGED, NPURPC_BRCTL_BRIDGED, where routed connections keep ..._ROUTED).

The MACs in the photographs are named, not printed: a MAC identifies one unit, so the lab's tools print whose it is (the first XGS 3300, the WAN's gateway, ...).

On the XGS 3300

Its A4 and Port8 made members of one bridge, bridge1, at run time. The first XGS 3300 and the XGS 136, each given an address of one subnet, IPv4 and IPv6, on one segment through it. A 15-second TCP stream from the first to the second, read on the second XGS 3300 - pf's connection, the driver's entry for it and the next hop each direction names - and at both ends with tcpdump: whose MAC each frame arrives from, and its TTL, which a bridge changes neither of. Before the change with octep.ko 0fec828d; after it with 0db1fe23 (images/deploy/lab-bridged.sh).

before: made as routed after: made bridged
the bridge with no address both directions' next hop the WAN's gateway, out of the WAN port; 0 MB reached the XGS 136 in 15 seconds made bridged: each direction out of the other's port, the frames from the sender's own MAC with TTL 64 both ways; 997 Mbit/s, the host's bridge taking 142 frames
the bridge with an address 997 Mbit/s, but every frame from the bridge's MAC with its TTL lowered (63 for 64), both ways the same: bridged, nothing rewritten, 997 Mbit/s; 6,788 frames through the host's bridge
IPv6 - bridged, the hop limit 64 both ways; 975 Mbit/s, 811 frames through the host's bridge
a connection the XGS 3300 ROUTES through the same two ports - still routed, as it must be: the frames from the second XGS 3300's ports with the TTL lowered; 997 Mbit/s, none through the bridge
dp.bridge_flows 0 - left to the host's bridge, which takes 414,953 frames in the 15 seconds

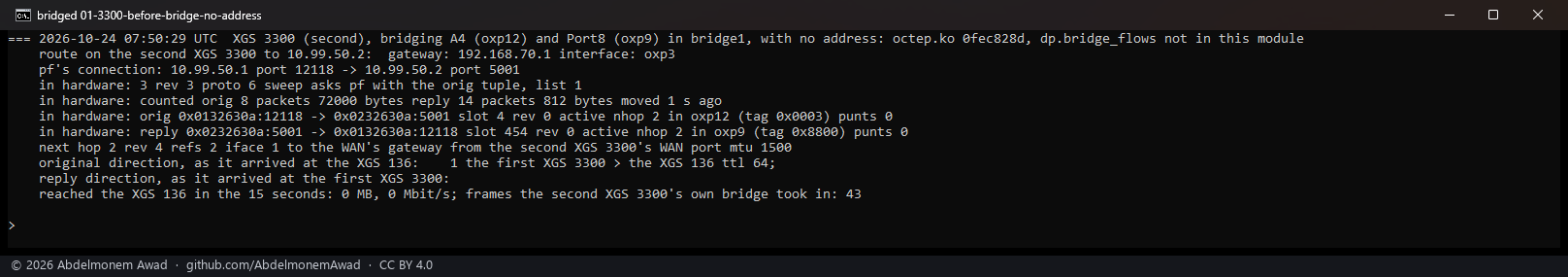

Before: the bridge with no address - both directions given the WAN's gateway as their next hop, nothing reached the XGS 136

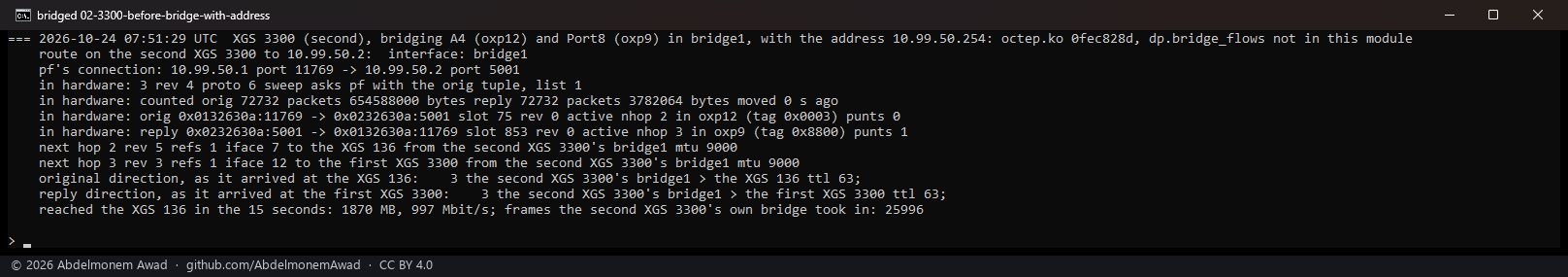

Before: the bridge with an address - delivered, but every frame from the bridge's MAC with its TTL lowered, both ways

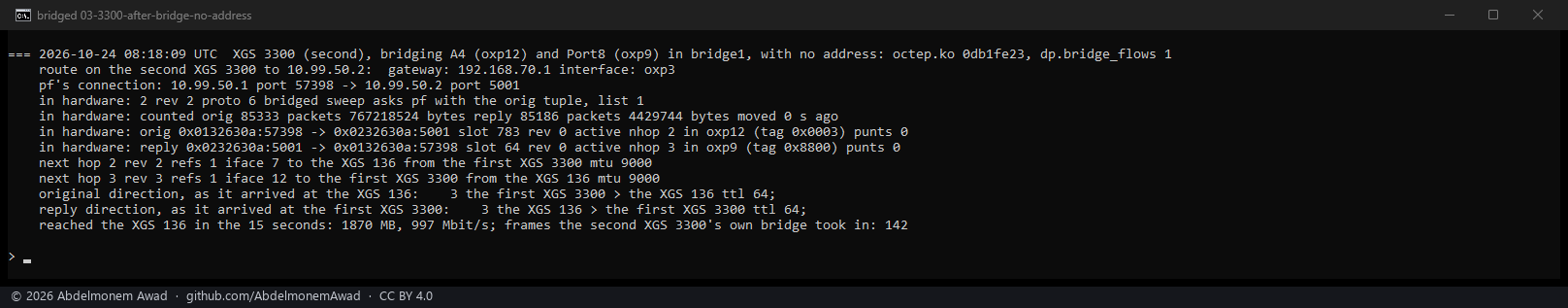

After: the bridge with no address - made bridged, each direction out of the other's port, the frames from the sender's MAC with TTL 64 both ways

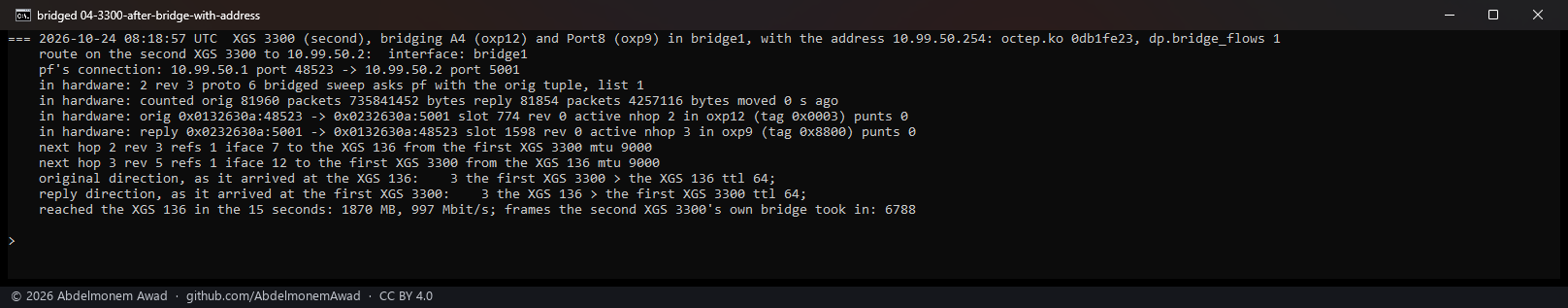

After: the bridge with an address - bridged the same way

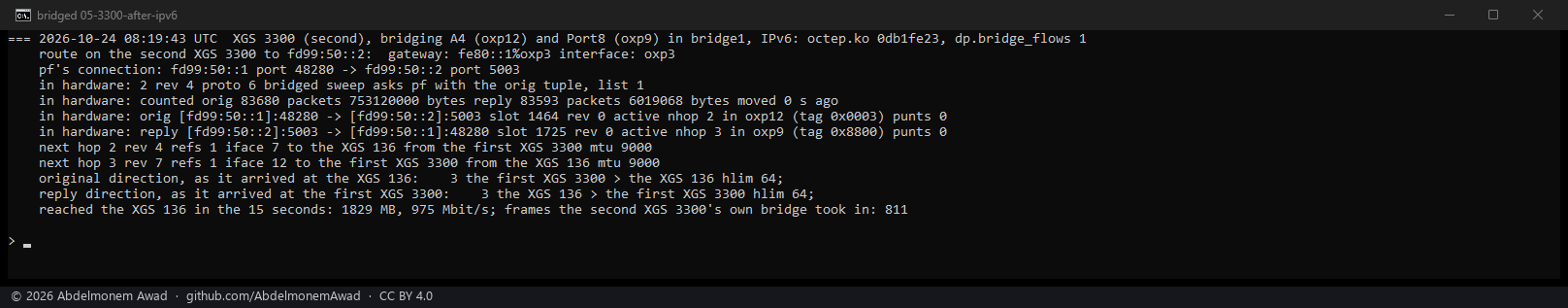

After: IPv6 across the bridge - bridged, the hop limit 64 both ways

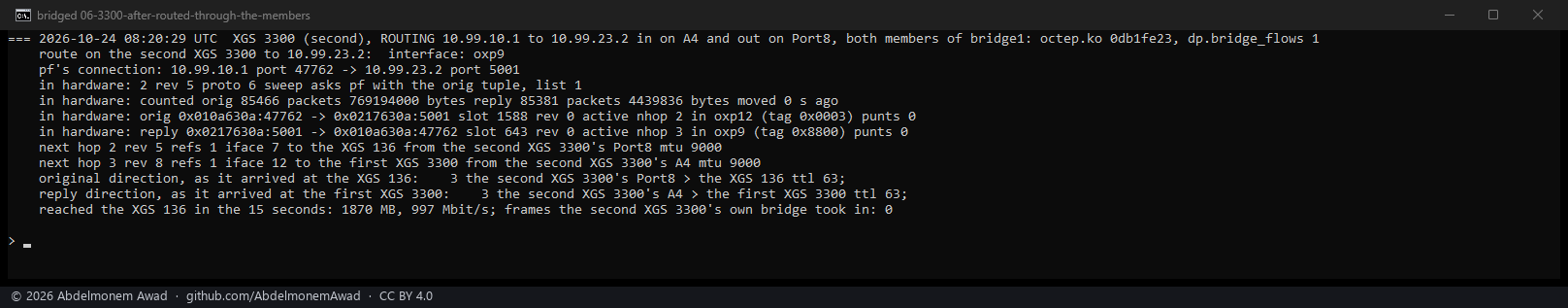

After: a connection the XGS 3300 routes through the same two member ports - still routed, its frames from the ports' own MACs with the TTL lowered

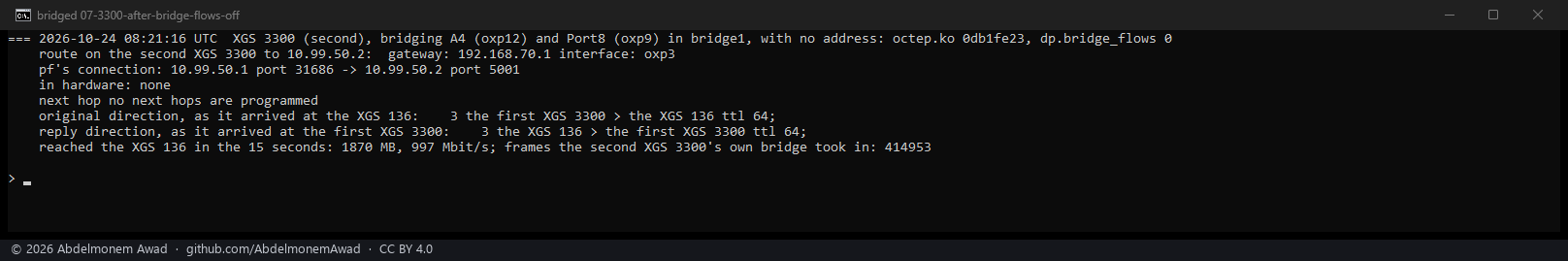

After, dp.bridge_flows 0: nothing in hardware, the host's bridge carries the connection

On the XGS 136

Its LAN bridge, bridge0: the bench PC on Port3, and the second XGS 3300 on Port8, which joined the bridge at run time, its Port8 given 192.168.1.250 and its route to the PC put over Port8. An iperf3 stream from the PC, read at the second XGS 3300 - the original direction only; the reply arrives at the PC, which has no capture here. Before the change with npuep.ko a7b6b451; after it with 4efe09fb (images/deploy/lab-bridged-136.sh). The bridge's MTU is 1500, so these are 1,500-byte frames.

in hardware frames the 136's own bridge took in, 12 seconds at the second XGS 3300
before none 1,933,880 938 Mbit/s, the PC's MAC, TTL 128
after both of iperf3's connections, bridged - 337,463 and 337,526 frames counted in the first five seconds 145,973 938 Mbit/s, the PC's MAC, TTL 128
after, flow.bridge_flows 0 none 1,928,065 934 Mbit/s

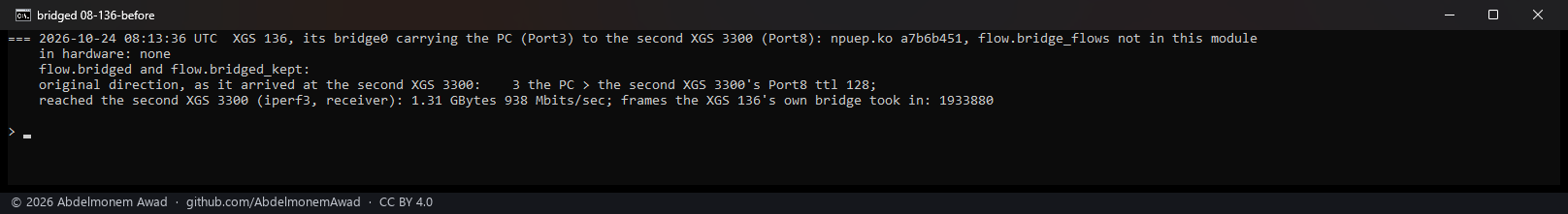

Before: the XGS 136's bridge carried every frame of the connection itself

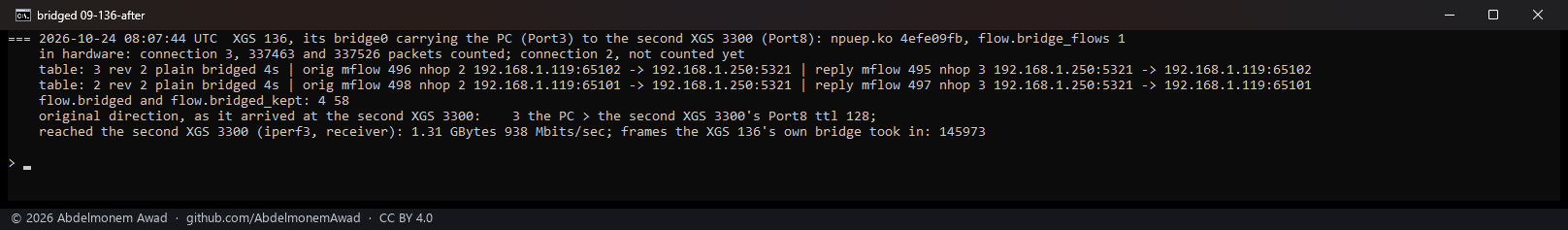

After: both of iperf3's connections made bridged, the frames from the PC's own MAC with its TTL, the host's bridge taking a fraction of them

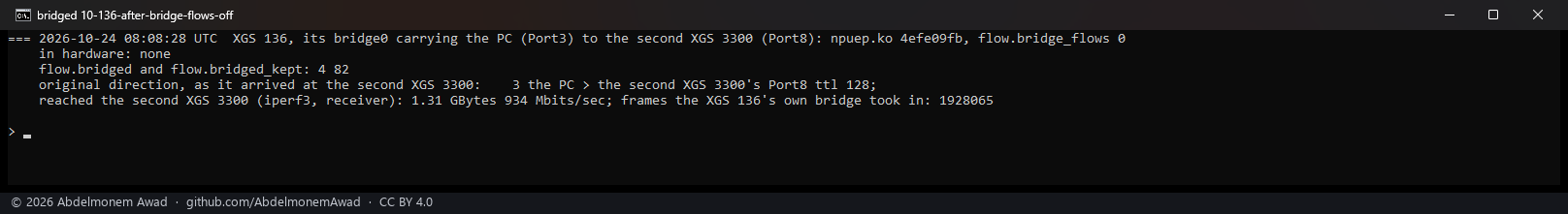

After, flow.bridge_flows 0: the host's bridge carries the connection, as before

How a bridged connection is told from a routed one

By the frame itself: the punted frame's destination MAC, which the receive path now keeps with each candidate. A frame for the host carries one of the host's own MACs - an interface's, a bridge's, or a CARP or VRRP group's - and the host routes it; a frame a bridge carries past the host carries the other machine's. A connection is made bridged when the frame in hand is the second kind and arrives on a member of a bridge, and the other direction's frame is the second kind too and arrives on another member of the same bridge (octep_dp_frame_bridged, octep_ports_one_bridge, and the XGS 136 driver's npuep_* of the same names). Its next hop is the port the other direction comes in on - where the bridge has learned the far end is - named with the frame's own two MACs, which the bridge control then leaves alone (octep_nhop_bridged, npuep_nhop_bridged). The route plays no part. A connection routed through the same two member ports is still routed, its MACs rewritten and its TTL lowered, as a router must.

A port's if_bridge is the port's own entry in its bridge, one for each member, not the bridge - two members of one bridge never compared equal by it, and the first build refused every bridged connection for that. The bridge is the entry's bif_sc; the entry's layout is if_bridge.c's own and in no header, so its head is restated in each driver and checked at every use (its bif_ifp must be the port), and a layout that does not match makes the answer "no bridge" - the connection stays with the host's bridge.

What stays with the host's bridge

A connection whose two directions do not both cross the bridge: measured on the XGS 136 with the second XGS 3300 answering by its old route, through the XGS 136 itself - the PC's frames bridged, the replies addressed to the XGS 136 and routed by it. The driver says so and leaves it to the host.

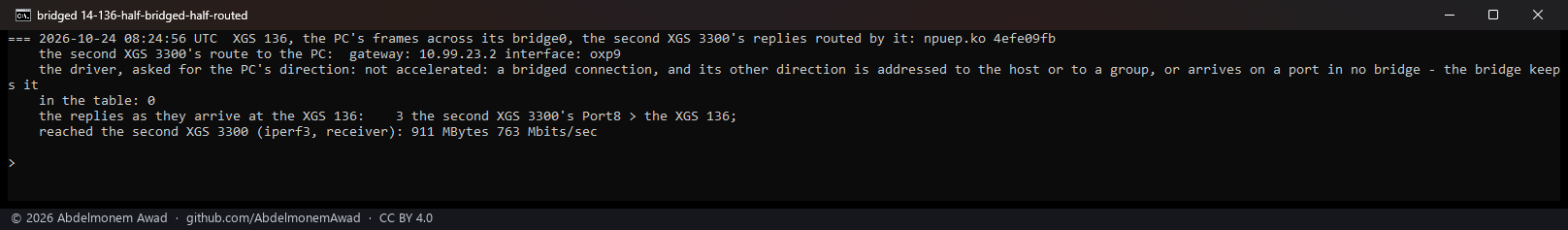

Half bridged, half routed: the replies addressed to the XGS 136 itself; the driver keeps the connection with the host and says why

Also one whose frames go to a group - a broadcast or a multicast, which the bridge sends to every port; one pf translates or an IPsec policy covers; one whose other direction has not been seen yet, since nothing else says which port the far end is on; and every one while dp.bridge_flows or flow.bridge_flows is 0. Each refusal is counted (dp.flow_bridged_kept, flow.bridged_kept), an attempt each.

Taken out when pf lets go

A bridged connection in hardware whose pf states are killed is taken out within the sweep, and pf then drops what still comes, as for any connection. The states were killed one by one by their id: pfctl -k <host> -k <host> killed none of these states on OPNsense 26.7, while pfctl -k <host> alone did.

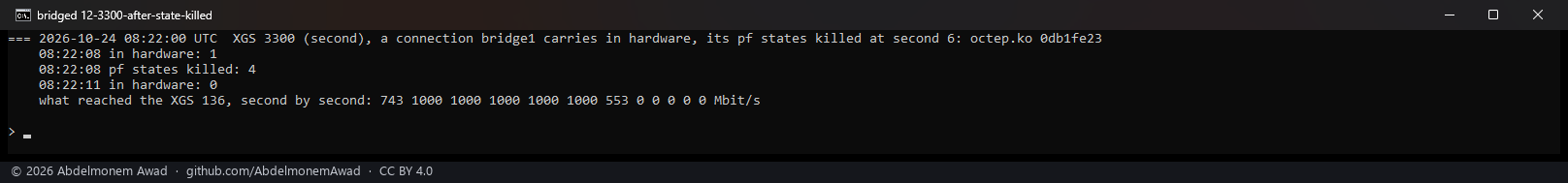

The XGS 3300: the connection in hardware, its four states killed at second 6, out of hardware three seconds later, the stream at 0

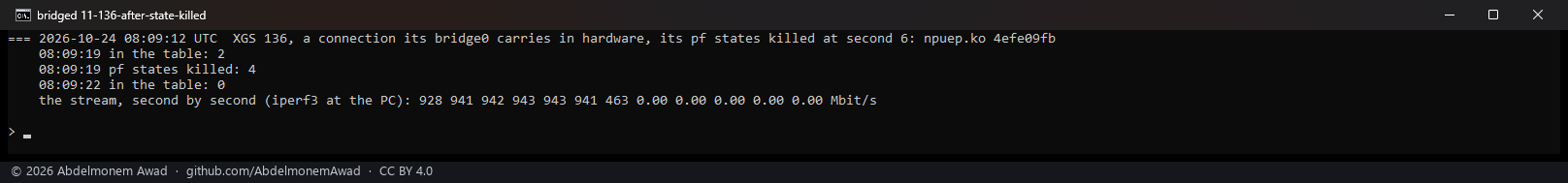

The XGS 136: two connections in the table, their four states killed at second 6, none three seconds later, the stream at 0

Given back at small frames

At 1,500-byte frames - about 82,000 a second at a gigabit - the fast path gives a connection back to the host now and then, and the driver revives it in place; until it does, the frames cross the host. That is the fast path's, not the bridge's: with the sender's MTU at 1500, a bridged stream and a routed one through the same ports were each revived 22 times in ten seconds, on the XGS 3300. The runs above with 9,000-byte frames saw almost none, which is why their host bridge took a few hundred frames; on the XGS 136, whose bridge has an MTU of 1500, its 145,973 frames are the same give-backs.

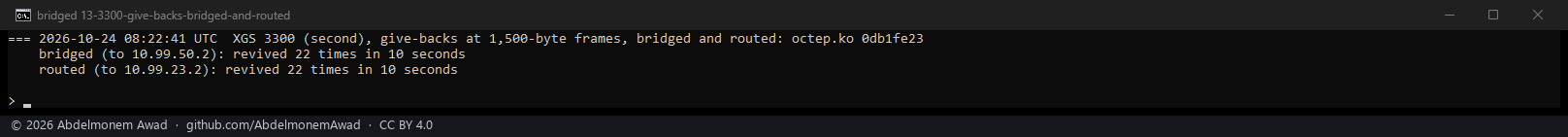

Give-backs at 1,500-byte frames: a bridged stream and a routed one, each revived 22 times in ten seconds

On the page

XGS: Flows marks such a connection bridged in its Connection column, its tooltip saying its frames keep their own MACs and TTL. flows.py reads the mark from both drivers' tables; on the XGS 136 the word sits inside the one line its pattern matches, which is given room for it. Read on the XGS 136 through the configd action the page uses: both connections, bridged.

The instruments

  • dev.octep.0.dp.bridge_flows and dev.npuep.0.flow.bridge_flows: 1, the default, makes bridged connections bridged flows; 0 leaves every one to the host's bridge.
  • dev.octep.0.dp.flow_bridged and dev.npuep.0.flow.bridged: connections made bridged; dp.flow_bridged_kept and flow.bridged_kept: attempts refused. Why one is refused, asked by hand (dp.accelerate, flow.accelerate), names the check: one port, the other direction addressed to the host or a group, two bridges.
  • The driver's tables (dp.flow_table, flow.flows) mark a bridged connection bridged.
