IPsec over IPv6 on the XGS 136's engine, outside and inside. Measured, 2026-10-20

Yes, both. A tunnel whose two ends are IPv6 addresses, and IPv6 packets inside it, are taken by the XGS 136's crypto engine in both directions: through the lab tunnel to the second XGS 3300, 951 to 982 Mbit/s with IPv4 inside and 962 to 979 with IPv6 inside, each way, at the gigabit link's rate; with AES-GCM and with AES-CBC and an HMAC; every frame decrypted on the engine and handed up, none refused.

The XGS 3300 has carried both since 2026-10-12 (the outer header can be IPv6, IPv6 inside the tunnel). This is the same work on the other family's driver, measured on its own.

What the driver does now

npuipsec.c, the OCTEON TX driver's handling brought over:

• The association. An association whose ends are IPv6 is offered and taken like an IPv4 one. SA_ADD carries all sixteen bytes of each address and option bit 21 (opt.ipv6, the vendor's "Ena/Dis Outbnd IPv6 Header format"); the record keeps both addresses.
• What leaves. The envelope gets a 40-byte IPv6 outer header (ethertype 0x86DD, payload length, next header ESP or the NAT-T UDP, hop limit 64), and the next hop of the far end comes from the IPv6 resolver (fib6_lookup, nd6_resolve). The trailer's next-header byte names the inner packet's family - IPv4 or IPv6 - in both of the kernel's doors: the association's output step (a forwarded packet, or the host's own when it is not routed out of the tunnel's port) and the kernel's offload path (the host's own, routed out of it). An IPv6 packet too large for the tunnel is not fragmented: the sender is told the size that fits (ICMPv6 "packet too big"), as a router must (RFC 8200 4.5) - written, not exercised here (below).
• What arrives. The termination takes a frame with an IPv6 outer header (next header at its sixth byte, ESP at +40), asks the kernel for the association by its in6 destination, and hands an IPv6 inner packet to IPv6 input, past enc0's capture and its IPv6 rules. ipsec.rx_v6 counts those frames, and the receive: line of ipsec.sas prints it.

Before this the driver took IPv4 only: an association with IPv6 ends was offered and declined, and the kernel encrypted it in software.

How it was measured

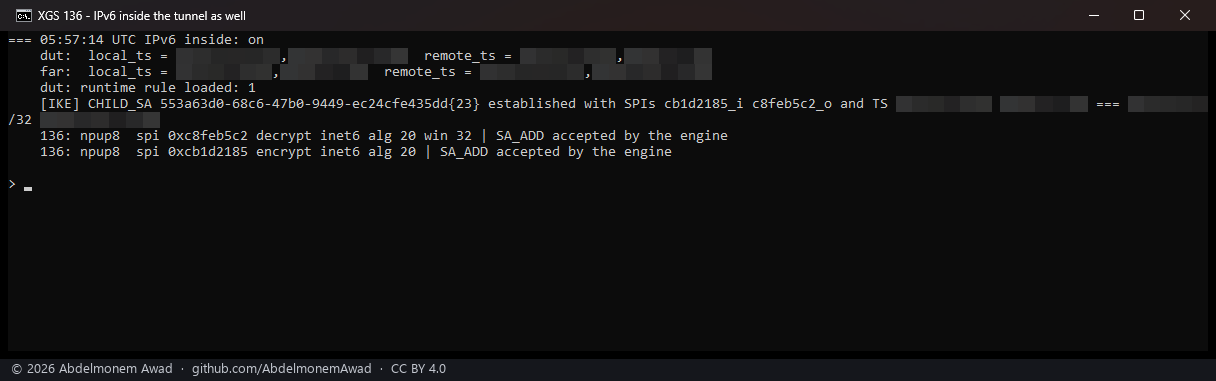

The lab tunnel between the XGS 136 (its Port8) and the second XGS 3300, AES-GCM-16-256, the bench PC on the 3300's side. Both ends already had lab IPv6 addresses on that link and a rule passing IPv6 arriving on it. images/deploy/lab-136-v6.sh (not in this repository) changes the tunnel by hand in swanctl.conf at both ends and loads it - the tunnel's addresses to the IPv6 ones, the child's selectors widened by an IPv6 pair, the ESP proposal - and has the 3300 make the tunnel again; for IPv6 inside, a runtime rule on the 136 passes that pair on enc0, the 136's IPsec rules being IPv4 only. Each run is one stream each way with iperf3, the 136's counters and the 3300's kernel ESP counters read before and after, photographed. IPv4 inside is the PC to the 136; IPv6 inside is the 3300 itself to the 136, the PC being on both sides of the tunnel at once for IPv6. At the end both files were put back and the 136's rules reloaded.

The driver is the build that ships with this change, npuep.ko md5 0d650d4e (253,552 bytes), compiled on the appliance with no warning, every symbol it needs found in the kernel.

Results

Stream rates in Mbit/s, 15 seconds each; "decrypting" is into the 136, "encrypting" out of it. The 136's counters are the changes over each run.

run	outer	inside	the 136 decrypting	the 136 encrypting	the 136's engine counted

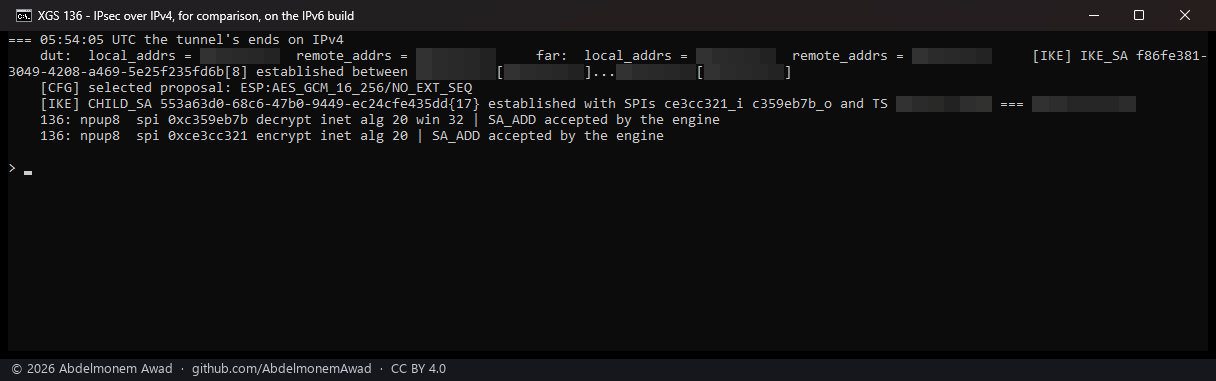

for comparison	IPv4	IPv4	396 (see below)	955	rx_done +168,381, tx_accel +297,233

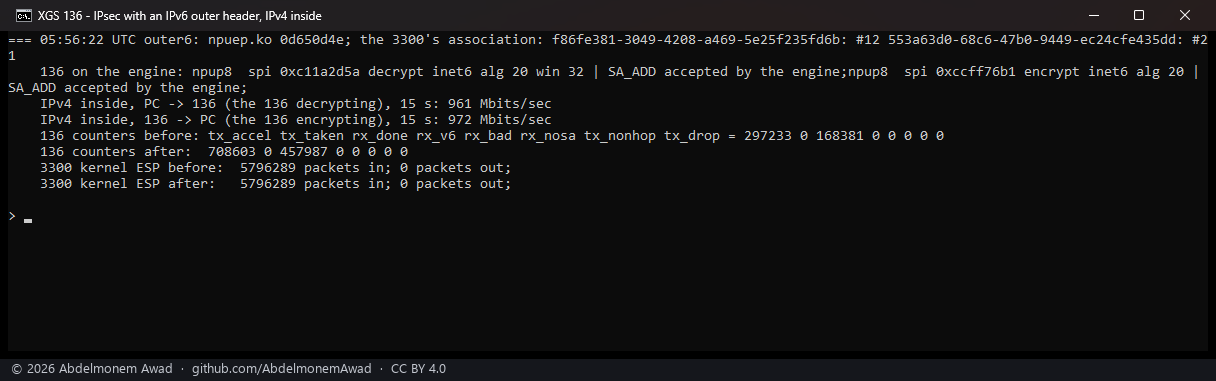

IPv6 outside	IPv6	IPv4	961	972	rx_done +289,606, tx_accel +411,370

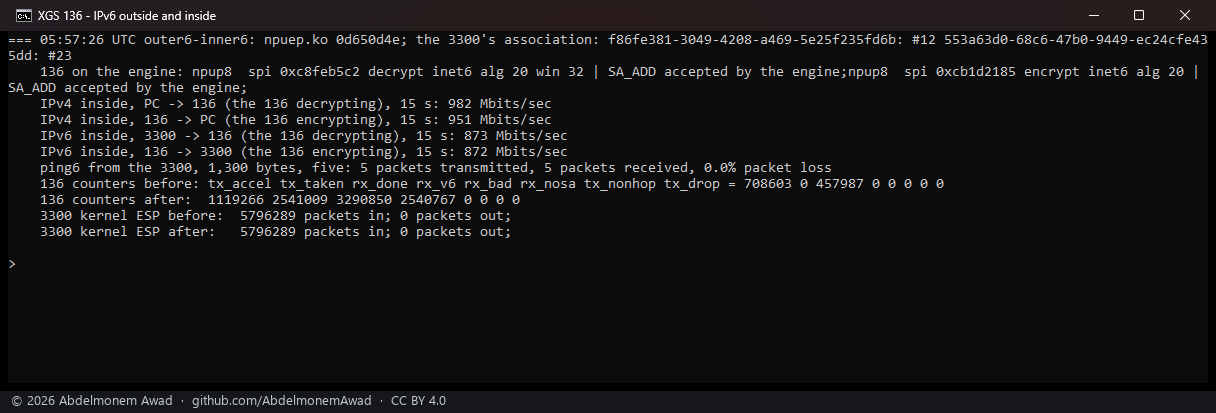

IPv6 outside and inside	IPv6	IPv4 / IPv6	982 / 873	951 / 872	rx_v6 +2,540,767; the 136's own IPv6 packets through the output step, tx_taken +2,541,009

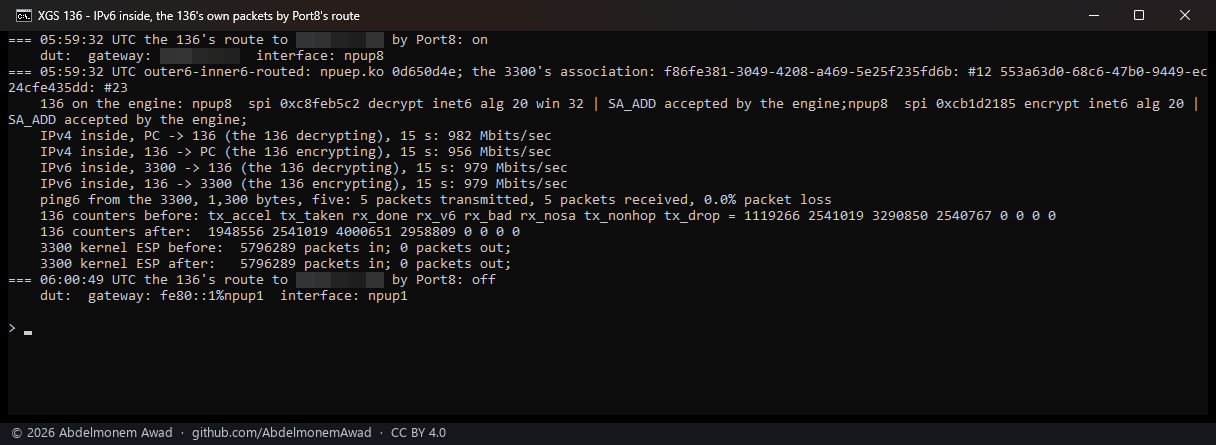

the same, the 136's route by Port8	IPv6	IPv4 / IPv6	982 / 979	956 / 979	rx_v6 +418,042; through the offload path, tx_accel +829,290, tx_taken +0

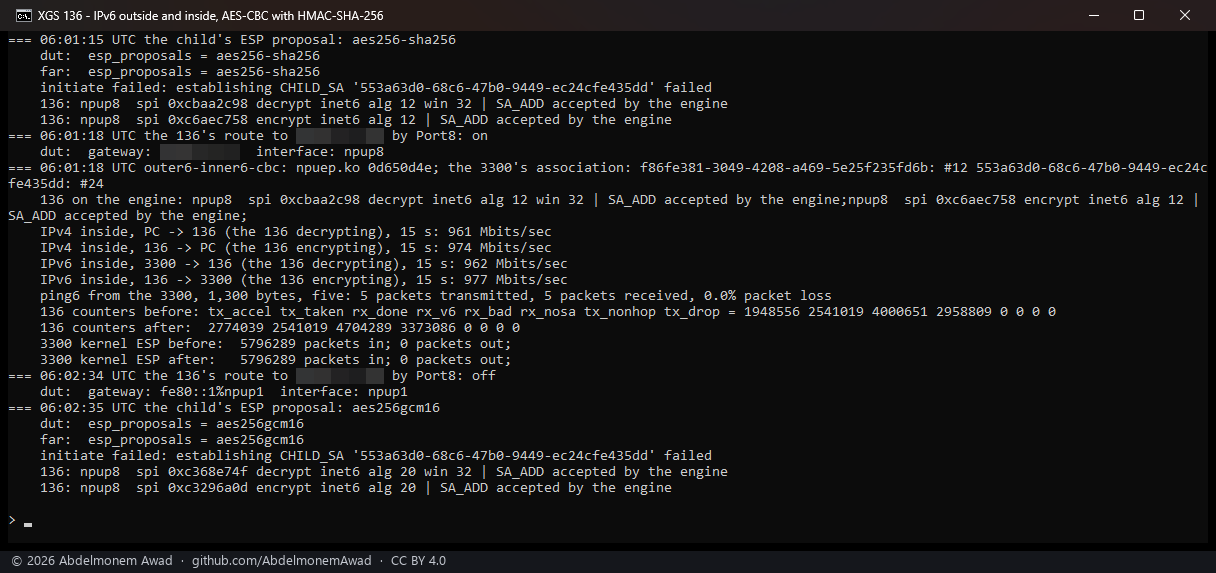

AES-CBC-256 with HMAC-SHA-256	IPv6	IPv4 / IPv6	961 / 962	974 / 977	rx_v6 +414,277, tx_accel +825,483

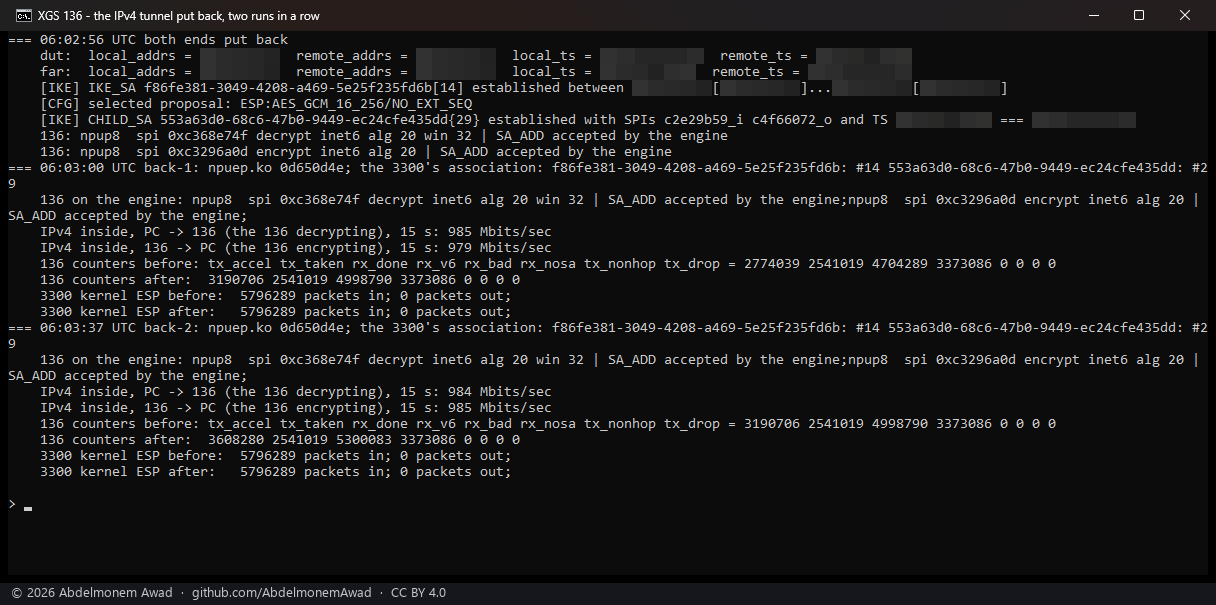

the IPv4 tunnel put back, two runs	IPv4	IPv4	985, 984	979, 985	rx_done +294,501 and +301,293

• rx_bad, rx_nosa, tx_nonhop and tx_drop stayed 0 through every run, and five 1,300-byte IPv6 pings from the 3300 were answered in each run with IPv6 inside.

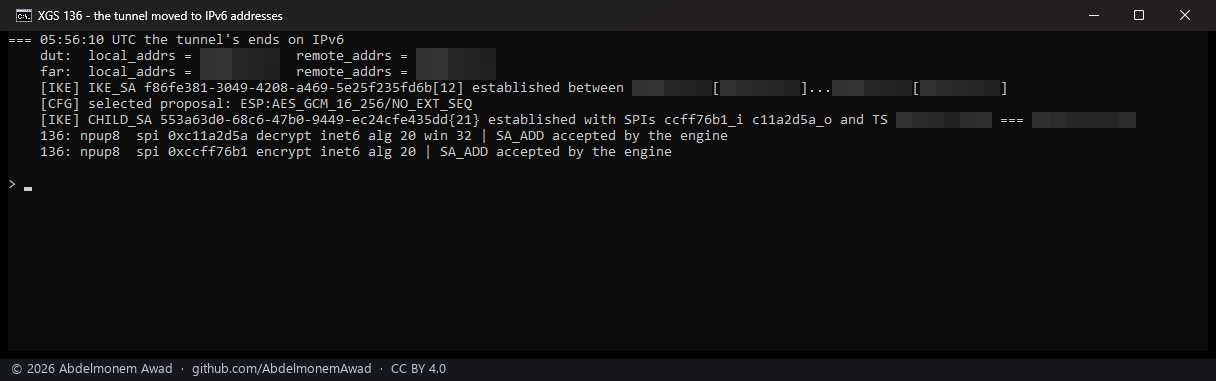

• The 136's associations read inet6 on the engine with the tunnel moved, SA_ADD accepted by the engine both ways, with GCM (alg 20) and with CBC (alg 12).
• The 3300's kernel ESP counters did not move (5,796,289 packets in, as at the start): its engine took its side of the IPv6 tunnel too.
• 873 and 979 with IPv6 inside are the same engine. In the first IPv6-inside run the 136's route to the 3300's inner network was its default, out of another port with a 1,500-byte MTU, so its connection used segments sized for that and its packets left by the output step; with a route by Port8 (MTU 9000) the same two streams carried fewer, larger segments - 418,042 frames decrypted in place of 2,540,767 - at the link's rate, through the offload path. Both doors were measured that way.

What it does not mean

• The 396 is not IPv4's. It was the first stream into the 136 since its boot, two hours earlier; every later one, on the IPv4 tunnel put back as well, carried 961 to 985. The two slow runs on the ESN page were also each the first stream of a session after a boot. It is issue 531, and these runs say it goes with the first stream after a boot rather than with the minutes after it.
• Not the PC's IPv6 through the tunnel. The PC has an IPv6 address on each side of the tunnel, so its IPv6 never needs it; IPv6 inside was between the two appliances themselves. A packet forwarded through the 136 into the tunnel takes the same output step the 136's own took here, but no forwarded IPv6 packet was sent, and so the "packet too big" answer was not exercised either.
• Not NAT-T or extended sequence numbers over IPv6. Each is measured over IPv4 (NAT-T on the ARMADA, ESN); together with an IPv6 outer header they were not run.
• The first attempt to move the tunnel failed, and why. The lab tool's first version sent its sed commands through echo in a shell that reads \1 as a control byte, which replaced the address lines of both ends' swanctl.conf with two bytes each. The copies kept before anything were put back, the tool now uses printf, and the second attempt is the one photographed. The log keeps both.

All the numbers are in the run's log, measurements/v6-136-2026-10-20.log (kept with the bench, not in this repository); the lab addresses in six of the photographs are blurred.
