A blind reset into a connection in hardware, judged by pf again, measured, 2026-10-24

Issue 679, the part still open: a FIN or a RST of a connection in hardware. The fast path hands every one to the host (TO_KN_TCP_FIN_SYN_RST), and pf's state for a connection in hardware is sloppy - it no longer sees the connection's segments, so it cannot judge their numbers - and a sloppy state takes a reset at its word. Measured on both appliances: a reset with its sequence number 64 MiB outside the window - what a blind reset looks like - turned the connection's pf states to TIME_WAIT, and an idle connection was dead a hundred seconds later, its next line never arriving: a state in TIME_WAIT expires at tcp.closed, 90 seconds after the connection's last frame, where an established one lasts a day.

Both drivers now hold such a frame, for a connection whose window the fast path checks, read the connection's numbers from the fast path - CONN_GET_FP_TCP_STATE, which leaves it where it is, in hardware or given back - give them to pf and clear the sloppy mark, as a take-back does (octep_pf_handback, npuep_pf_handback), and hand the frame up: pf judges it as it judges any frame of a connection it follows, and refuses a blind reset. Then the mark goes back on. dp.closing_check and flow.closing_check, 1 by default; 0 hands the frame up at once, as before.

A blind reset into an idle connection

One TCP connection, a line every second for 15 seconds - made in hardware - with a RST injected at second 8 from the far end, as that end would send it but with the sequence 64 MiB ahead (images/deploy/tcp-inject.py, by BPF, past its own pf); then 100 seconds idle; then one line more. Read on the appliance in the middle: pf's states for the connection and its state-mismatch count; at the far end, the lines that arrived.

  • XGS 136 (npuep.ko fb3de827): the bench PC through it to the second XGS 3300 behind its Port8 (images/deploy/lab-679-idle.sh).
  • XGS 3300 (octep.ko 717c6808): the PC on its F1 through it to the XGS 136, by VLAN 60 on its Port8 - the way to the XGS 136's own Port8 address is inside the lab's IPsec tunnel, whose connections are not checked by window (images/deploy/lab-679-idle-3300.sh). A VLAN connection in hardware, then (discovery 10).
the check pf's states after the RST state-mismatch after 97 seconds idle the line after the idle time
XGS 136 0, as before TIME_WAIT +0 TIME_WAIT, expiring never arrived
XGS 136 1 ESTABLISHED +1, the RST refused ESTABLISHED arrived
XGS 3300 0, as before TIME_WAIT +0 gone never arrived
XGS 3300 1 ESTABLISHED +1, the RST refused ESTABLISHED arrived

XGS 136, the check off: the blind RST taken, both states TIME_WAIT, the line after the idle time never arrives

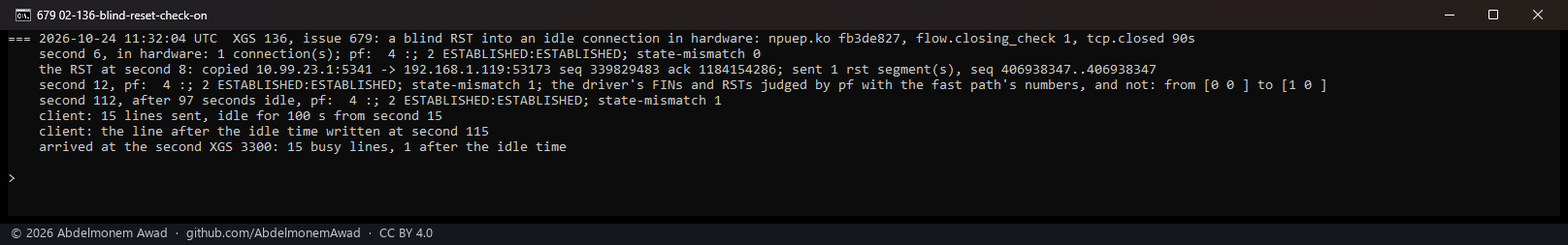

XGS 136, the check on: the RST refused, state-mismatch +1, the states ESTABLISHED through the idle time, the line arrives

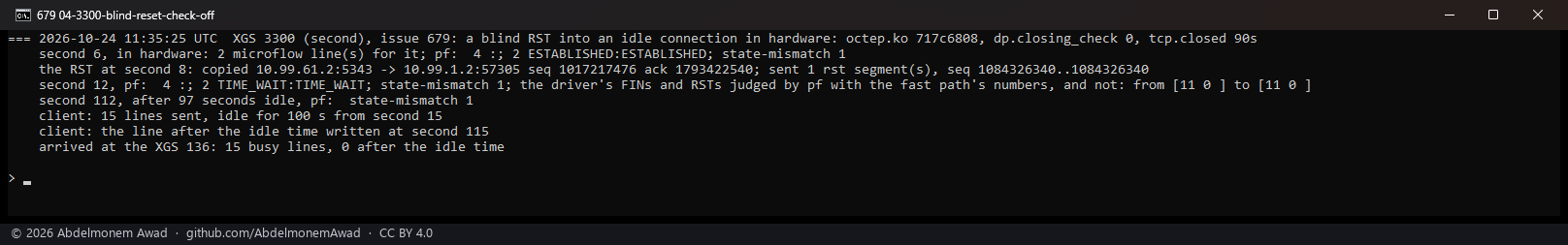

XGS 3300, the check off: the blind RST taken, the states gone after the idle time, the line never arrives

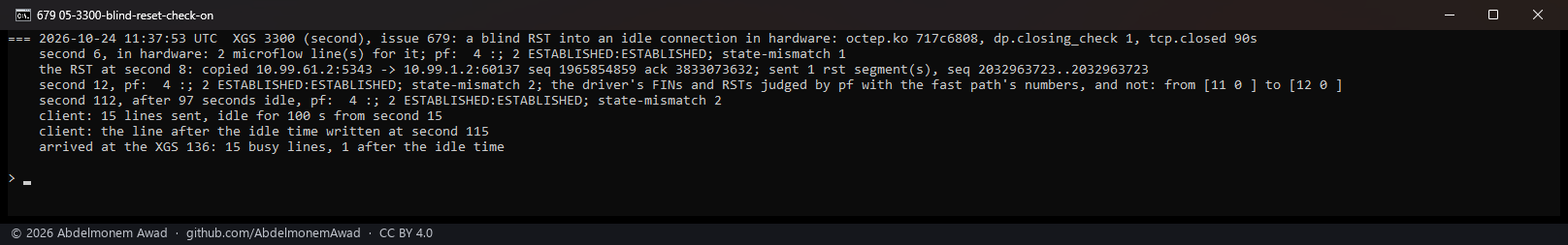

XGS 3300, the check on: the RST refused, the states ESTABLISHED, the line arrives

With a stream running instead of an idle connection (images/deploy/lab-679-rst.sh, npuep.ko 4ee1d061, before the change): the same TIME_WAIT after the RST, and the stream went on for its 130 seconds - the driver gives pf what the coprocessor carried, which keeps a state from expiring while the connection moves. It is the connection that goes quiet that ends.

Twenty connections ending at once

FINs and RSTs come in bursts: twenty iperf3 connections through the XGS 136 ending together sent the host 919 of them in the first build, most of them resets answering data still on its way, and its queue of 64 handed 411 up unjudged. The build measured reads the numbers once for each connection in what is waiting and holds 256 (images/deploy/lab-679-burst.sh, npuep.ko fb3de827):

FINs and RSTs judged with the fast path's numbers handed up without them pf's state-mismatch the streams
the PC sends 897 0 +0 940 Mbit/s, ended, the states closing
the far side sends 39 0 +0 943 Mbit/s, ended, the states closing

No legitimate FIN or RST was refused: state-mismatch did not move, and every connection's states went to FIN_WAIT and TIME_WAIT as they end.

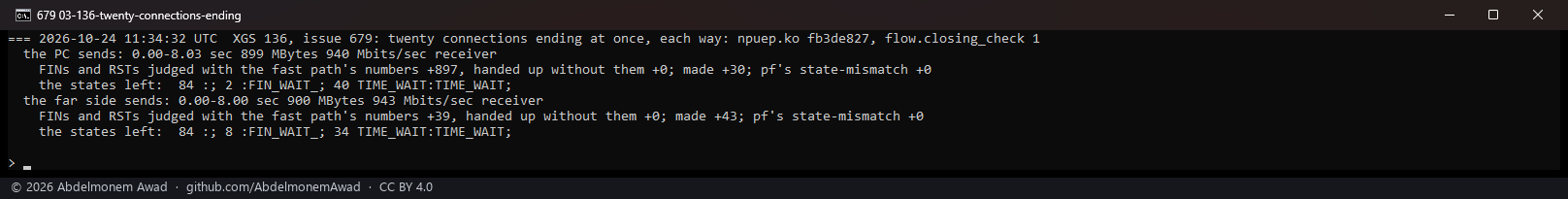

Twenty connections ending at once each way through the XGS 136: 897 and 39 FINs and RSTs judged with the fast path's numbers, none handed up without them, state-mismatch +0

What it does not cover

  • A connection the fast path has given back and the driver revived goes back unchecked (tcp_revive 0, as tcp-window-2026-10-22.md says), and the hold is for a connection whose window is checked - so its FINs and RSTs go up as before, to a sloppy state. On a busy link that is much of a long connection's life. Whether the fast path's numbers for such a connection are good enough for pf to judge by is not measured; it stays open in 679.
  • A tunnel's connection is not checked by window, and is not held.
  • A frame that cannot wait - the queue full, the numbers not had - goes up as before and is counted (dp.closing_passed, flow.closing_passed).

The instruments

  • dev.octep.0.dp.closing_check and dev.npuep.0.flow.closing_check: 1, the default, holds a FIN or a RST of a connection in hardware whose window is checked until pf has the fast path's numbers; 0 hands it up at once.
  • dp.closing_checked, flow.closing_checked: FINs and RSTs pf judged with the fast path's numbers; dp.closing_passed, flow.closing_passed: those handed up without them.
  • pf's own state-mismatch (pfctl -si) counts the ones it refused.
