The heartbeat with the fast path. Measured, 2026-10-22

Until this, the host could not tell a coprocessor that stopped forwarding from one with nothing to forward. The vendor's own host sends its fast path a heartbeat message every five seconds and waits for it to be answered with the same sequence number; this driver counted both message types and sent neither (the discovery, 680).

Now:

• On the XGS 3300 the host asks every five seconds and the fast path answers every time, in about 130 microseconds. With no answer for 15 seconds the heartbeat is late, at 30 seconds the fast path is taken as stopped, and the first answer after either is said too - each once, in the system log. Measured by stopping the fast path's own process on the coprocessor for 45 seconds: late, then stopped, then "answers again, after 48 s without an answer", the data path through it unhurt.
• On the XGS 136 the fast path does not answer it. It reads the message - its own counters count every beat - and drops it, unanswered. The heartbeat is there, heartbeat.on 0 by default on that family.
• It begins only once the fast path runs - its RPC answered and an interface made over it. Beats sent from the moment the host's ring came up, before the coprocessor's handshake, were followed by a boot on which the fast path sent the host nothing at all; below.

What it does with a fast path taken as stopped is to say so; it does not take connections back or reload anything - that is the next step, and the question of 361 and 454. What is done when it stops, the same evening (below): it is said - the driver's lines in the system log, a problem report of its own, and the Overview's Fast path line - and, when the owner chooses so in XGS: Settings, the appliance is restarted after 2, 5 or 10 minutes without an answer, at most three times a day; off by default. Taking connections back is not what helps: every frame through the front ports goes through the fast path, so there is nothing the host could carry on its own. The vendor's host panics the box when its fast path is dead for 120 seconds (with that switched off by default) and waits five minutes after loading before its first beat.

New, dev.octep.0.heartbeat.* and dev.npuep.0.heartbeat.*, the same on both: on, period_ms (5000, the vendor's), late_ms (15000), dead_ms (30000); state - off, waiting, alive, late or dead - since_answer_ms, seq, sent, answered, unmatched (an answer carrying another sequence, one that came too late), unsent, lates, deaths, revivals, rtt_us, rtt_max_us. The modules measured: octep.ko 7937346d on the second XGS 3300, npuep.ko 925b6378 on the XGS 136.

How it was measured

Each run in a window of its own, photographed (images/deploy/lab-heartbeat-series.ps1, lab-heartbeat.sh); the text of every run, and of the ones before the series, is kept in the run log. The fast path's own counters of control messages from the host, FPCNTR_FROM_KN_PROC_CMSG and FPCNTR_FROM_KN_DROP_CMSG, are read with the counter tools (octep-fpcnt.sh, npuep-fpcnt.sh).

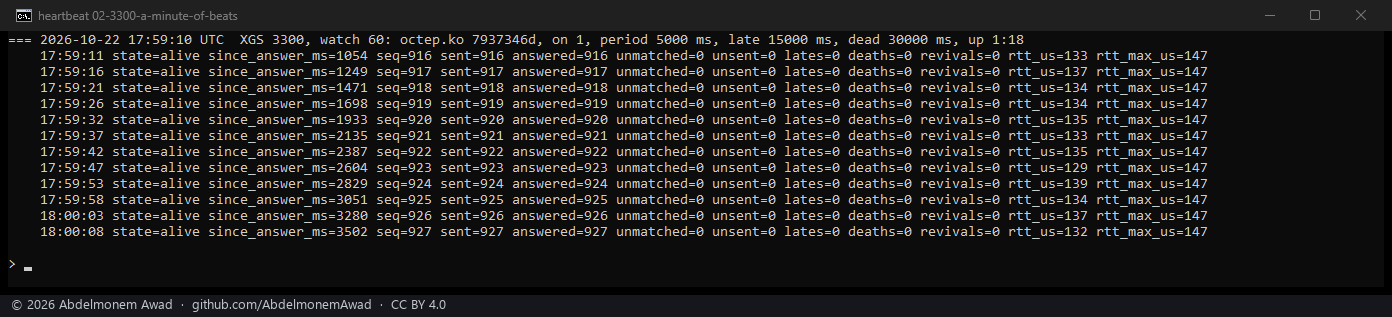

• A minute of beats: the heartbeat's counters every five seconds.

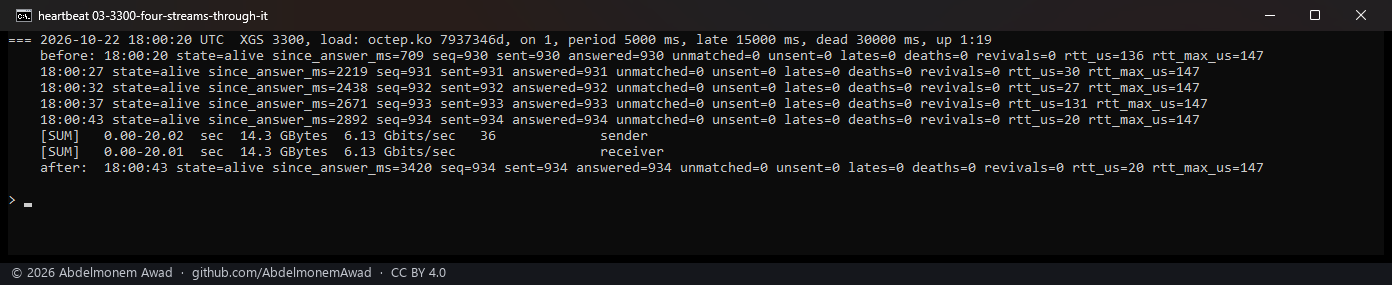

• Four streams through it: iperf3 from the PC through the second XGS 3300 to the first, four streams down for 20 seconds, the heartbeat sampled during them - then the same with the heartbeat off, to see what asking costs.
• The fast path stopped: on the coprocessor's own Linux, through its console (npu-run.sh), the fast path's process usfp is sent SIGSTOP, and SIGCONT 45 seconds later.

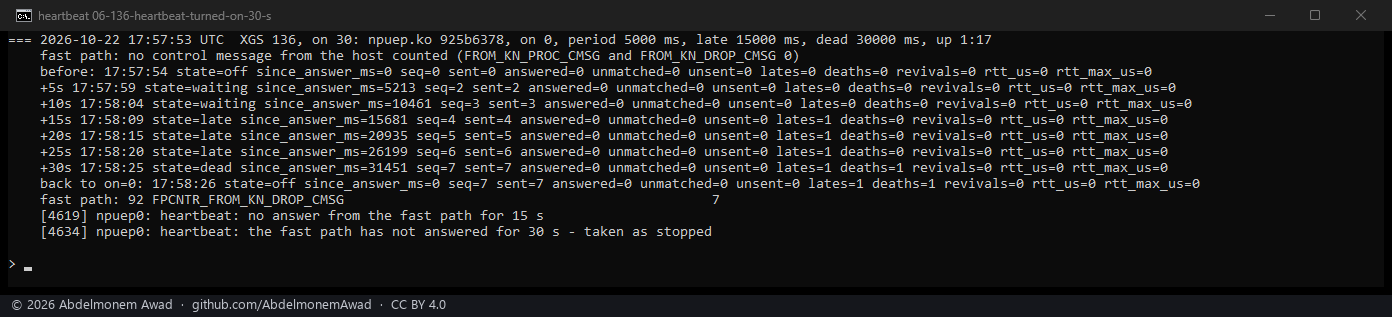

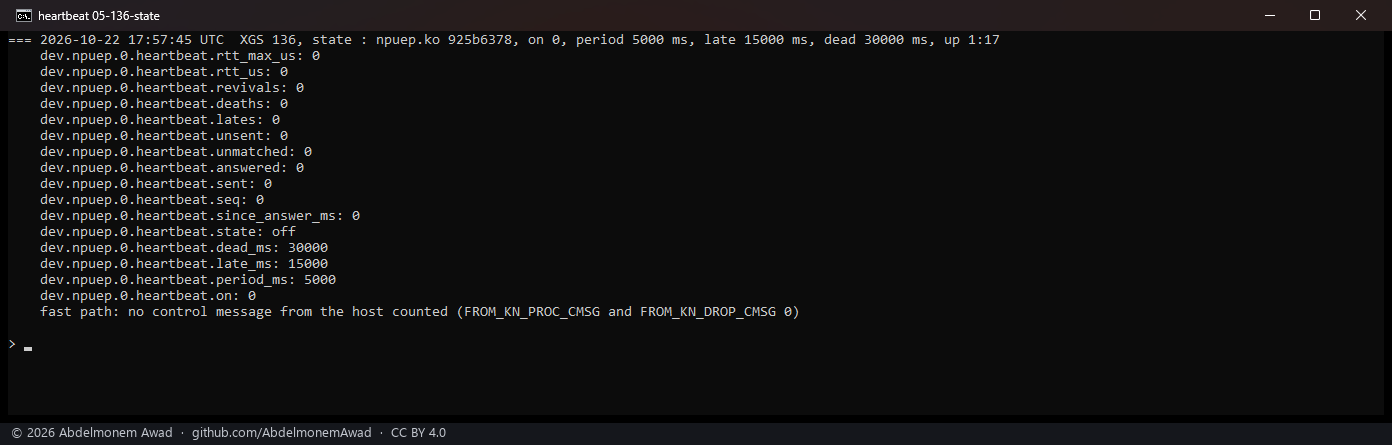

• The XGS 136: its state as installed, then heartbeat.on 1 for 30 seconds and back to 0.

The XGS 3300

	sent	answered	the fast path counted	answer
a minute, idle	11	11	every one	129-139 µs
four streams, 6.13 Gbit/s	4	4	every one	20-131 µs

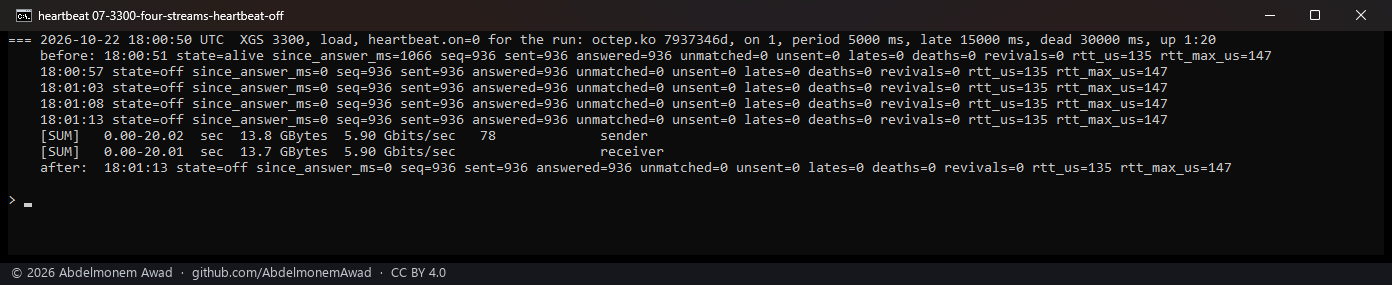

four streams, the heartbeat off	-	-	-	5.90 Gbit/s

Under load the answer comes sooner, not later - most likely because the receive path is already awake and reads it at once. The heartbeat costs the stream nothing - 6.13 Gbit/s with it, 5.90 without, both lower than the 9.91 of the window check's runs the same day for a reason that is the lab's, not the heartbeat's.

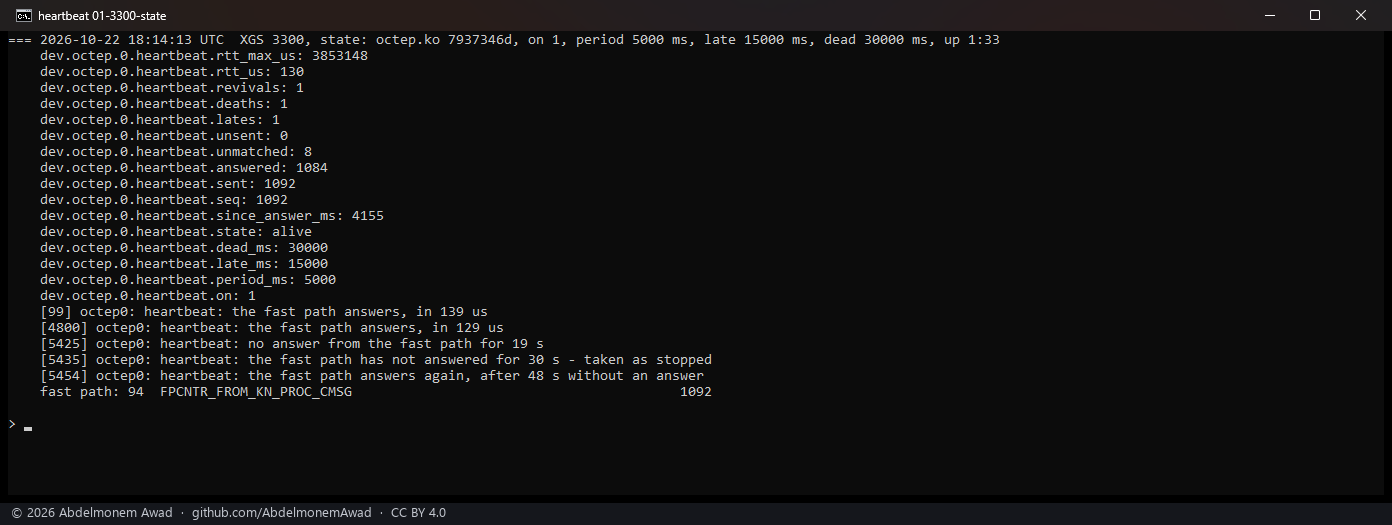

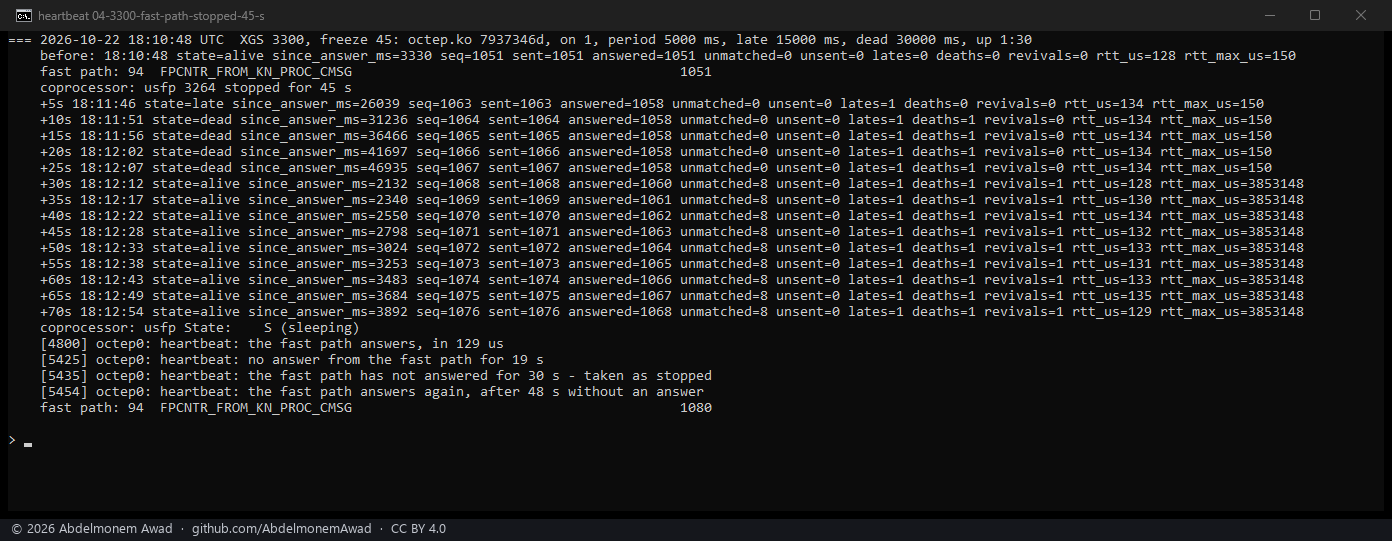

The fast path stopped

• Late after 19 seconds, not 15: the silence is judged at each beat, every five seconds, so a state is reached at the first beat past its limit.
• Taken as stopped at 30 seconds, and alive again at the first answer after the fast path went on, 48 seconds after the last one before it stopped.
• The eight beats sent while it was stopped were answered when it went on - its queue was kept - each carrying a sequence that was no longer the last one sent, so counted as unmatched, and the longest answer, rtt_max_us, is the beat sent just before it went on: 3.85 seconds.
• The data path came back with it: a ping through it after, 3 of 3; nothing else from the driver in the log.

Two earlier tries at this run did not stop anything, and are in the log: the console was busy - it is read for the first fifteen seconds of every minute by the temperature task - and the command as first written ended in & before the console helper's own ; echo, which the coprocessor's shell refused. The run above sends it between seconds 20 and 40.

The XGS 136

How it got there, with throwaway builds before the series (in the run log, not photographed):

sent as	the fast path counted	the coprocessor's log
an Ethernet frame, EtherType 0xefef, the message after it - as the XGS 3300's fast path takes it - 60 bytes	dropped, one for each beat	-
the vendor's host's own frame, to the byte: both addresses zero, 22 bytes, no padding	dropped, one for each	cmsg: unknown version 0
every byte 0x20 plus its own offset	dropped	cmsg: unknown version 35 - the version read from byte 3
the message alone, from the frame's first byte	dropped, one for each beat	- (the version accepted)
the same framing, a port rate update of no entries (type 7)	processed, one for each	-

So this fast path reads a control message from the host from the frame's first byte, with no Ethernet header in front of it - the XGS 3300's reads one behind its Ethernet header - and with that framing it processes a type it handles and drops the heartbeat's. The XGS 136's fast path does not answer the heartbeat; the driver keeps it, framed as this fast path reads a message, and off.

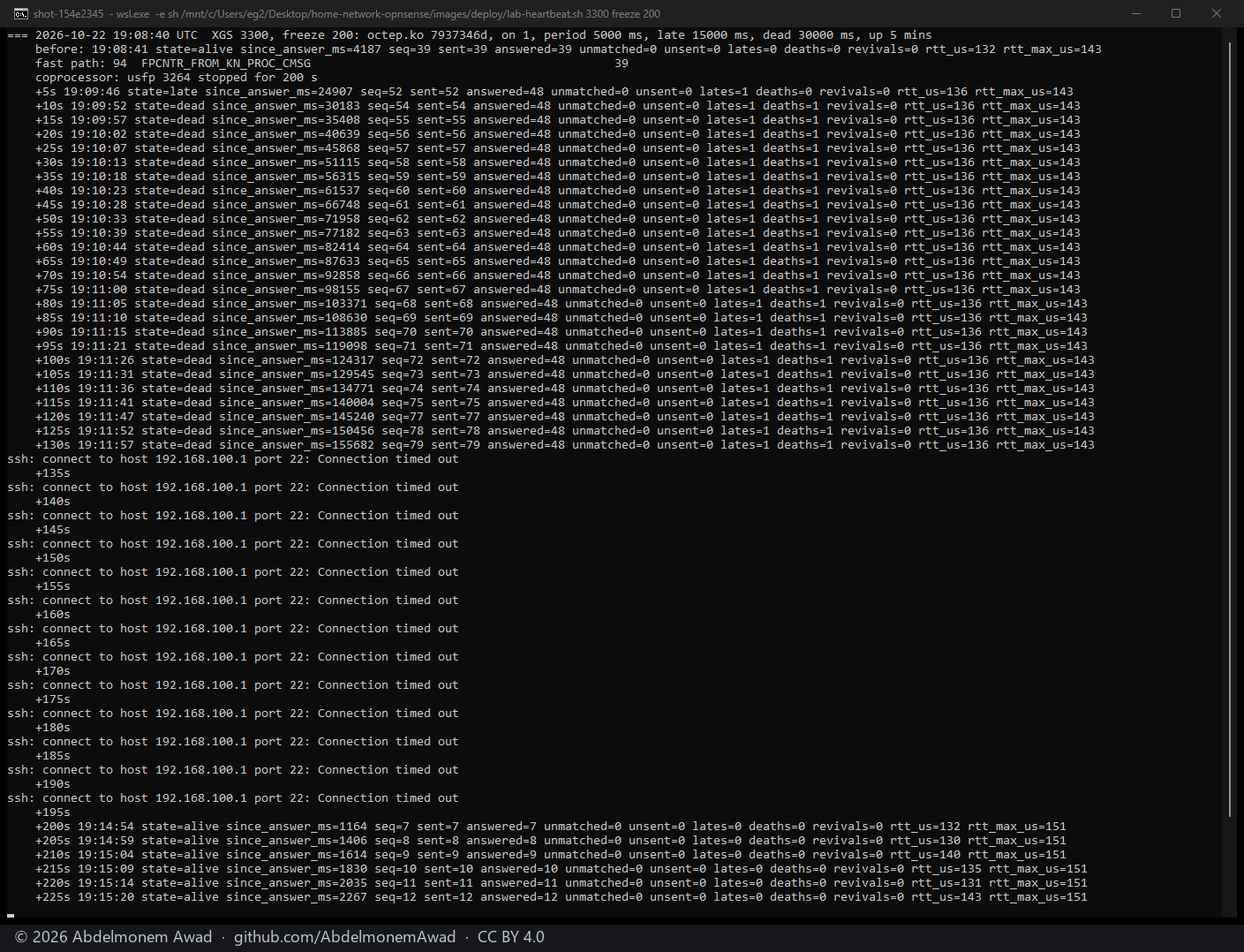

What is done when it stops

XGS: Settings, "When the fast path stops": "Say so, and nothing more" (the default), or "Restart the appliance after 2 / 5 / 10 minutes". scripts/xgs/fastpath.py reads the heartbeat every minute and, with a restart chosen, restarts the appliance cleanly once the fast path has been taken as stopped and gone that long without an answer - the problem report collected first, so it is not lost with the boot - and never more than three times in 24 hours. The report is a kind of its own, fast-path-stopped, with the heartbeat's counters and this boot's heartbeat: lines, looked for at once after a boot rather than after the ten minutes the driver's readiness waits. The Overview's Fast path line says answering and in how long, no answer for how long, or taken as stopped, and the Coprocessor card turns to a warning while it is.

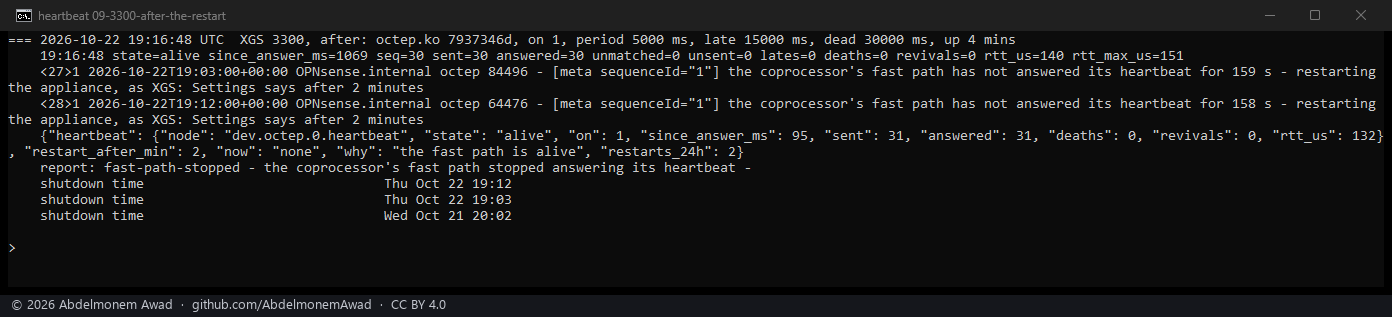

• Restarted at 158 seconds without an answer, not 120: the watcher looks once a minute, so the restart comes at the first look after the minutes chosen.
• The report went with it: queued before the restart (reporting set to manual for the test, so it stayed in the queue instead of going to GitHub, and was dismissed after).
• A first test the same evening found two things, both fixed before this run: the report was not made, because the reporter looked at the driver only ten minutes after a boot and the fast path had been stopped four minutes into one; and the watcher's own line, logged as an error, had become a second, generic report. The heartbeat is looked at from the boot's first minute now, and the line is a warning.
• On the XGS 136 the heartbeat is off, so the watcher reads it and does nothing; the Overview says "not asked".

What it found on the way

A heartbeat sent before the coprocessor is up. The first build sent its beats from the second the host's ring 0 came up - twenty seconds before the coprocessor's handshake. On that boot the second XGS 3300's fast path sent the host nothing at all: no answer to any of 135 beats, nor to a message posted by hand twelve minutes in (the instrument whose message was answered earlier that day), no control message of any type, and the far end of the lab unreachable through it. The next boot, with the heartbeat held until the RPC had answered and an interface was made: every beat answered, the far end reached. One boot each: what is measured is that the boot with early beats was dead and the boots since, with the gate, are not. The vendor's host waits five minutes.

dp.rx_seen is not a count of what the host received: it read 0 on the boot where everything was answered.

What it does not do yet

• Act on a fast path taken as stopped - take connections back, or tell the Status page and the problem reporter; for now it is a line in the system log and heartbeat.state. Done the same evening, above.
• The XGS 136: no heartbeat its fast path answers. Something else it answers - an RPC command that reads one counter, say - could stand in for it there.
