Sixteen IPsec tunnels at once between the two XGS 3300s, 2026-10-20

What remained of both IPsec rows was "many tunnels". One tunnel at a time had been measured on each board; this run makes many at once, between the second XGS 3300 and the first:

  • a lab connection of its own on each 3300 for the run, with sixteen children, each child one TCP port of the first 3300's address - so each child is a tunnel with its own pair of associations; the lab tunnel's own child, which covers the same pair whole, taken down for the run;
  • sixteen iperf3 streams from the bench PC's 10G port at once, one to each port, for 30 seconds: encrypted by the second XGS 3300 (octep.ko md5 872fd0bc, its tunnel flows on) and decrypted by the first (3315c08f);
  • AES-GCM-256 on every child; everything put back after.

Script: images/deploy/lab-3300-many-tunnels.sh, photographed.

Measured
children established 16 of 16
associations in the engines the second 3300 34, the first 32 - two a tunnel, and two more on the second
all sixteen together 9,019 Mbit/s
each tunnel, Mbit/s 592 597 541 565 495 566 571 615 620 528 499 524 532 609 599 566
the second 3300's CPUs, the middle of the run 36 % busy
frames the second 3300's engine encrypted 3,828,056
frames the first 3300's engine decrypted 3,820,551 - within 0.2 % of what the other encrypted

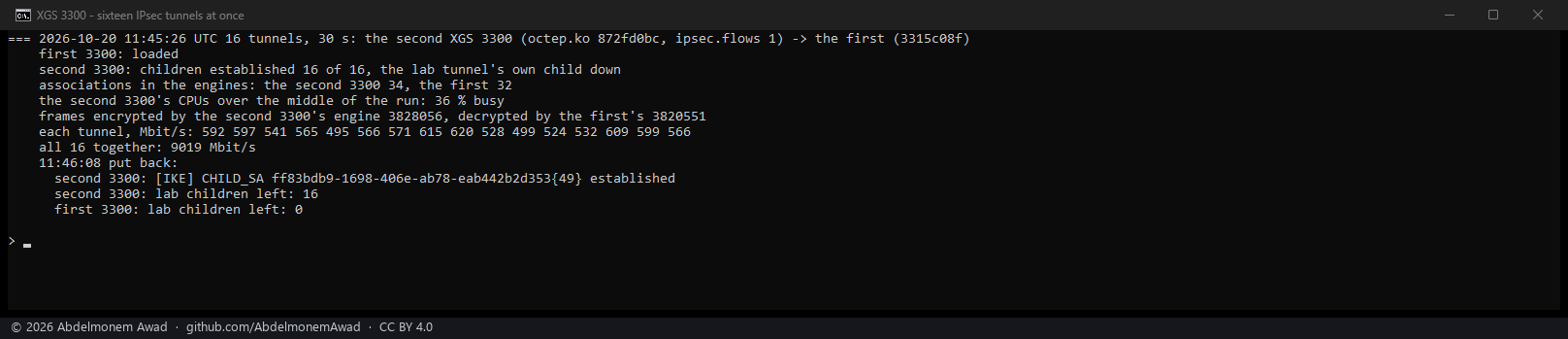

Sixteen IPsec tunnels at once between the two XGS 3300s: 16 of 16 established, 34 and 32 associations in the engines, 9,019 Mbit/s together

The vendor's figures for the XGS 3300 give IPsec 31.1 Gbps with 6,500 tunnels (the 2026-09 brochure), without the method: frame size, ports, cipher and direction are not stated.

What it does not mean

  • Sixteen tunnels, not thousands. The vendor's figure names 6,500; this bench made sixteen.
  • The rate is the PC's 10G port, less the tunnels' envelope - one port in, one sender. It says nothing of what the engine would do from more ports at once.
  • Whether the streams ran as tunnel flows in the fast path was not read during the run. Each child selects one TCP port, and the CPUs at 36 % suggest the host forwarded much of it, with the engine doing the encryption either way; the share is for a run that reads it.
  • The XGS 136 is not in it. The same run with the XGS 136 at the encrypting end could not establish its lab children (0 of 6) - the 3300 answering them refused the selectors - so its 948 Mbit/s that day crossed in clear and is not an IPsec figure. Its many tunnels stay open.
