pf's DSCP mark kept in hardware, measured on the XGS 3300 and the XGS 136, 2026-10-24

Discovery 8 of the discoveries, taken from the source to a product. A rule that sets a DSCP - OPNsense's normalization rule (Firewall: Settings: Normalization, TOS / DSCP) - has pf write that value into every frame of the connections it matches. Until today a connection in hardware lost the mark: the fast path forwarded its frames as they came, measured below. The fast path can write the value itself - each microflow carries a DSCP override (dscp_override_en, dscp_override_val) - and since today both drivers give it pf's value when they make a connection, for both directions.

The path on the second XGS 3300 (octep.ko 54b7e3dd, OPNsense 26.7.7; before and after once more with the module as merged, 0fec828d, which differs from it in two sysctl descriptions only - the last photograph of this section): TCP streams from the first XGS 3300 to the XGS 136, in on the second XGS 3300's A4 and out on its Port8, each made a connection in hardware there (FROM_WIRE_TO_WIRE_VERDICT_CUT_THRU). The normalization rule was on A4, inbound, TCP to the stream's port. The frames' TOS byte was read where they arrived, five seconds into each stream: the data on the XGS 136's Port8 and the receiver's acknowledgements - the reply direction - on the first XGS 3300. The sender set no DSCP (images/deploy/lab-flow-dscp-pf.sh).

the rule's TOS / DSCP	the connection	data, as it arrived	acknowledgements, as they arrived
EF (0xb8)	kept with the host (Never offloaded)	0xb8	0xb8
EF	in hardware, as before today	0x0 - the mark lost	0x0
EF	in hardware, with pf's mark	0xb8	0xb8
AF41 (0x88)	in hardware, with pf's mark	0x88	0x88
CS1 (0x20)	in hardware, with pf's mark	0x20	0x20
0xB9, which sets an ECN bit too	kept with the host by the driver	0xb9	0xb9
none	in hardware	0x0	0x0

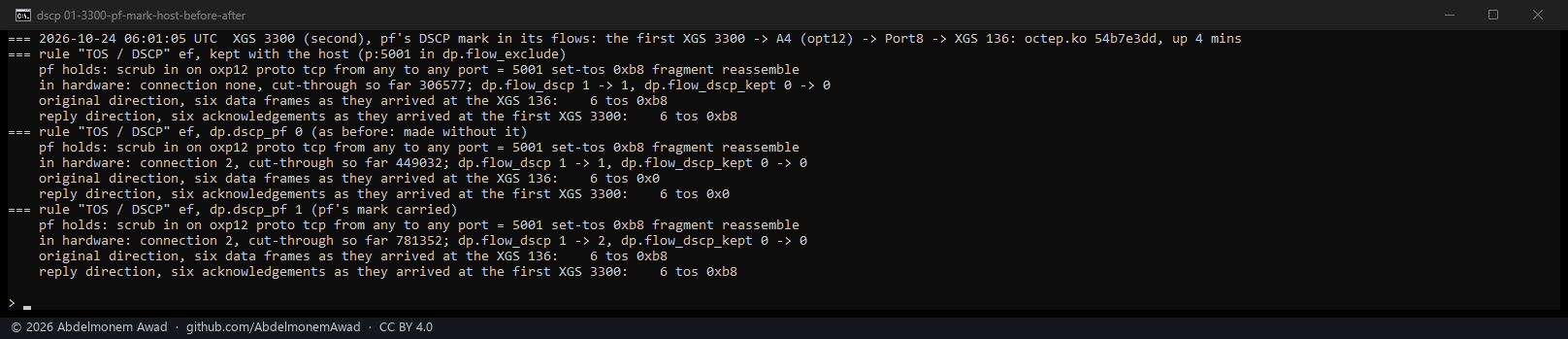

EF on the host path, then in hardware as before today - the mark lost both ways - and in hardware with pf's mark

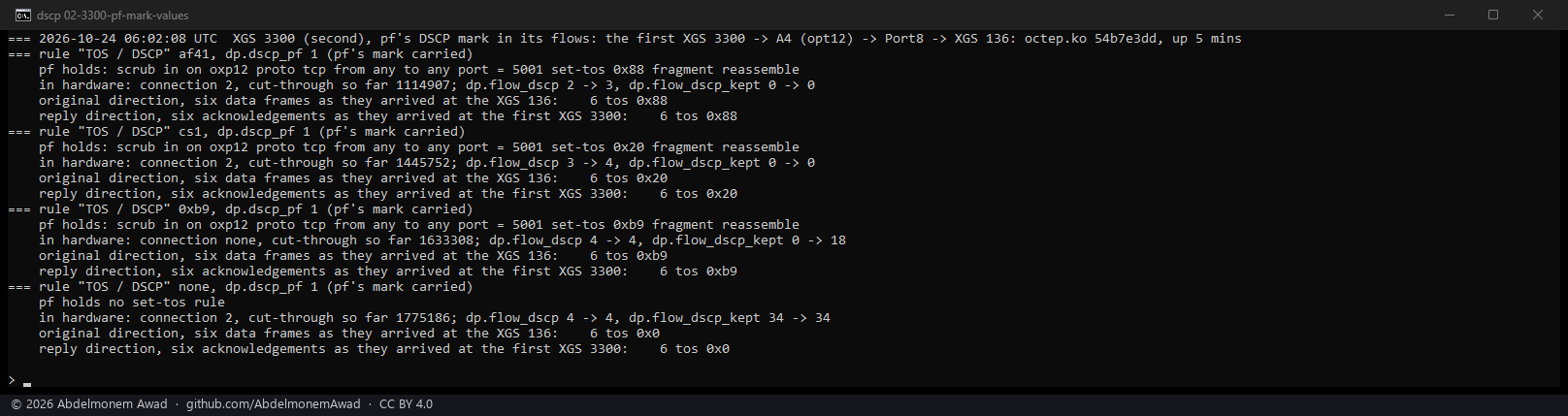

AF41 and CS1 carried both ways; 0xB9 kept with the host by the driver; no rule, no mark

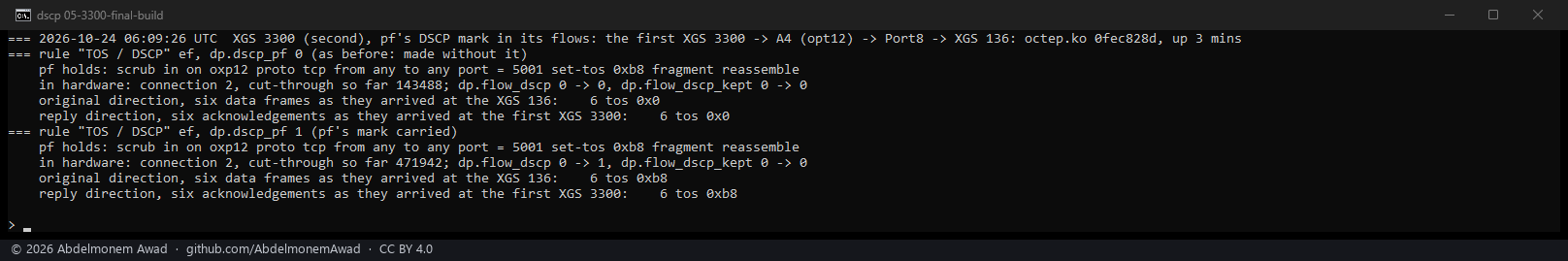

The module as merged, 0fec828d: EF lost in hardware as before, and carried both ways with pf's mark

On the XGS 136

The same, with npuep.ko a7b6b451: an iperf3 stream from the bench PC through the XGS 136 - in on its LAN, a bridge, out on its Port8 - to the second XGS 3300, with the normalization rule on the LAN, inbound, TCP to the stream's port. iperf3 opens two connections, its control and its data, and both were made in hardware with the mark. Read on the second XGS 3300's Port8: the original direction only - the reply arrives at the bench PC, which has no capture here; on the XGS 136 the reply's value is chosen by the same lines as the original's, measured both ways on the XGS 3300.

the rule's TOS / DSCP	the connections	data, as it arrived
EF (0xb8)	kept with the host (Never offloaded)	0xb8
EF	in hardware, as before today	0x0 - the mark lost
EF	in hardware, with pf's mark	0xb8
AF41 (0x88)	in hardware, with pf's mark	0x88
0xB9	kept with the host by the driver	0xb9

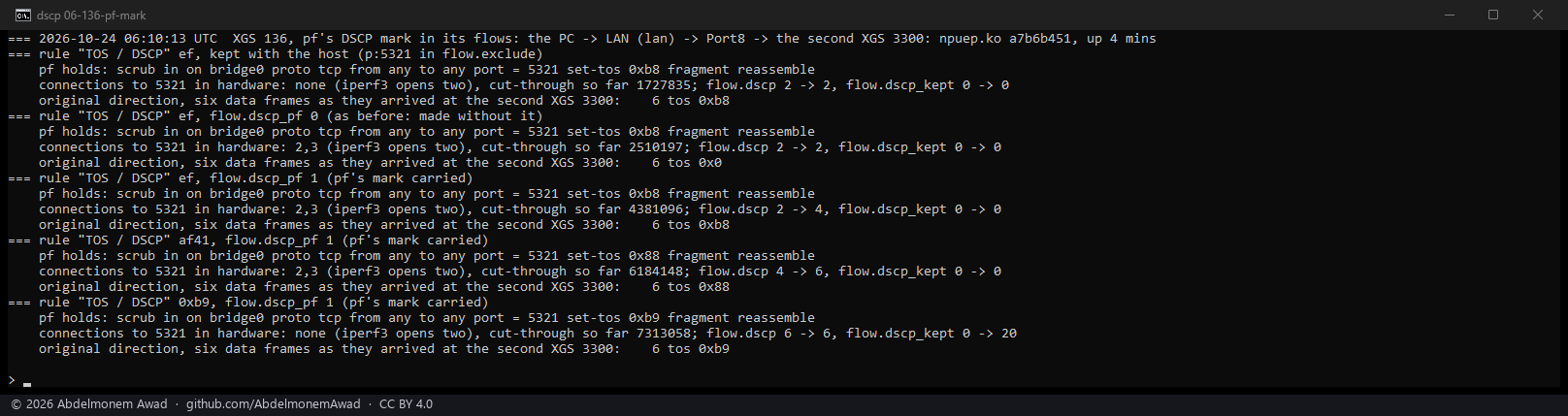

The XGS 136: EF on the host path, lost in hardware as before, carried with pf's mark; AF41 carried; 0xB9 kept with the host

ECN is kept

pf writes the DSCP and leaves the frame's two ECN bits as they came (pf_scrub). The fast path does the same, measured on the XGS 3300: with the sender's TCP asking for ECN, its data frames carry ECT(0), and they arrived as 0xba - EF and ECT(0) - on the host path and in hardware alike; the acknowledgements, which carry no ECT, as 0xb8.

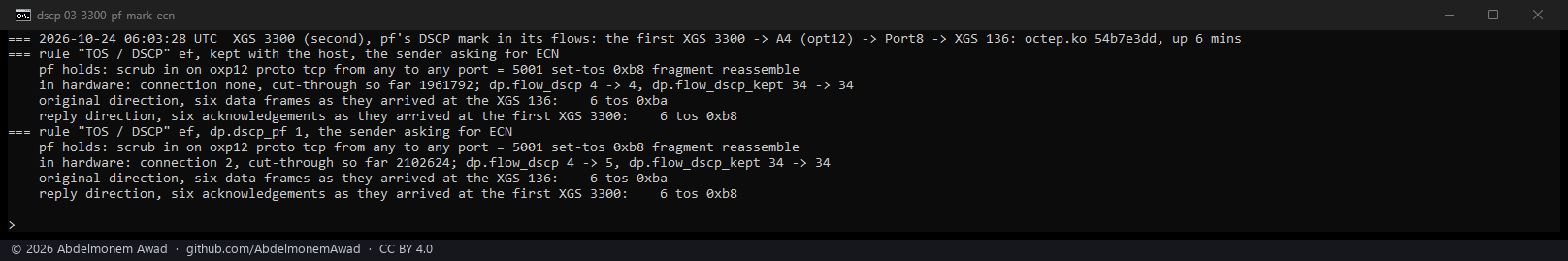

The sender asking for ECN: the data frames 0xba on the host path and in hardware, the acknowledgements 0xb8

A mark that sets the ECN bits itself - the page offers every value from 0x00 to 0xFF - is one the fast path cannot write, since it writes six bits; such a connection is kept with the host, where pf writes it, and counted (dp.flow_dscp_kept, flow.dscp_kept on the XGS 136, an attempt each).

Which value each direction takes

A forwarded frame passes two of pf's states, the one on the interface it arrives on and the one on the interface it leaves by, and pf writes each one's mark in turn - so the second wins. The original direction leaves by the out state's interface and the reply by the in state's: each direction takes that state's mark, or the other's when it has none (octep_pf_tos_scan, npuep_pf_tos_scan). A mark is fixed when the state is made - a later change to the rule reaches new connections, as it does in pf.

What stays with the host

An IPv6 connection with a mark, and a tunnelled one: ~~the fast path's writing of an IPv6 traffic class, and of a frame it is about to encrypt, has not been measured~~ the fast path's writing of a frame it is about to encrypt has not been measured, and an IPv6 traffic class it does not write - on either appliance, measured the same day (flow-dscp6-2026-10-24.md). Before today both were made like any other connection, without the mark; now pf writes it, on the host, and the attempt is counted.

The override itself

The microflow's override, written by hand with the instrument below and no rule: the value is the DSCP, and only its six bits are used - 46 became 0xb8, 184 (0xb8, a TOS byte given by mistake) became 0xe0, 10 became 0x28.

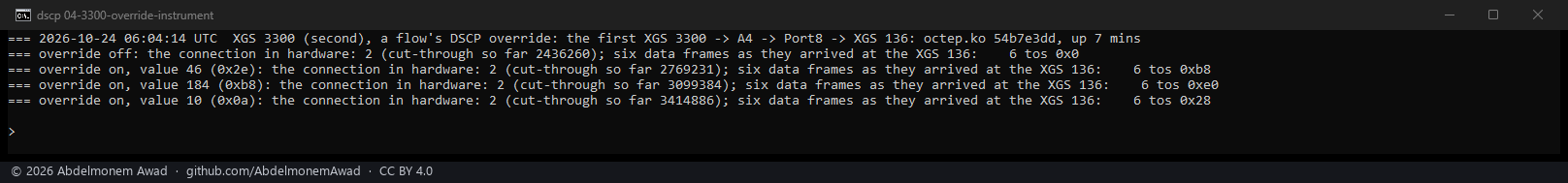

The override by hand: off 0x0; 46, 184 and 10 written as 0xb8, 0xe0 and 0x28

The instruments

dev.octep.0.dp.dscp_pf and dev.npuep.0.flow.dscp_pf: 1, the default, makes connections with pf's mark; 0 makes them without it, as before - how the "before" above was measured. On the XGS 136, 2 makes IPv6 connections with a mark as well, an instrument (the IPv6 measurement).
dev.octep.0.dp.flow_dscp and dev.npuep.0.flow.dscp: connections made with a mark; dp.flow_dscp_kept and flow.dscp_kept: attempts refused for a mark the fast path cannot write.
dev.octep.0.dp.mflow_dscp_on and dp.mflow_dscp: the override by hand, in place of pf's mark, for every connection made while it is on.
