The coprocessor's counters cleared, on the XGS 136 and both XGS 3300s, 2026-10-25

Discovery 13 of the discoveries, taken from the source to a tool. Four commands clear the fast path's counter arrays - debug, fast path, port and direct forwarding - so a measurement can start from zero: the far side pushes a clear onto that array's ring and its workers zero it (cntrs_fpop_clr in the vendor's source). Neither driver sent them; now both do, as counters_clear - dev.octep.0.rpc.counters_clear and dev.npuep.0.rpc_channel.counters_clear, written 0 to 3 - and tools/octep-fpcnt.sh -z and tools/npuep-fpcnt.sh -z clear the fast-path counters before they read them. Nothing in either driver or the plugin reads the counters, so a clear changes nothing but the counts.

Their numbers are the version's, and they showed a wrong claim. The hosts' own clear functions give them: SFOS 21's usfp_cntrs_clr sends 46, 47 or 48 by the counter type, SFOS 23's cntrs_clr the type plus 48, and SFOS 22's are its source's enumeration, 47 to 50. SFOS 22 put the direct-forwarding read at 46, where SFOS 21 has its first clear - so every number in both drivers is SFOS 21's and 22's the two agree only below 46, and SFOS 21 has no direct-forwarding commands at all. The drivers now number every command as SFOS 22 does and place one from 46 on by the version as well as the shift (rpc-numbering.md); a command SFOS 21 does not have is not sent, and says so. Nothing either driver sent had gone past 45, so nothing was ever sent under the wrong number - but LO_WORKER_DF_CNT_READ, 46, which the OCTEON TX driver counts as a read, would have cleared the debug counters on an OCTEON TX board running SFOS 21's software.

octep.ko 0c7fd827 on both XGS 3300s and npuep.ko 629caf6f on the XGS 136, built from this change against the appliances' own kernel. The change's octep.ko is fdc4e281, which differs from 0c7fd827 only in the description of rpc.allow_write; with it, tools/octep-fpcnt.sh -z took the fast-path counters' sum from 5,807 to 63 on the second XGS 3300 and from 23,274 to 141 on the first. On each board the fast-path counters were read with the tool - how many are not zero and their sum - cleared, read at once and again two seconds later, and the other three clears sent (images/deploy/lab-counters-clear.sh).

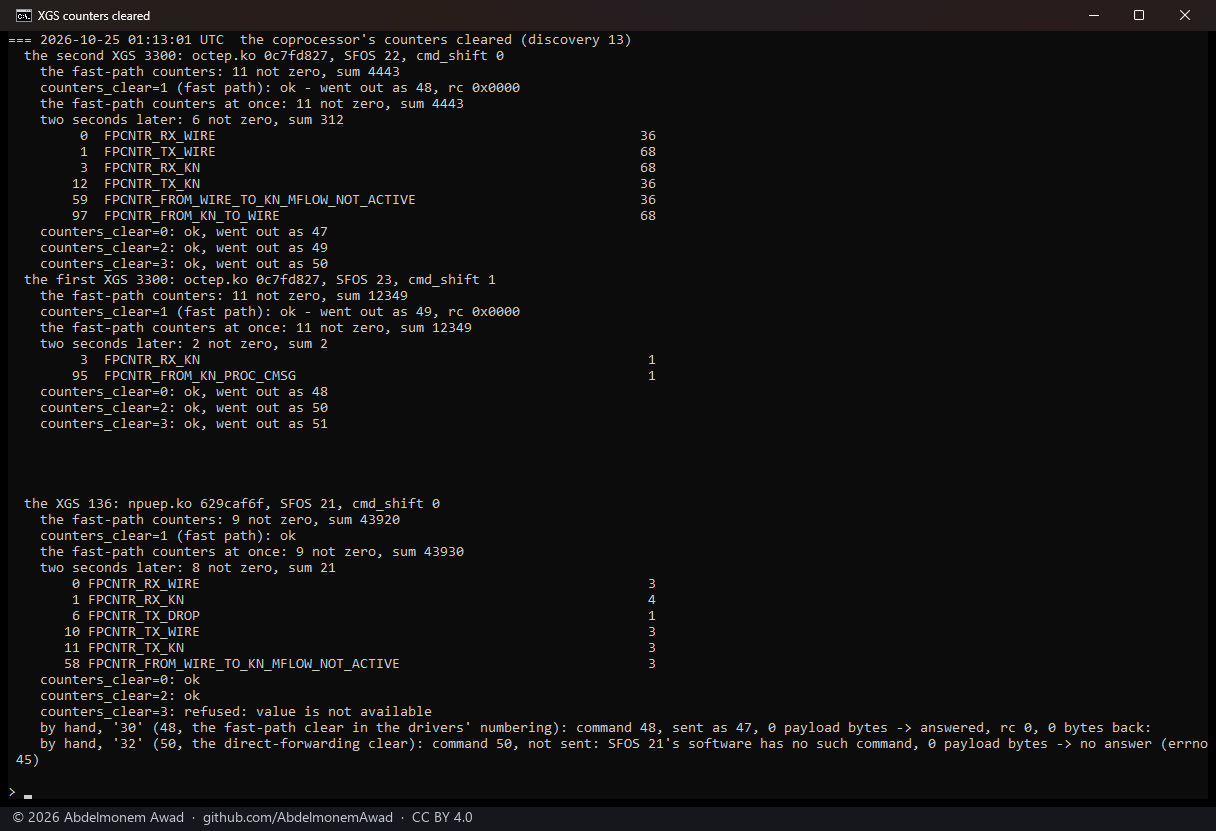

The three boards: on the second XGS 3300 (SFOS 22) the fast-path clear went out as 48 and the counters fell from a sum of 4,443 to 312 two seconds later; on the first (SFOS 23) as 49, from 12,349 to 2; on the XGS 136 (SFOS 21) as 47, from 43,920 to 21; the other clears 47, 49, 50 and 48, 50, 51; on the XGS 136 the direct-forwarding clear not sent, SFOS 21's software having none

board its coprocessor's software the fast-path clear went out as the counters' sum before at once two seconds later debug, port, direct-forwarding clears went out as
the second XGS 3300 SFOS 22 48, rc 0 4,443 4,443 312 47, 49, 50
the first XGS 3300 SFOS 23 49, rc 0 12,349 12,349 2 48, 50, 51
the XGS 136 SFOS 21 47, rc 0 - shown by the same clear sent by hand 43,920 43,930 21 answered, at 46 and 48 by its numbering (this driver does not show the number) - and the third not sent: SFOS 21's software has no such command
  • A clear is taken on the workers' own time. Read at once, every counter still held its count; two seconds later each board's had started again from zero - what is left is what the boards forwarded in those two seconds. Read by hand on the second XGS 3300 beforehand: zero within one second, then counting again. The tools wait two seconds after a clear.
  • The far side answered every clear with rc 0, and with nothing back, as the vendor's host sends it: no request and no reply.
  • A command sent by hand goes through the same placing: on the XGS 136, 48 went out as 47, and 50 was not sent, the driver saying SFOS 21's software has no such command.

What it does not say

  • Whether the debug, port and direct-forwarding arrays went to zero was not read; their clears were answered rc 0. Only the fast-path array, which the tools read, was.
  • What a clear does to a counter a worker is incrementing at that moment.
