An interface entry removed, on the XGS 136, 2026-10-24

The page on VLAN connections in hardware (issue 725) said an interface entry is switched off and never removed, because there is no command that removes one. That was not checked: the coprocessor's command list has RPC_CMD_LIF_DELETE (4), and the vendor's handler for it (usfp_rh/lif_rpc.c, lif_delete then lif_fpop_delete) takes a four-byte index and marks the entry invalid. The sentence is struck there and in the OCTEON TX LIF notes, and this is the measurement behind the correction.

What was run

On the XGS 136, npuep.ko ac79971b, through the driver's hand-sent command (dev.npuep.0.rpc_channel.command), on an entry nothing uses - interface 100, VLAN 999, index (100 << 12) | 999 = 0x643e7 - so no port and no traffic is touched. The entry is created as the driver creates the front ports' own: L2 with offload_disabled (flags 0x0009), a made-up address 02 00 00 73 06 99, MTU 1,500. The commands are 37 LO_LIF_READ, 3 LIF_ADD_UPDATE with the full mask 0x00ff (a create), and 4 LIF_DELETE with the index alone.

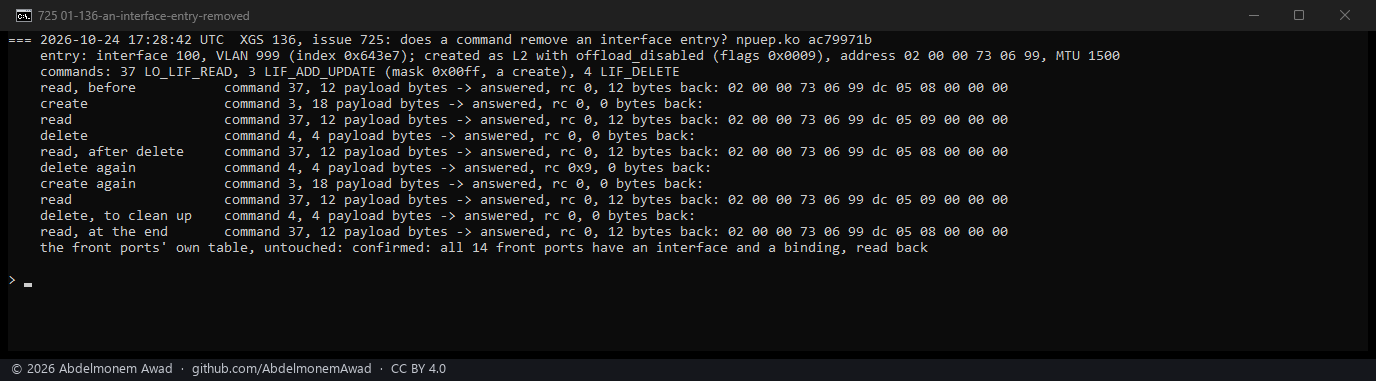

On the XGS 136: an entry created (rc 0, it reads back flags 0x0009), removed (rc 0, it reads back with its forwarding mode 0 - flags 0x0008), removed again (refused, rc 0x9), created again over it (rc 0) and removed; the front ports' table confirmed throughout

  • The delete is taken - rc 0 - and the entry reads back with its forwarding mode cleared: flags 0x0009 become 0x0008, the address and the MTU left as they were.
  • A second delete is refused, rc 0x9: the entry is already invalid, as the handler's check says.
  • A create over a removed entry is taken, rc 0, and it reads back whole again.
  • The first read shows the entry already removed: this run followed one that had left it so.
  • The front ports' own table was confirmed before and after.

What it does not say

What the fast path does with frames that arrive for a removed entry was not measured; the drivers do not remove entries, they switch them off with offload_disabled, which is measured to hand the frames to the host. Nor was the command run on the XGS 3300, whose command table lists it too.

  • images/deploy/lab-725-delete.sh; photographed by shot-run.ps1.
