Why the front ports' interface table is not confirmed, said by the driver, 2026-10-24

Issue 736: the second XGS 126 run by its owner, board revision 07, has its fourteen ports up and carries nothing. The owner pasted what verify.sh printed, and it named the fault -

FAIL  the interface table was never confirmed - received frames will be dropped before they are counted

- but not its reason. That was left in the driver's boot messages, and asking for them is a second round with an owner whose appliance cannot reach the network. On the XGS 136 here and on the first XGS 126, both board revision 08, the table is confirmed seconds after the boot. Two boards of one model can differ: the two XGS 3300s did (revision 17 and 09, an I210 against an I211), which is why the port tables go by the assembly number and never by the revision (front ports by model). This difference may not be in the hardware at all - the coprocessor keeps the software the appliance last had from Sophos, and the vendor's own header says an older coprocessor reads the channel's state block in an older layout. Which it is, the next owner should not have to be asked.

The driver now says why, in one line, and verify.sh prints it. dev.npuep.0.iftable holds either confirmed: ... or the reason the table is not, with the numbers the coprocessor gave, and no addresses - it is meant to be pasted in public:

  • the channel never opened: the facility table offered no control-message channel, nothing on the coprocessor claimed its window, or the coprocessor did not acknowledge or take the configuration (with the state and magic it left);
  • the channel stalled: which command went unanswered;
  • or, pass by pass, how many of the fourteen ports read back, and for the first that did not, what the read of its entry found - not answered, refused with its rc, a short answer, an empty entry, another address, the wrong forwarding field - and what the coprocessor answered the create and the binding written before it, whose rc the driver never looked at before.

verify.sh prints the line under a table that is not confirmed, then the driver's own control-channel messages from the boot with any address masked, and at the top the model, its assembly number and the board's revision - never the serial number. The support bundle carries the line with the rest of dev.npuep. The problem template asks for verify.sh's output, and the guide's table of what can go wrong says to paste it.

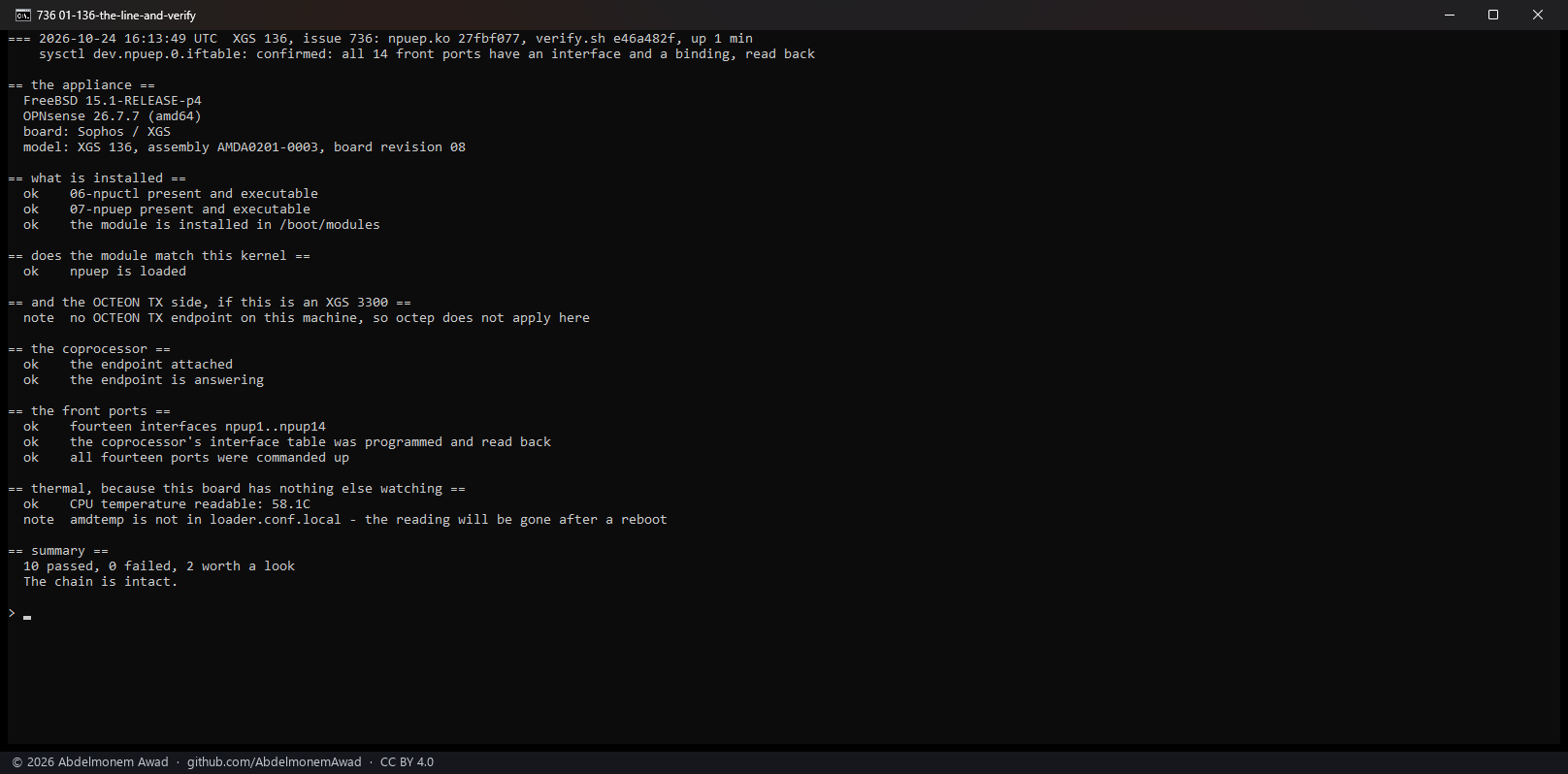

The line and verify.sh on the XGS 136

npuep.ko 27fbf077, verify.sh e46a482f, a minute after the boot: the line says confirmed, and verify.sh passes, now naming the model, its assembly and the board's revision at the top. A ping crossed Port8 to the second XGS 3300 and the WAN kept its DHCP address afterwards: the build changes what the driver reports, not what it programs.

The XGS 136: dev.npuep.0.iftable reading confirmed, and verify.sh passing with the model, assembly AMDA0201-0003 and board revision 08 at the top

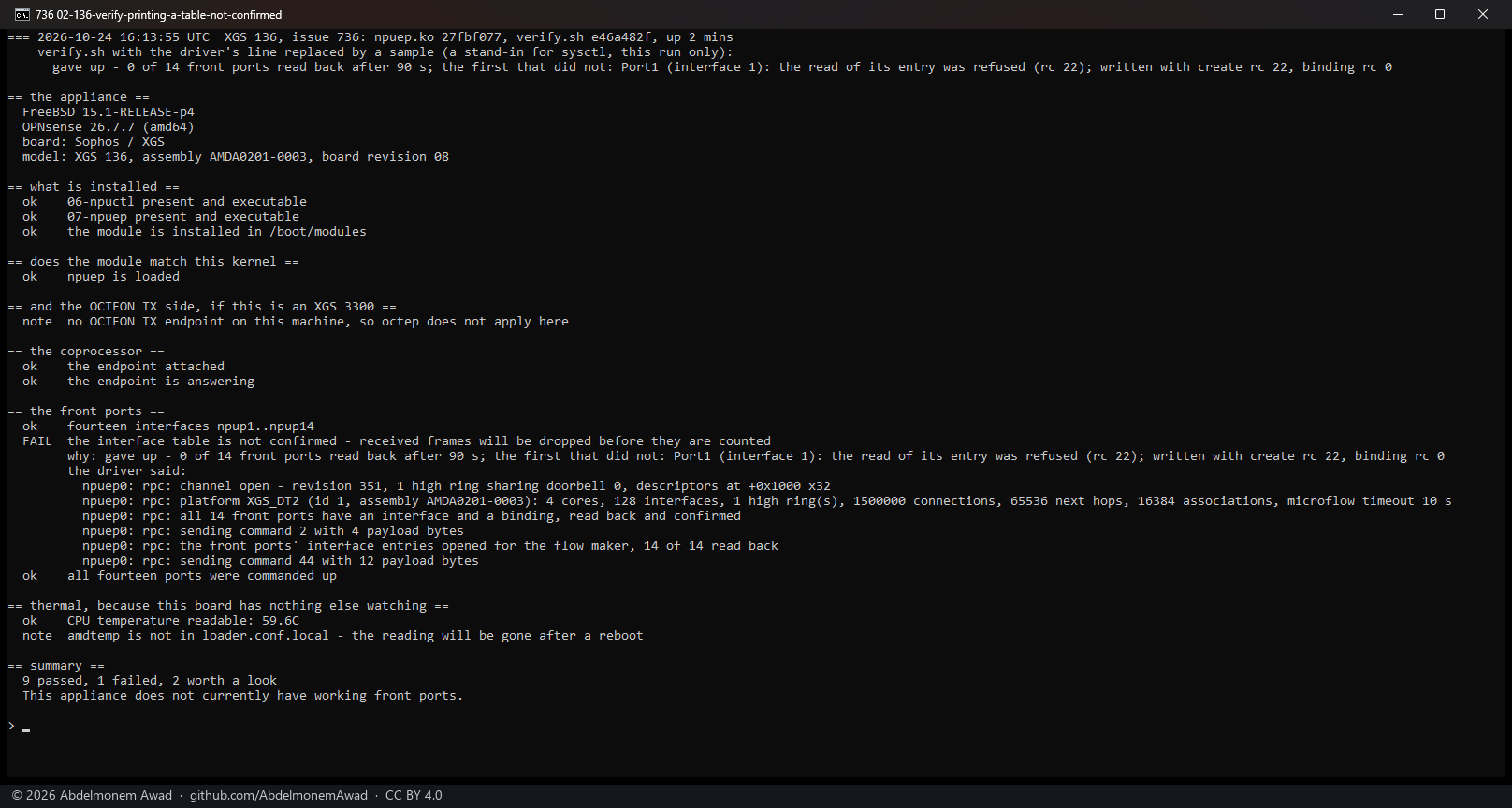

verify.sh printing a table that is not confirmed

The XGS 136's table is confirmed, so this one is the script's branch, not the driver's: for one run, a stand-in for sysctl on the PATH answers dev.npuep.0.iftable with a sample in the driver's own wording - a refused read on Port1 - and passes everything else to the real one. The FAIL carries the reason, and under it the driver's messages from this boot, which on this appliance say the table was confirmed. On an appliance that failed they say how.

verify.sh with the sample line: FAIL, the reason under it, the driver's messages from the boot under that

What it does not do

It does not make the XGS 126 of #736 work. It makes the next appliance that fails this way say why in the first paste. The reason for #736 is still to come from its owner's boot messages, asked for on the issue; what that shows becomes the next change, made for every appliance with that difference. It came the same day, and the difference was not the board's: a race the driver lost by looking only once - the command channel waited for.

  • sysctl dev.npuep.0.iftable: the line, live.
  • images/deploy/lab-736.sh, and lab-736.sh failed; lab-736-series.ps1 photographed them.
