pf's DSCP mark on IPv6, measured on the XGS 3300 and the XGS 136, 2026-10-24

Discovery 8 put pf's DSCP mark - OPNsense's normalization rule (Firewall: Settings: Normalization, TOS / DSCP) - into the microflows of the connections each driver makes, and the fast path writes it into every frame: measured for IPv4. An IPv6 connection with a mark was kept with the host, because the fast path's writing of an IPv6 traffic class had not been measured. It has now.

The XGS 3300's fast path does not write it. On one path, one build and in the same minutes, the microflows' override set by hand to 46 came out of the fast path as 0xb8 in every IPv4 frame and as 0x00 in every IPv6 frame, both directions. An IPv6 connection with a mark stays with the host, where pf writes it - now because it is measured, not for want of a measurement.

The path

The first XGS 3300 (fd99:10::1, given IPv6 for this on its link to the second's A4) sends a TCP stream to the XGS 136's Port8 (fd99:23::2), through the second XGS 3300: in on A4, out on Port8. The normalization rule on A4, inbound, TCP to the stream's port, no address family - so it marks IPv6 as well. The frames' traffic class read where they arrive, five seconds into each stream: the data on the XGS 136's Port8, the receiver's acknowledgements on the first XGS 3300. The sender sets none. images/deploy/lab-flow-dscp6.sh, its setup first; octep.ko 717c6808 on the second XGS 3300.

pf marks IPv6; the driver keeps it with the host

the rule's TOS / DSCP	the connection	data, as it arrived	acknowledgements
none	in hardware	0x00	0x00
EF (0xb8)	kept with the host (the port excluded)	0xb8	0xb8
EF	as the driver has it: kept with the host, `dp.flow_dscp_kept` +22	0xb8	0xb8

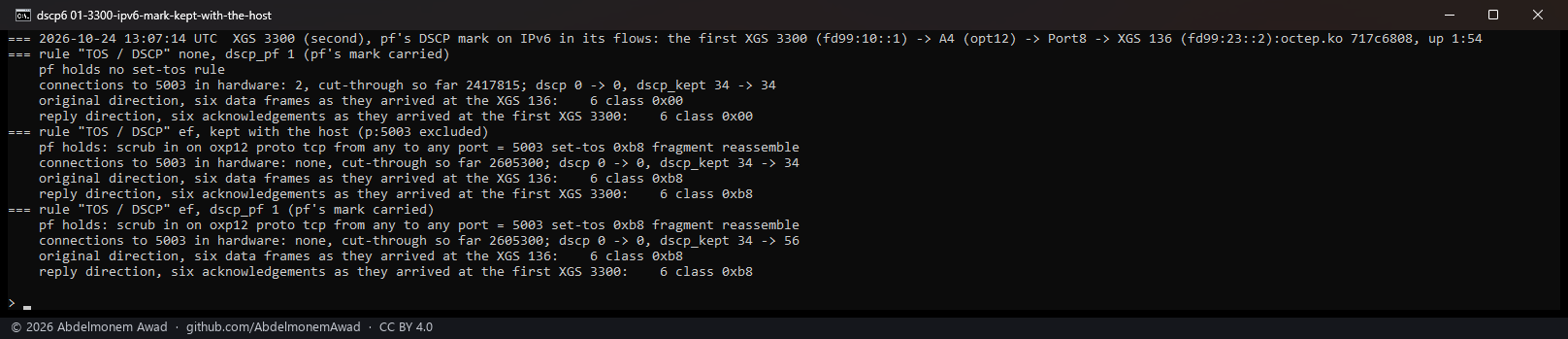

IPv6 through the second XGS 3300: no rule, no mark; EF on the host path, written by pf both ways; EF as the driver keeps it, with the host

The override, IPv4 and IPv6 side by side

No rule, the override written into both microflows of every connection made by the instrument dp.mflow_dscp_on and dp.mflow_dscp, the same path over IPv4 first, between the same two ends:

family	the override	the connection	data	acknowledgements
IPv4	46	in hardware	0xb8	0xb8
IPv6	46	in hardware	0x00	0x00
IPv6	10	in hardware	0x00	0x00

Every one in hardware - the fast path's cut-through counter rose by about 333,000 frames from one run's reading to the next - so the frames read were the fast path's, and it wrote the IPv4 frames' DSCP and left the IPv6 frames' traffic class as it came.

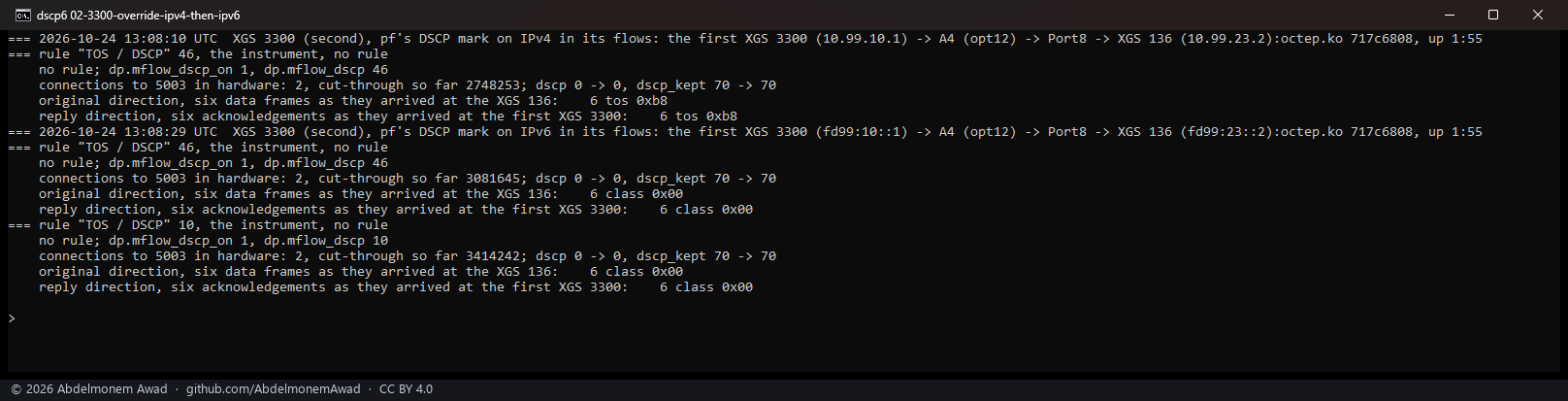

The override by hand on one path and one build: IPv4 0xb8 both ways, IPv6 0x00 both ways at 46 and at 10

On the XGS 136

The XGS 136's driver has no override by hand, so it was given a setting that makes an IPv6 connection with a mark the way it makes an IPv4 one: flow.dscp_pf 2, an instrument (npuep.ko 58c29965). The path: an iperf3 stream from the bench PC (fd99:136::2) through the XGS 136 - in on its LAN, out on its Port8 - to the second XGS 3300 (fd99:2::1), the normalization rule on the LAN, inbound, TCP to the stream's port. Read on the second XGS 3300's Port8, the original direction only: the reply arrives at the PC, which has no capture here.

the rule's TOS / DSCP	the connections	data, as it arrived
none	in hardware	0x00
EF (0xb8)	kept with the host (the port excluded)	0xb8
EF	as the driver has it: kept with the host, `flow.dscp_kept` +24	0xb8
EF	made in hardware with the mark (`flow.dscp_pf` 2, `flow.dscp` +2)	0x00 - the mark lost
AF41 (0x88)	made in hardware with the mark	0x00

The XGS 136's fast path left the traffic class as it came, as the XGS 3300's did: both connections iperf3 opens were made with pf's mark in their microflows, and their frames arrived unmarked.

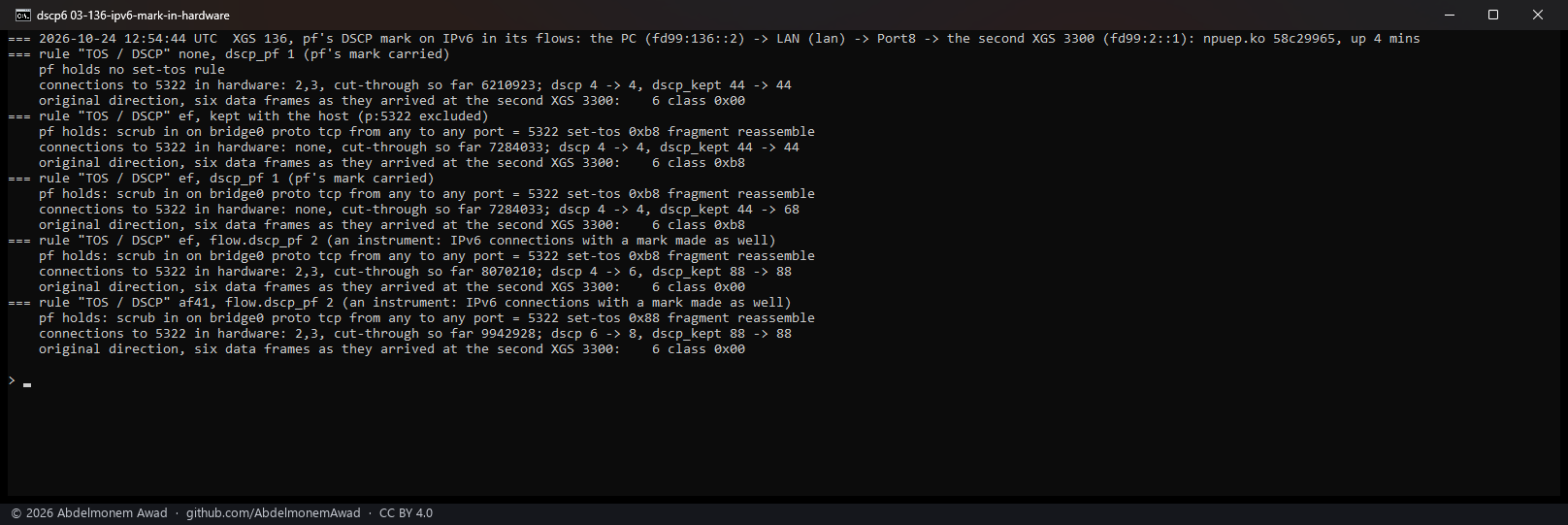

IPv6 through the XGS 136: no rule, no mark; EF on the host path; EF kept with the host as the driver has it; EF and AF41 made in hardware with the mark, and lost

What it means

An IPv6 connection with a mark stays with the host on both appliances, as it did, and pf writes the mark there. That costs the host the connection's frames: a marked IPv6 stream is carried as on an appliance without a fast path. An IPv4 connection with a mark is made in hardware with it, as discovery 8 measured. A marked connection in a tunnel stays with the host, still untried.

The reason a connection kept this way is given - as dp.accelerate on the XGS 3300 and flow.accelerate on the XGS 136 print it - now says why: "the fast path does not write an IPv6 traffic class", where it said the writing was untried.

The modules as merged

octep.ko ded00b99 and npuep.ko 798bc574 differ from the measured ones in the reason's words and in comments only. Put on both appliances and run once more: on each, an IPv6 connection with EF kept with the host (dscp_kept +20 on each) and its frames 0xb8; on the XGS 136, flow.dscp_pf 2 made the two connections in hardware with the mark (flow.dscp +2), and their frames arrived 0x00.

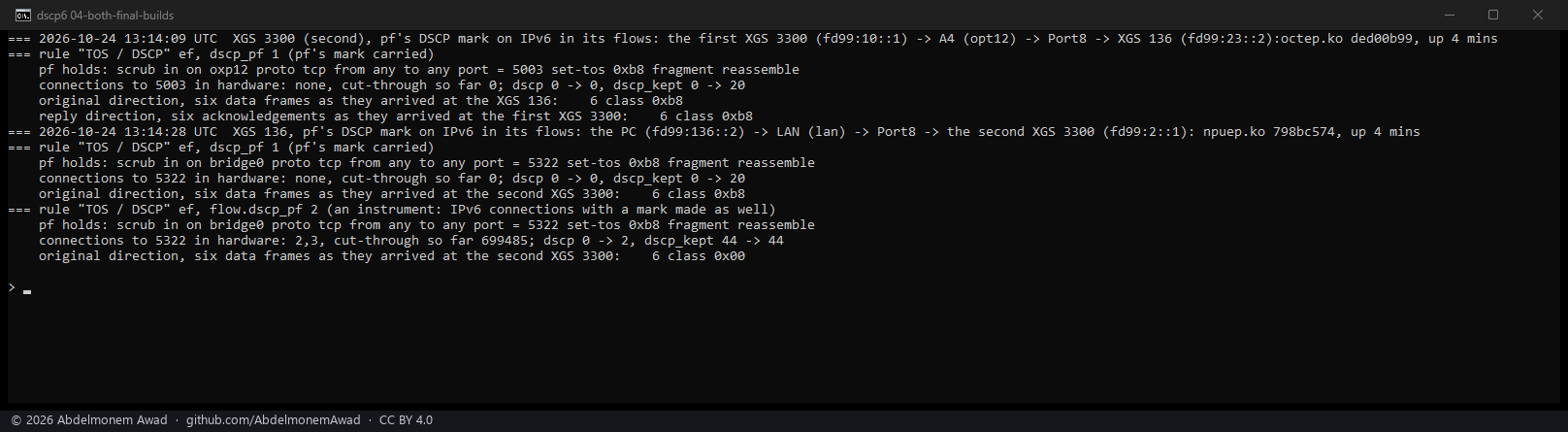

The modules as merged: IPv6 with EF kept with the host on both, 0xb8; the XGS 136's instrument, in hardware, 0x00

The instruments

dev.octep.0.dp.mflow_dscp_on and dp.mflow_dscp, the XGS 3300's override by hand, as in discovery 8.
dev.npuep.0.flow.dscp_pf 2 on the XGS 136: an IPv6 connection with a mark is made in hardware with it, to see what the fast path writes; 1, the default, keeps it with the host.
images/deploy/lab-flow-dscp6.sh - setup gives the first XGS 3300's link to the second's A4 IPv6 (lab-v6.php, fd99:10::1 and ::2, a rule passing IPv6 on each end) and the routes by hand, which a reboot of the XGS 136 or the first XGS 3300 takes away; then 3300, 136 and override as the photographs ran them, V=4 for the IPv4 control.
