Six IPsec tunnels at once through the XGS 136, 2026-10-20¶

The XGS 136's side of the sixteen tunnels between the two XGS 3300s: a lab connection of its own on the 136 and the second XGS 3300 with six children, each child one TCP port of the 3300's Port8 address, so each child a tunnel with its own pair of associations; six iperf3 streams from the PC's adapter on F1 at once, for 30 seconds, one to each port - encrypted by the 136's engine and decrypted by the 3300's.

The first try, the same afternoon, brought up none of the six: the lab connection authenticated with the lab tunnel's identities - the two addresses - and the 3300 matched every child to the lab tunnel's own connection and refused it (TS_UNACCEPTABLE). Now it authenticates as identities of its own, so the 3300 picks it and an IKE_SA of its own; the pre-shared key is the lab tunnel's, copied on each box into the lab file and removed with it. A run whose children do not all come up stops there.

Script: images/deploy/lab-136-many-tunnels.sh, photographed. The XGS 136 running npuep.ko d34004f6, main's source but for a comment (main's own build, ca1a0e18, is the file the run names).

Measured¶


children established	6 of 6
associations in the engines	the XGS 136 12, the second XGS 3300 14
all six together	915 Mbit/s
each tunnel, Mbit/s	187 123 146 195 128 136
the XGS 136's CPUs, the middle of the run	29 % busy
frames the 136's host handed its engine	2,358,711
frames the 3300's engine decrypted from it	2,358,288

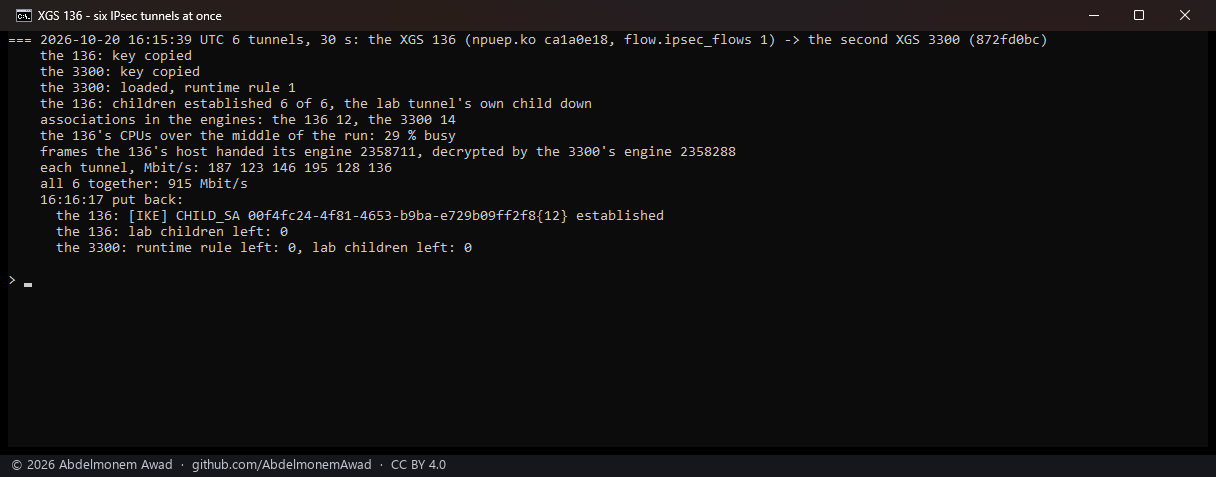

Six IPsec tunnels at once through the XGS 136: 6 of 6 established, 12 associations in its engine, 915 Mbit/s together

What it does not mean¶

Six tunnels, not hundreds. Twelve associations on the 136's engine at once.
The rate is the gigabit link's, less the tunnels' envelope.
The connections stayed with the host and the engine encrypted what the host handed it - the frames handed to it are the whole stream; each child selects one TCP port, as on the XGS 3300, and the CPUs at 29 % are the host forwarding.
