A connection cut on the coprocessor itself, by its verdict. Measured, 2026-10-23

Until this, a connection that a watched block list or a listed TLS fingerprint cut had its pf state killed, and the driver then took it out of hardware - within a second or two - after which every frame its sender went on sending crossed to the host for pf to drop. Each connection on the coprocessor carries a verdict that its fast path can be asked about for every frame, and the driver only ever wrote "forward" (the discovery, 680).

Now, with XGS: Settings - Cut in hardware, on by default:

• A cut drops the connection on the coprocessor at once, both ways, before its pf state is killed as always - one command, CONN_MODIFY_FP_VERDICT with DROP.
• It is kept there while its sender goes on sending, so those frames never reach the host: a UDP flood at 400 Mbit/s through the XGS 3300, cut, sent the host 10 frames in ten seconds against 610,533 without the setting; through the XGS 136 at 300 Mbit/s, 36 against 280,202, its CPUs 0.4 % busy against 7.0 %. Once the frames stop, the connection is taken out like any other.
• It costs nothing measured: a thousand connections at once ran the same with it as without.
• Off, connections are made as before and a cut works as before.

The modules measured: octep.ko a3472a42 on the second XGS 3300 and npuep.ko 6e231f79 on the XGS 136.

What makes it work

The verdict's numbers and the microflow's actions are not in the source this project holds - its debugging code names them without numbers. They were read from the vendor's host module: its printer of a connection chooses "SEND TO IPS" for 0, "DROP" for 1 and "CUT THRU" for 2, and its printer of a microflow "DROP" for 0, "FWD" for 1, "IPS" for 2 and "AUX" for 3. Then measured:

the connection's microflows	the fast path's IPS switch (bit 0x004 of the configuration word)	the verdict set to DROP

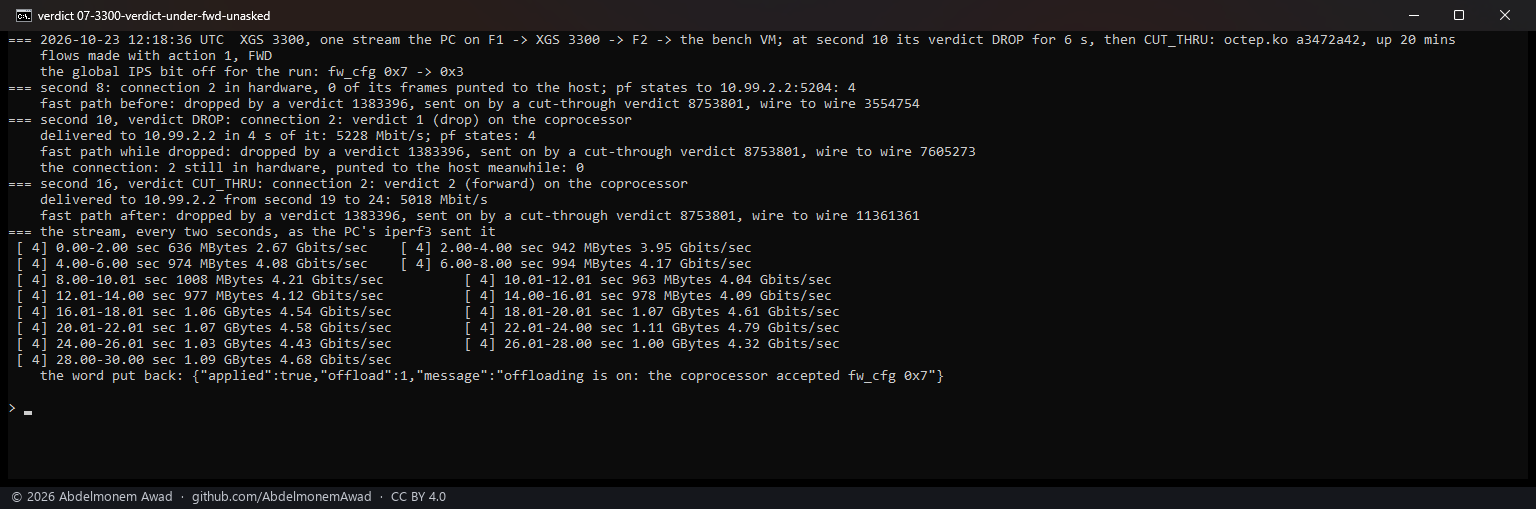

FWD, as this driver made them	either	asked nothing: the stream went on at 5.2 Gbit/s
IPS	off	asked nothing either: sent on to the wire, counted as FROM_WIRE_TO_WIRE_IPS_DISABLED

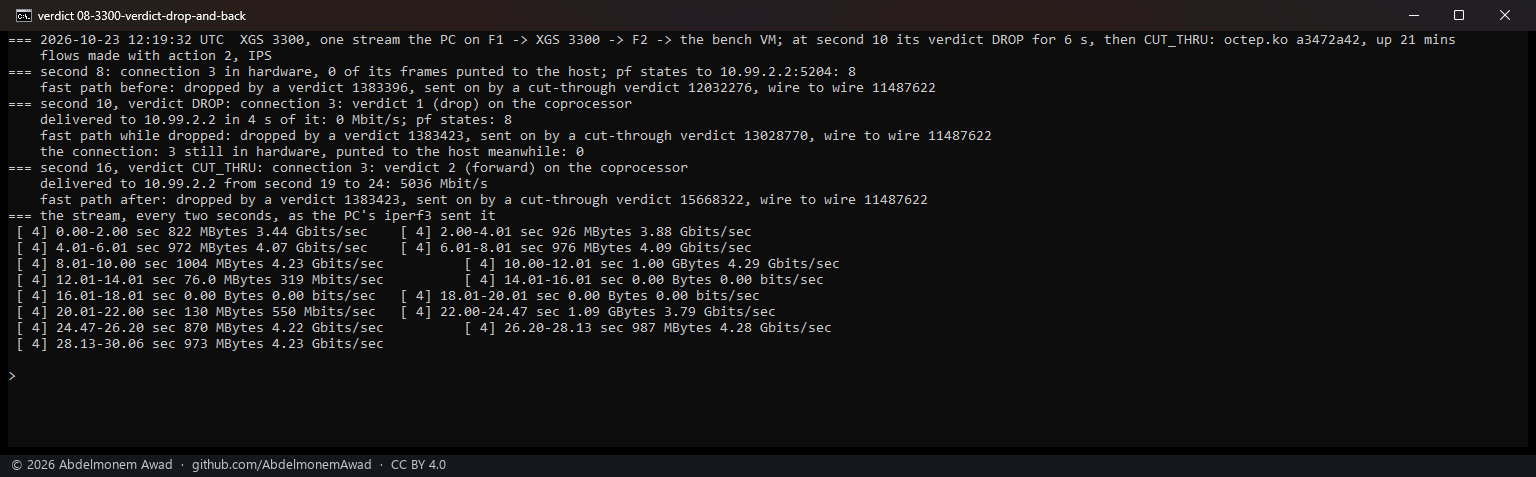

IPS	on	dropped, counted as FROM_WIRE_DROP_IPS_VERDICT; set back to CUT_THRU, forwarded again

So "Cut in hardware" makes every plain connection with the action IPS and keeps the IPS switch on

• dp.mflow_action / flow.mflow_action 2, written at a save and at every boot, and the switch written by offload.sh with the gate. With CUT_THRU, the verdict every connection is made with, the fast path sends the frame on, counted as FROM_WIRE_TO_WIRE_VERDICT_CUT_THRU. A tunnel's connection stays FWD: its encryption under IPS is untried. If the coprocessor restarts and forgets the switch, an IPS frame is sent on to the wire as before - nothing is cut that should not be.

How it was measured

Each run in a window of its own, photographed (images/deploy/lab-verdict-series.ps1); the text of every run, the ones before the photographs among them, is in the run log.

• The cut (lab-cut-hw.sh): one stream in hardware - TCP, or UDP at a fixed rate, the flood a listed sender would keep up - from the PC through the appliance. At second 10 its far end is added to a watched block list that has a block rule, as a real list has, and the cut is run as saving the settings page runs it. From second 12 to 22: what still arrives where the traffic ends, the frames the host takes in on the interface the stream enters by, and the host's CPUs. The setting is set on or off for the run the way the page sets it, and put back.

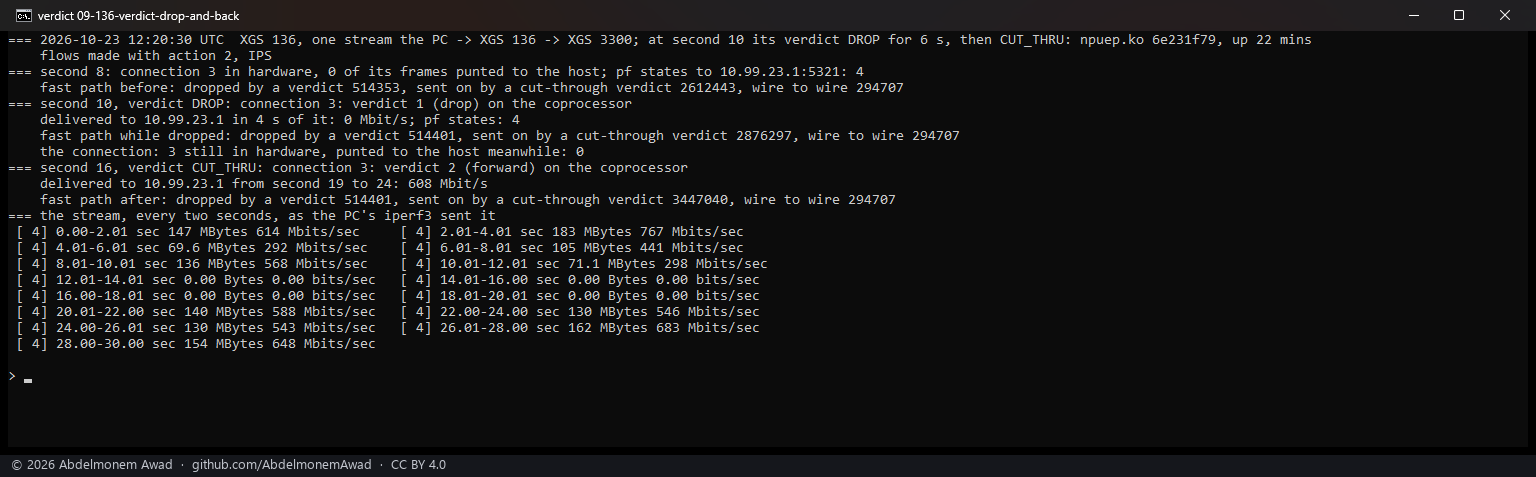

• The verdict alone (lab-verdict.sh): a stream in hardware, its verdict set to DROP at second 10 and back to CUT_THRU at second 16 with the driver's own sysctl, pf's state left alone.
• The cost (lab-verdict-many.sh): the thousand-connection run of 2026-10-19, eight clients of 128 streams each, with FWD and the switch off, then with IPS and the switch on.

On the XGS 3300 the far end of the stream is the bench VM, which is the listed address itself: once it is listed, the reading of what reaches it is cut too, and the page says so rather than a figure. What the stream did there is in the PC's own iperf3 lines beside it.

The cut

	stream	Cut in hardware	the cut	dropped on the coprocessor, seconds 8 to 22	frames to the host, seconds 12 to 22	its CPUs	still in hardware at 22

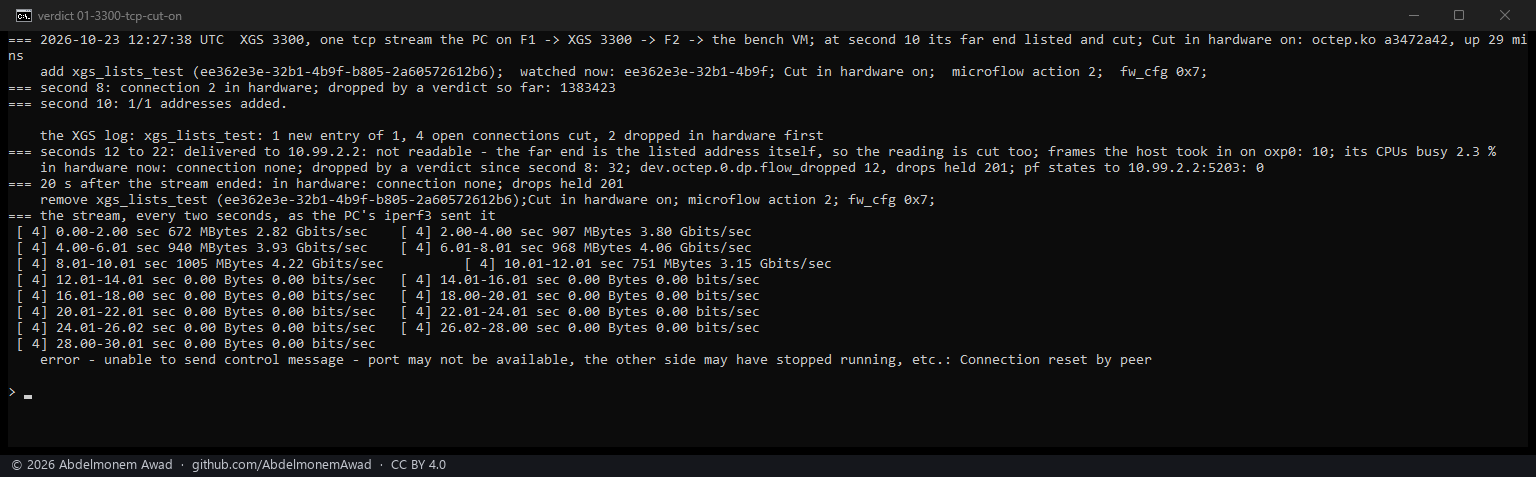

XGS 3300	TCP	on	4 states cut, 2 connections dropped first	32	10	2.3 %	no - the sender stopped, and the fast path handed it back

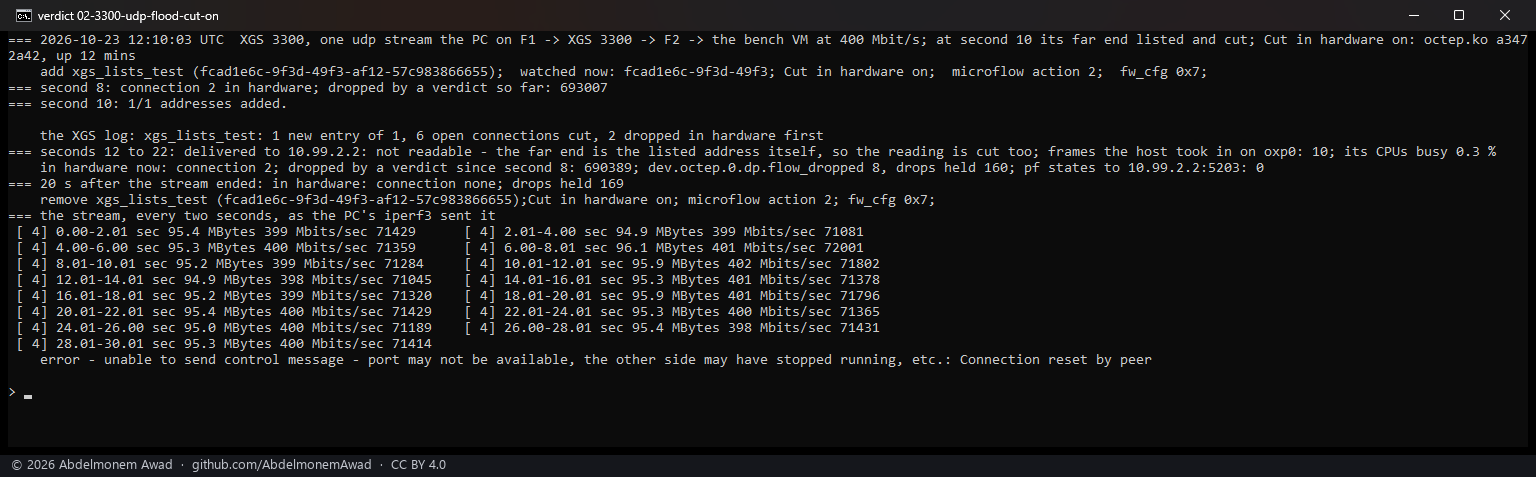

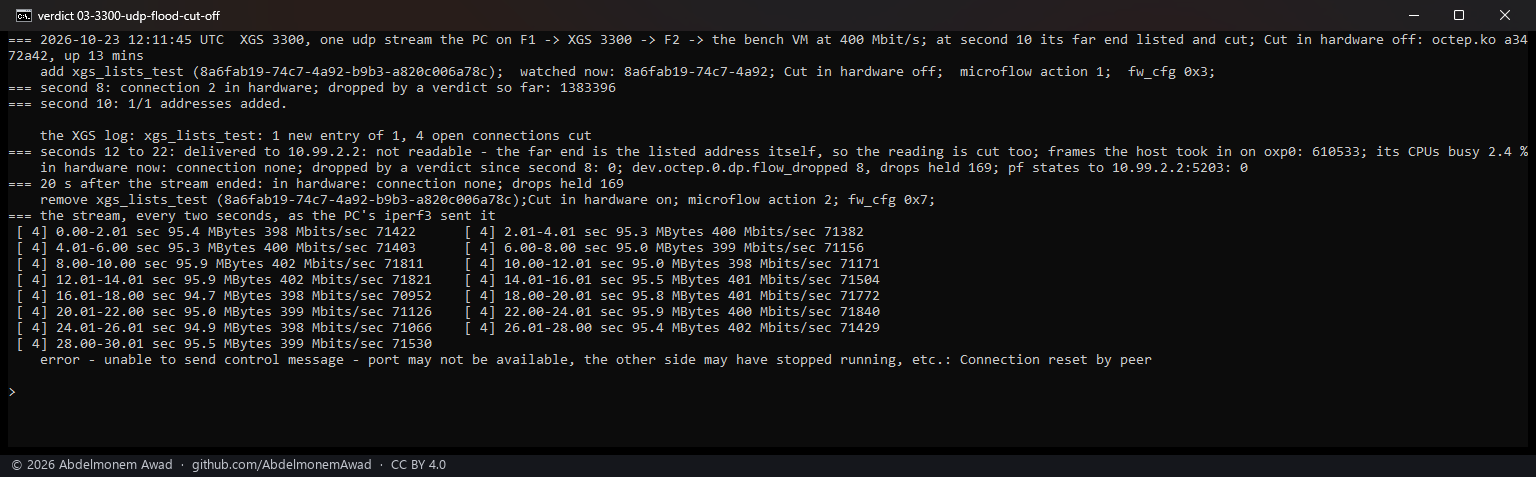

XGS 3300	UDP, 400 Mbit/s	on	6 cut, 2 dropped first	690,389	10	0.3 %	yes
XGS 3300	UDP, 400 Mbit/s	off	4 cut	0	610,533	2.4 %	no

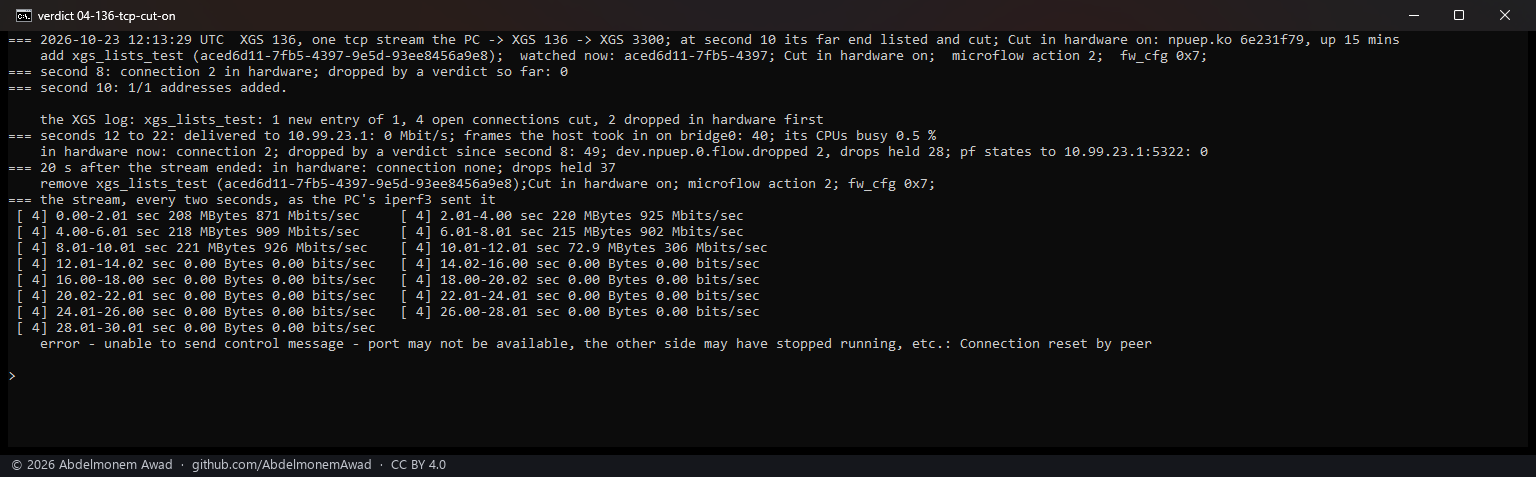

XGS 136	TCP	on	4 cut, 2 dropped first	49	40	0.5 %	yes, until 20 s after

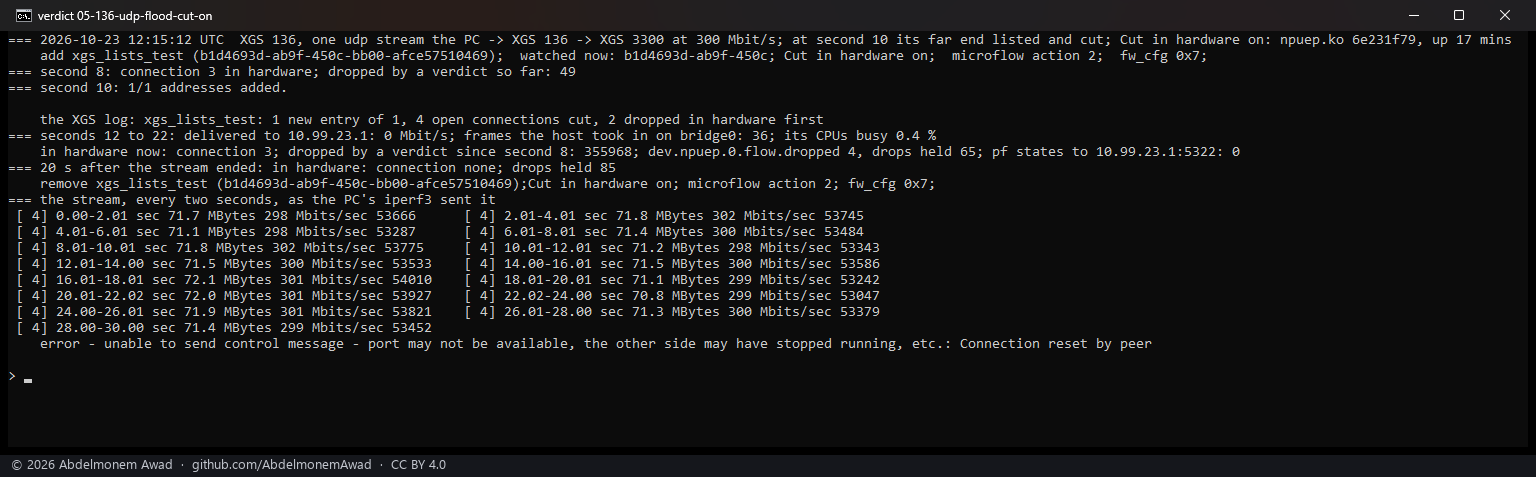

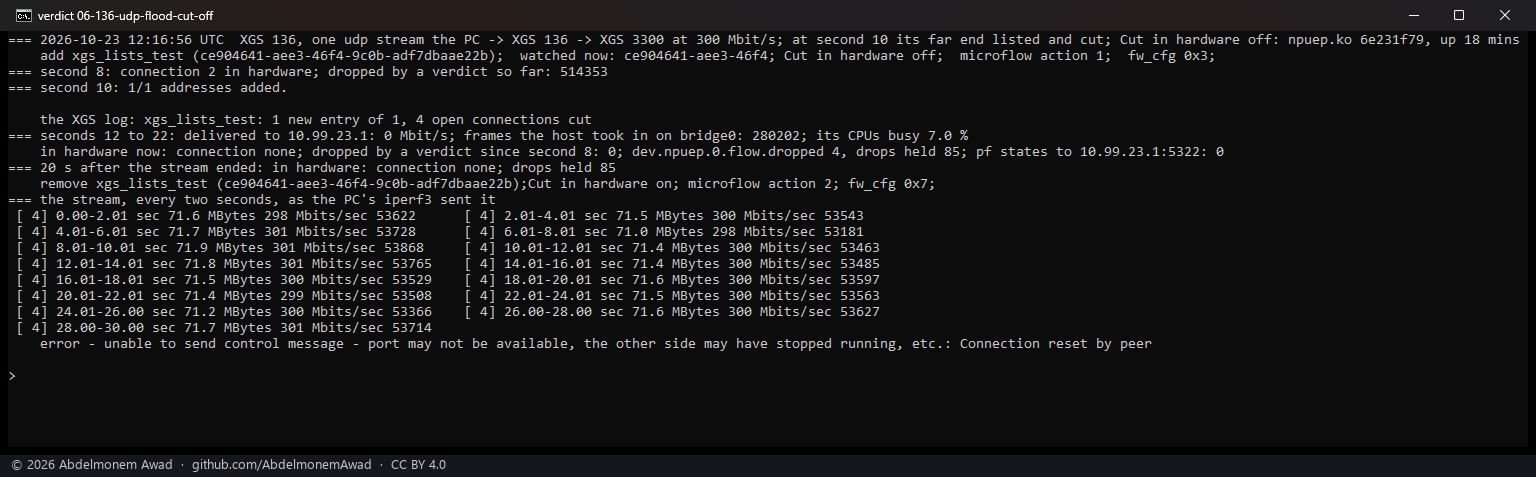

XGS 136	UDP, 300 Mbit/s	on	4 cut, 2 dropped first	355,968	36	0.4 %	yes
XGS 136	UDP, 300 Mbit/s	off	4 cut	0	280,202	7.0 %	no

Twenty seconds after each stream ended its connection had left hardware.

A TCP sender stops by itself once nothing is acknowledged, so a cut TCP connection costs the host little either way; and the fast path hands back a connection that keeps retransmitting the same segment, which is how the XGS 3300's left hardware before second 22. A sender that does not stop - a UDP flood, or a program that ignores the network - is what the setting is for.

The verdict alone

The cost

	flows	delivered	the host's CPUs	streams that finished

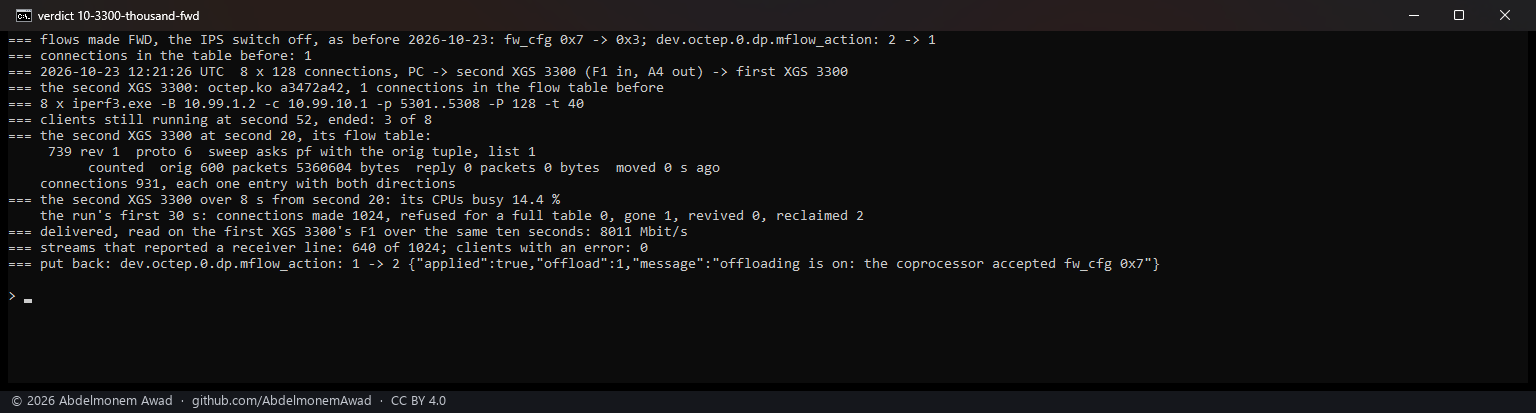

XGS 3300	FWD, the switch off	8,011 Mbit/s	14.4 %	640 of 1,024

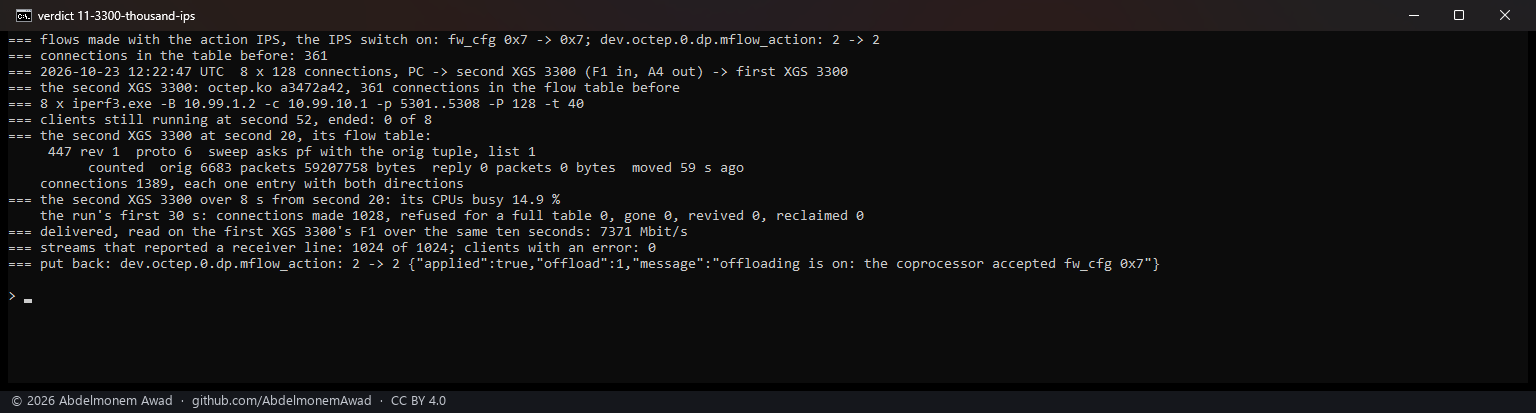

XGS 3300	IPS, the switch on	7,371 Mbit/s	14.9 %	1,024 of 1,024

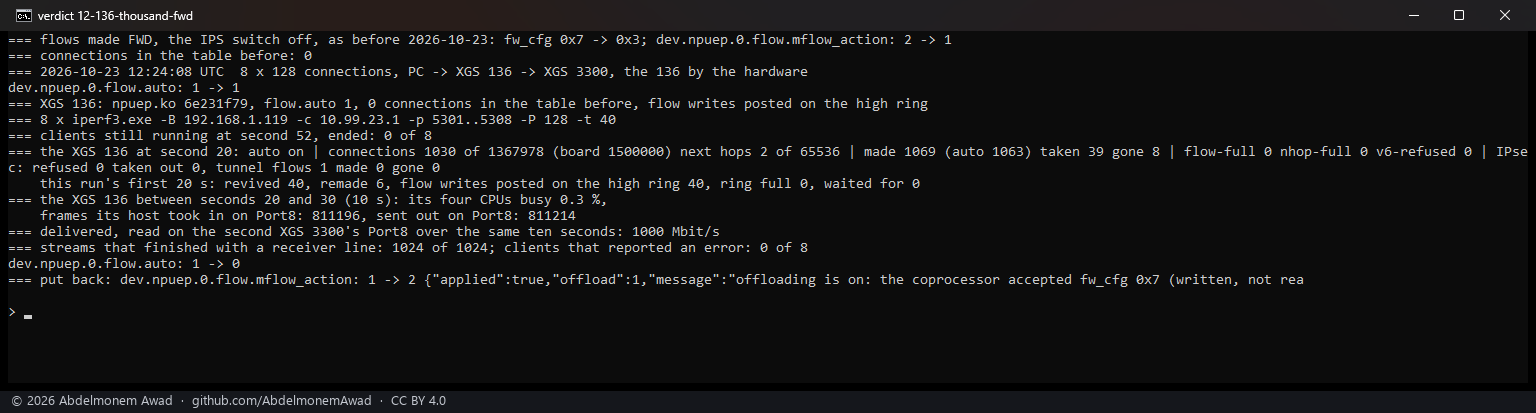

XGS 136	FWD, the switch off	1,000 Mbit/s	0.3 %	1,024 of 1,024

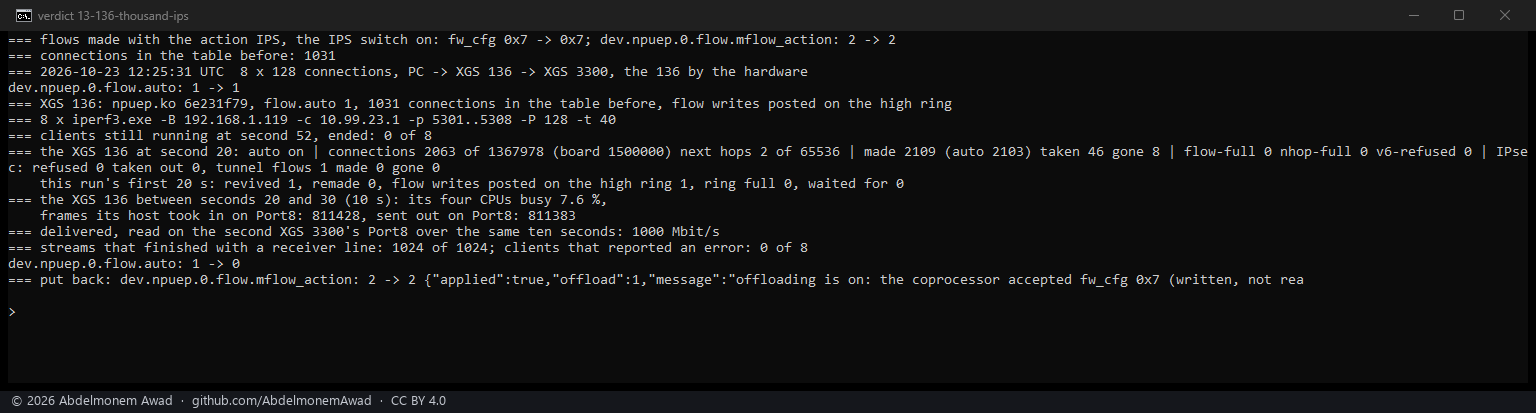

XGS 136	IPS, the switch on	1,000 Mbit/s	7.6 %	1,024 of 1,024

One run each is not a difference, and these are not the only runs: over the day the XGS 3300 ran 7,692 to 8,012 Mbit/s with FWD (six runs) and 7,371 to 8,086 with IPS (eight), its CPUs 13.8 to 17.0 % either way but for the first FWD run's 21.6; the XGS 136 ran 995 to 1,000 Mbit/s with both, its CPUs 0.3 to 7.3 % with FWD and 0.7 and 7.6 % with IPS. Its 7.6 % began with the last run's 1,031 connections still in its table to be taken out, and its 0.3 % with none. What the runs show is that a thousand connections fill the link the same either way.

What it found on the way

The thousand-connection run itself fails often, whichever the flows are made. Some clients could not open a stream - "unable to connect stream: Connection timed out" - or did not finish, on both families and with FWD as often as with IPS: on the XGS 3300 four of six FWD runs and three of eight IPS runs lost clients, on the XGS 136 two of four FWD runs and one of two IPS runs. Tracked in 695; it is not this change.

lab-136-many.sh leaves the XGS 136's flow maker off at its end - it was written for a run that needed it off. The runs here put it back as they found it.

What it does not do yet

• A tunnel's connections are made FWD, so a cut takes them out as before.
• A connection made before the setting was turned on keeps the action it was made with: DROP changes nothing for it, and the pf kill cuts it.
• "Send to IPS", the third verdict, hands a connection's frames to an inspector on a virtual function. Nothing here uses it; it is where Suricata and the offload would meet (the discovery).
