The thousand-connection run's lost clients: the bench, not the appliance, 2026-10-27

695: the thousand-connection run - eight iperf3 clients of 128 streams each, from the bench PC through the appliance to eight iperf3 servers on another one - lost clients in about one run in five, on both families, with the flows made in hardware and without them. A client says unable to connect stream: Connection timed out and gives up all 128 of its streams.

Measured here through the second XGS 3300 (vendor version 22): the PC's 10G port into its oxp0, out of its oxp12, to the servers on the first XGS 3300's oxp0 (vendor version 23). Both on OPNsense 26.7.7 (FreeBSD 15.1-RELEASE-p4) and 0.1.0-alpha.8.9, octep.ko 54a32be8; the second 3300 with its automatic acceleration on (dp.auto 1), as on 2026-10-25.

What loses the connection is the servers' own host, by design: a connection's four-tuple - both addresses, both ports - was still in TIME_WAIT there from the run before, and FreeBSD drops a SYN for such a four-tuple without an answer unless it carries a newer timestamp or a higher sequence number than the old connection's last. The PC's Windows TCP sends no timestamps. Runs started only once that TIME_WAIT had drained lost nothing in fifteen.

The run logs, the client outputs, the PC's captures (pcapng) and the second 3300's are local; the scripts are images/deploy/lab-3300-many-pc.sh, lab-3300-many-pf.sh and lab-3300-many-tw.sh, and the reports photographed here lab-695-report.sh.

Every SYN of a lost connection left the PC and arrived

The PC's own capture (pktmon on its 10G port, every TCP segment with SYN set to or from ports 5301-5308) against the second 3300's tcpdump of the SYNs arriving on its oxp0, nine runs back to back: three lost clients, thirteen connections in all. Each lost connection's SYN was sent five times

  • at 0, 1, 3, 7 and 15 s - and all five arrived on the second 3300's oxp0; no SYN-ACK came back for any of them. Every other connection's single SYN arrived and was answered.

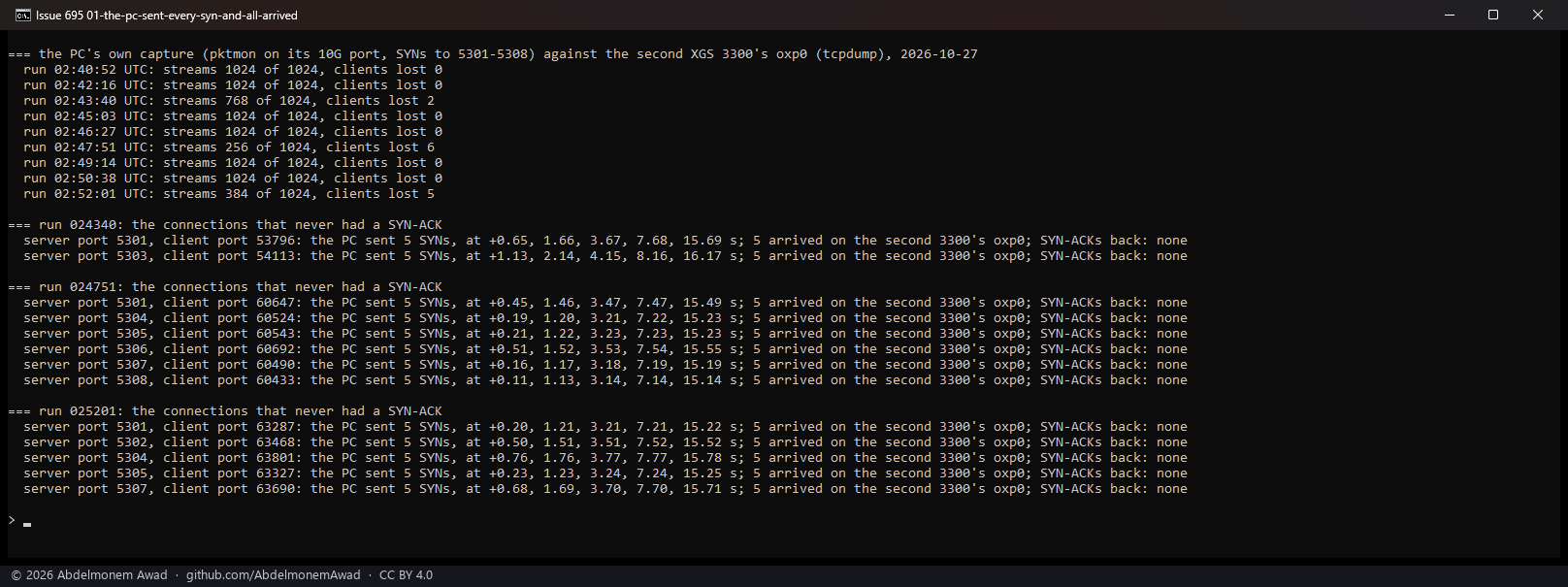

The PC's capture against the second XGS 3300's oxp0, nine runs of 2026-10-27: three with lost clients (2, 6 and 5); for each of the thirteen lost connections the PC sent five SYNs at about 0, 1, 3, 7 and 15 s, all five arrived on the second 3300's oxp0, and no SYN-ACK came back

The servers' host received all five and answered none

pf keeps a state for every connection it passes, with the packets counted each way, on both hosts. Read 25 s into each of fifteen runs, two of them with a loss (four connections): each lost connection had a state on the second 3300 and on the first, both CLOSED:SYN_SENT with 5:0 packets

  • five SYNs through, nothing back. The first 3300, where the servers listen, took all five in and sent nothing; its TCP made no syncache entry for them (as many entries as connections accepted) and counted no drop of any kind.

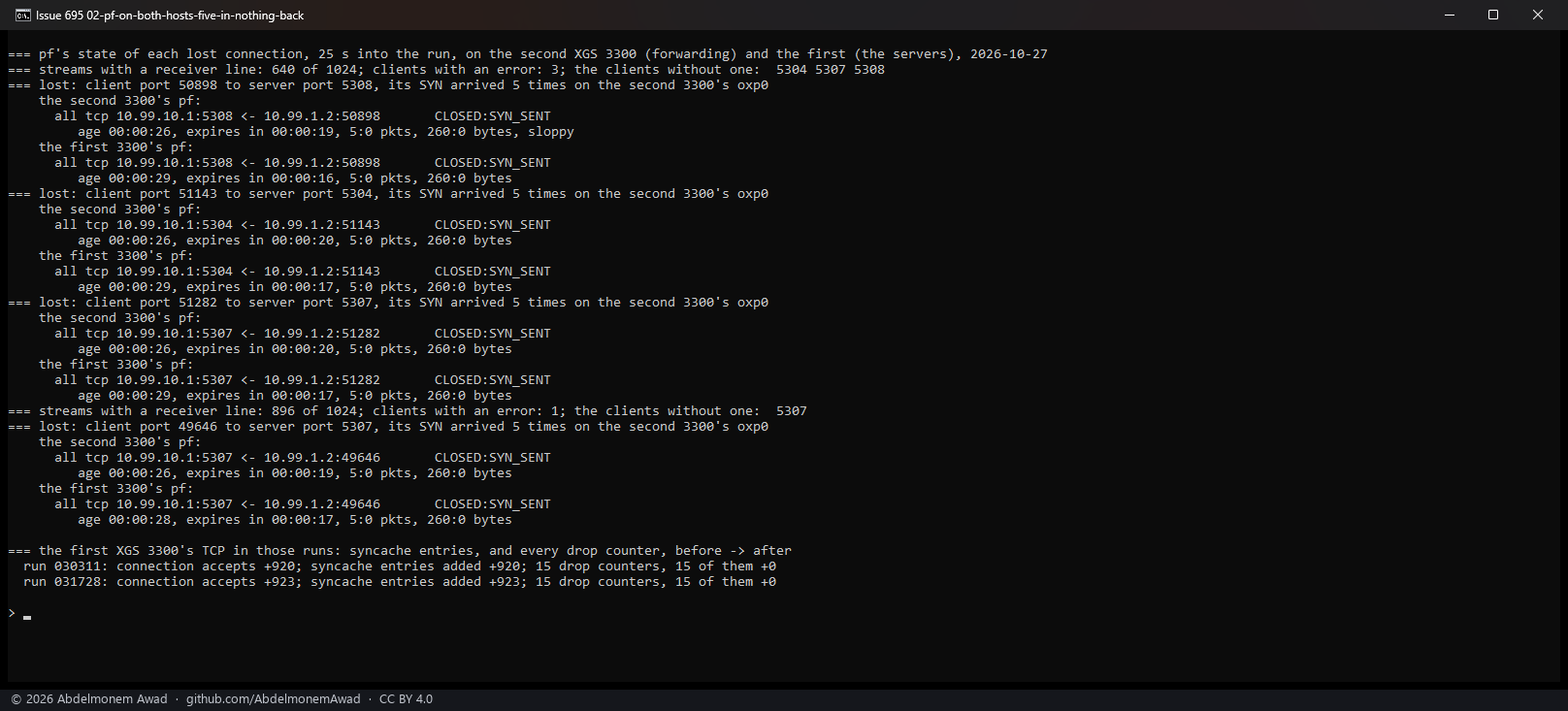

pf's state of each lost connection 25 s into the run, on both XGS 3300s: CLOSED:SYN_SENT, 5:0 packets on each; the first 3300's TCP in those runs: syncache entries the same as connections accepted, fifteen drop counters all +0

Why: FreeBSD's TIME_WAIT check, and a client without timestamps

A SYN whose four-tuple belongs to a connection in TIME_WAIT goes to tcp_twcheck (sys/netinet/tcp_timewait.c). It ends the old connection and lets the new one start only if the SYN carries a timestamp newer than the old connection's, or - with no timestamps on either - if its sequence number is above the last one the old connection received. Otherwise it reaches "Drop the segment if it does not contain an ACK": dropped, with no answer, no counter and no log line. A retransmitted SYN repeats the first one's sequence number, so the retransmissions go the same way until the TIME_WAIT runs out - twice net.inet.tcp.msl, 60 s. The client gives up before that.

The PC's Windows TCP has timestamps "allowed", which is to say it does not offer them: the 981 SYNs it sent in one run carried MSS, window scale and SACK-permitted, and no timestamp.

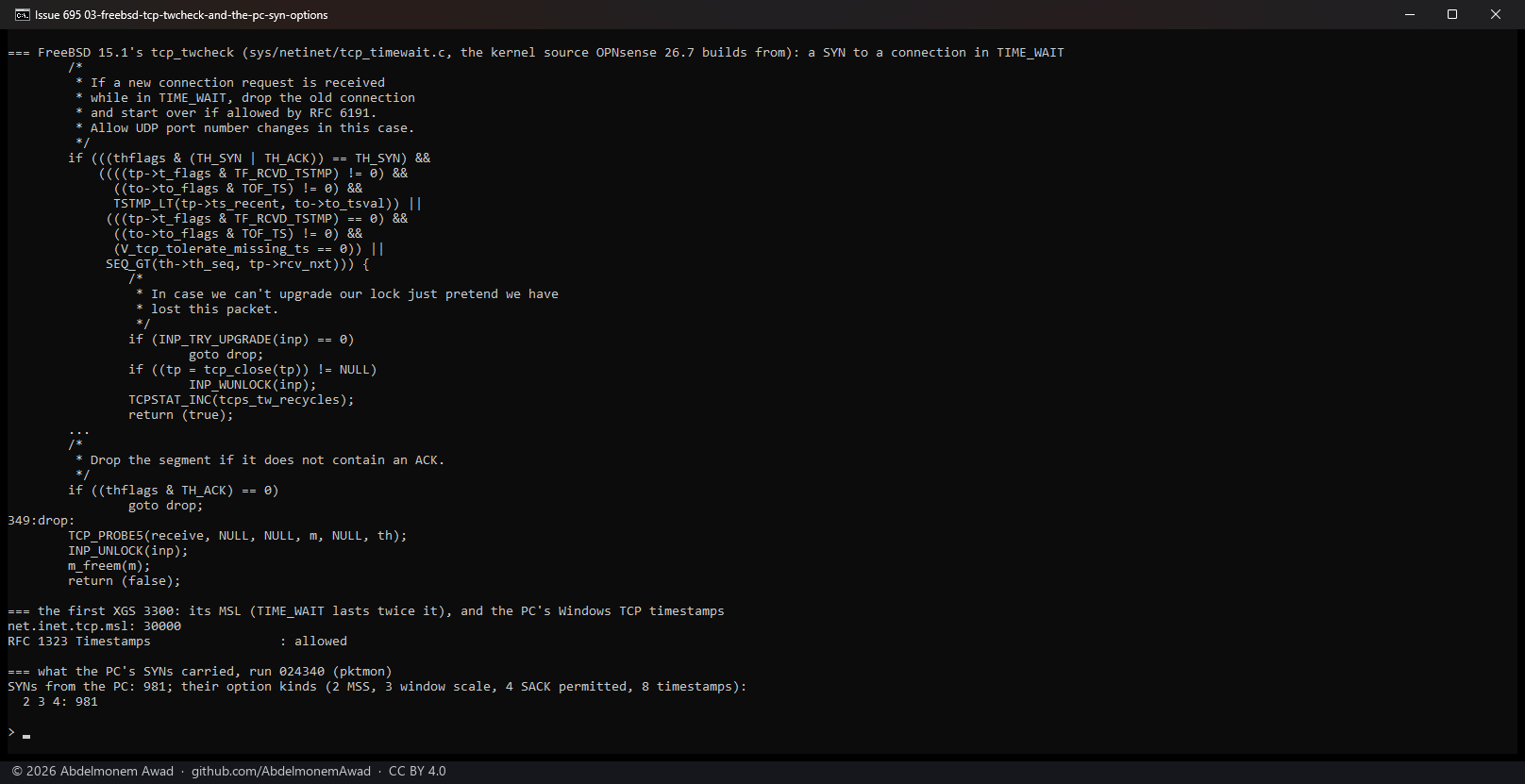

FreeBSD 15.1's tcp_twcheck from the kernel source OPNsense 26.7 builds from: a SYN for a connection in TIME_WAIT starts a new one only with a newer timestamp or a sequence number above rcv_nxt, otherwise goto drop; the first XGS 3300's net.inet.tcp.msl 30000; the PC's Windows TCP timestamps "allowed"; the 981 SYNs the PC sent in one run carried options 2, 3 and 4 - no timestamp

The first 3300 closes many of the run's connections itself, and holds them in TIME_WAIT after the run - up to 95 just before the runs below, 117 after one. The scripts started the next run about 45 s after the last one's streams ended, inside that minute, and the PC gave some four-tuples out again: its client port to the same server port.

Tested: every lost connection had met a TIME_WAIT

Eleven runs back to back, the first 3300's sockets listed just before the clients started and every connection of the run looked up in that list: three connections in two runs found their four-tuple in TIME_WAIT there, and those three were exactly the three lost. None did in the nine runs that lost nothing.

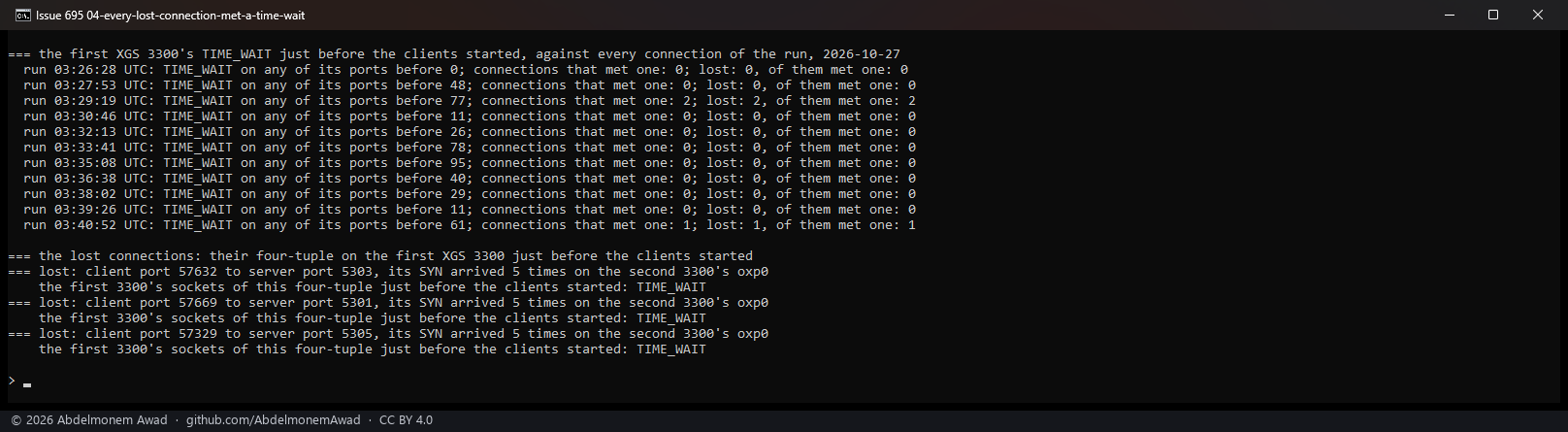

The first XGS 3300's TIME_WAIT just before the clients started, eleven runs: three connections met one, in the runs of 03:29 and 03:40 UTC, and they were the three lost; the lost connections' four-tuples were in TIME_WAIT on the first 3300 before their run

Runs started after that TIME_WAIT drained lost nothing

Fifteen runs, each started only once no connection to the servers' ports was left in TIME_WAIT on the first 3300 - a wait of 0 to 25 s: 1,024 streams of 1,024 in every one, no client lost. Back to back the same day, seven runs of thirty-five had lost clients.

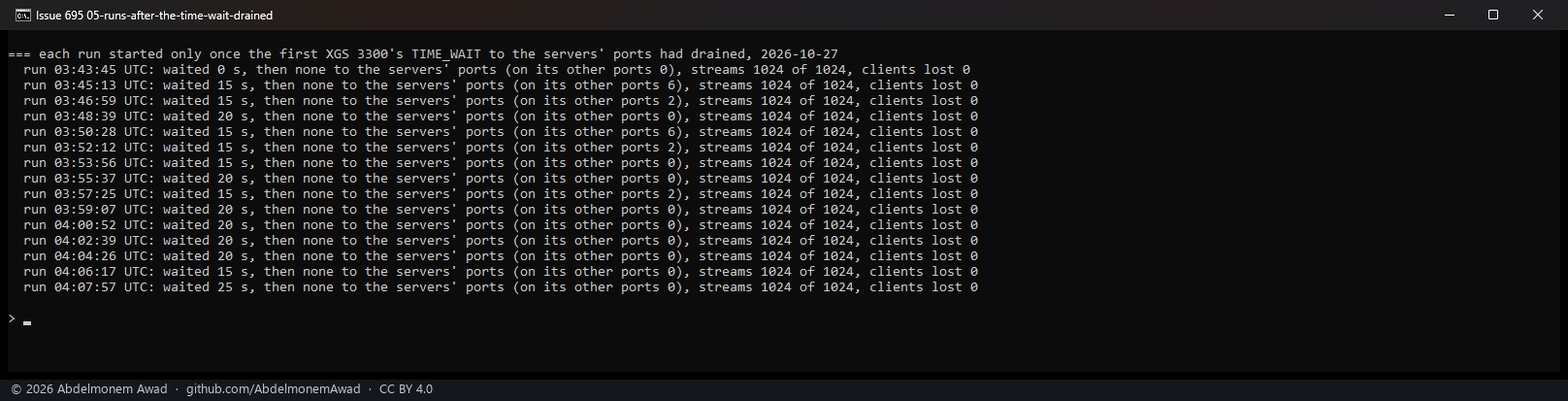

Fifteen runs, each after the first XGS 3300's TIME_WAIT to the servers' ports had drained (0 to 25 s): 1024 of 1024 streams in each, no client lost

What it means

  • The appliance does not lose these connections. The loss is the servers' host keeping a four-tuple from the run before; it does the same with no appliance between, and it is why the run lost clients as often with the flows made in hardware as without them (2026-10-25: 5 of 33 and 5 of 30).
  • The kind that "did not finish" - every connection arrived, some SYNs retransmitted, a client still running at second 52 - fits the same cause: a SYN that met a TIME_WAIT which ran out while it retried connects late, and the client's 40 seconds begin only when all of its streams are open. Not measured on its own.
  • The XGS 136's runs (lab-136-many.sh, 2026-10-23) are the same harness against servers on the second XGS 3300; not run again, most likely the same.
  • The runs from now on wait for that TIME_WAIT to drain (lab-3300-many-tw.sh with DRAIN=1).

A correction

On 2026-10-25 I wrote in the issue that a lost connection's SYN and its retransmissions never reached the second 3300's host, so that the loss was between the PC and it. My own captures of that evening already showed otherwise: in every failed run the lost connection's SYN is there five times on the second 3300's oxp0. I had counted the connections against the streams a client opened, and was one short. Struck there, with this page.
