A logger for the coprocessor's console, built and measured, 2026-10-25

Discovery 27 of the discoveries. The vendor's board package keeps everything the coprocessor prints on its console in a file, "to catch NPU crashes" (xgs-npu-serial-logger.sh: it reads the console's serial port and appends each line). os-xgs-npu used the console only to send commands, so what the coprocessor said when it failed was lost (454, 768). Measured on the second XGS 3300 (SFOS 22's coprocessor software), the first (SFOS 23's) and the XGS 136 (SFOS 21's), with octep.ko 6cde3fde, npuep.ko 590205fb and the scripts of this change (images/deploy/lab-console-idle.sh, lab-console-wdt.sh, lab-console-log-test.sh, lab-console-log-wdt.sh).

What the console says

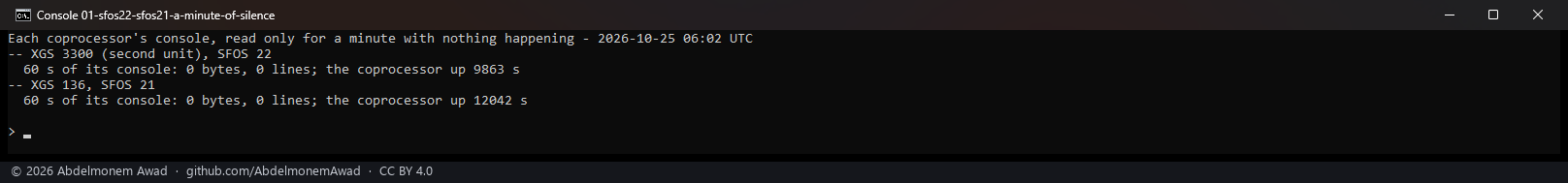

The second XGS 3300 and the XGS 136: a minute of each coprocessor's console, read only, with nothing happening - 0 bytes on both

Nothing, while nothing happens: a minute of each console, read only, was 0 bytes. What it prints comes when something does - the coprocessor's kernel messages, and its boot when it restarts.

The logger: console_log.py

scripts/xgs/console_log.py, started by a start hook at every boot (68-xgs-console-log) and stopped at an orderly shutdown (06-xgs-console-log), keeps the console in /var/log/xgs/npu-console.log (the older half in .1 past 1 MB). It never writes to the port: a byte sent there is a keystroke for the coprocessor's boot firmware, whose menus and countdown take one. It holds the port under the lock npu-run.sh already takes for the console, and gives both up within half a second when a caller needs the console - npu-run.sh when the management link does not answer, switch-jumbo.sh at boot

which leaves a pause file for the time it uses it. Each read is written at once with O_SYNC, and the support bundle carries the last 256 KB of the file (coprocessor-console.txt, problem-reports.md).

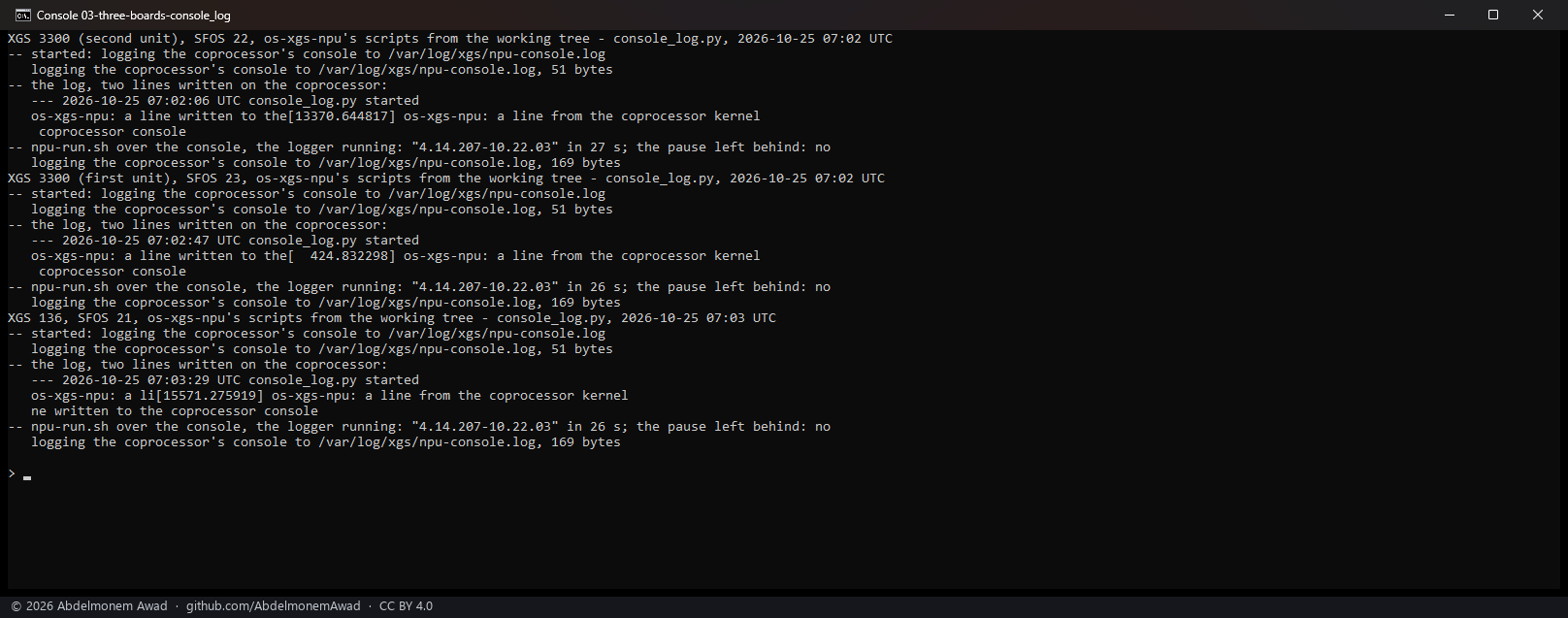

console_log.py on the three boards, SFOS 22, 23 and 21: started; a line written to the coprocessor's console and one from its kernel, both kept; npu-run.sh over the console with the logger running, answered in 26-27 s, the pause gone after; the logger reading again

On all three it started, kept a line written to the coprocessor's /dev/console and a line from its kernel, stood aside for npu-run.sh over the console - answered in 26 to 27 s, as the console always takes - and read again after it. Its start hook started it at the boot of each board, and on the second XGS 3300 and the XGS 136 the switch's frame limit was set at the same boot as before, beside it.

Across the second XGS 3300's own reboot

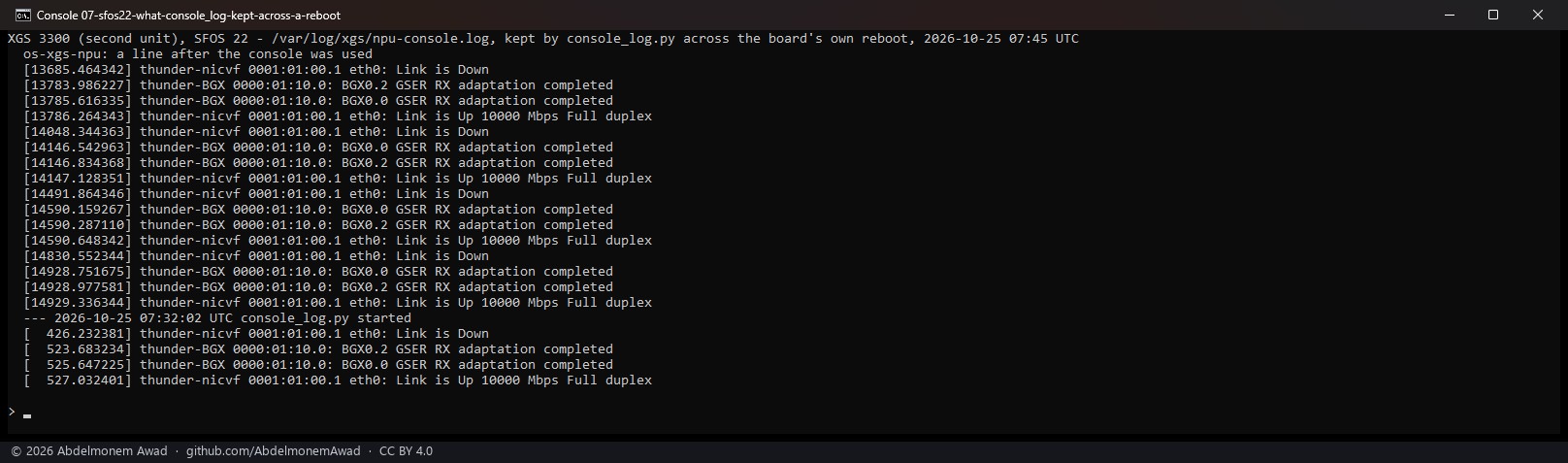

What console_log.py kept on the second XGS 3300 across its own reboot: its coprocessor's kernel reporting one of its 10 Gbit/s ports down and up, five times, each when the first XGS 3300 at the cable's other end restarted, then the logger started again at the boot

In forty minutes it kept what nothing else on the host had: the coprocessor's kernel reporting one of its 10 Gbit/s ports down and up - five times, each at a time the first XGS 3300 at the other end of a cable restarted - and it went on doing so after the board's own reboot.

Through a coprocessor reset

When the first XGS 3300's coprocessor is reset by its own watchdog, its host freezes and is restarted by its own watchdog 220 s later (copro-health-2026-10-25). Whatever a logger has on the disk by the freeze is all that is left; so the reset was made ten times, with three loggers.

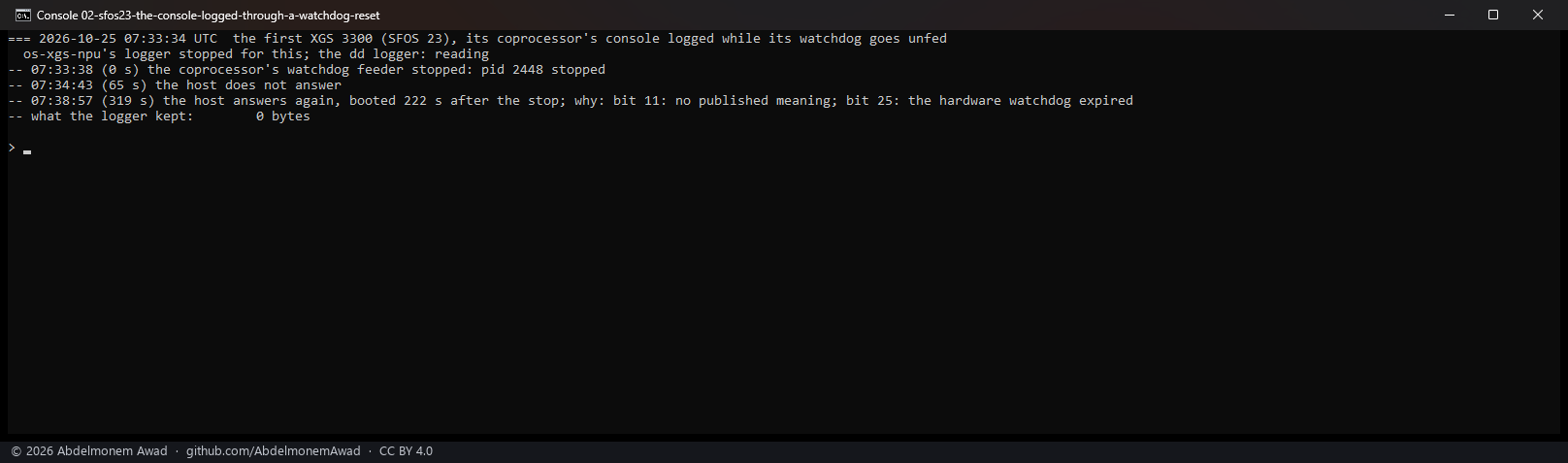

The vendor's way, dd reading the console with O_SYNC, os-xgs-npu's logger stopped for it: the coprocessor's feeder stopped, the host silent at 65 s and back after 222 s, 0 bytes kept this time

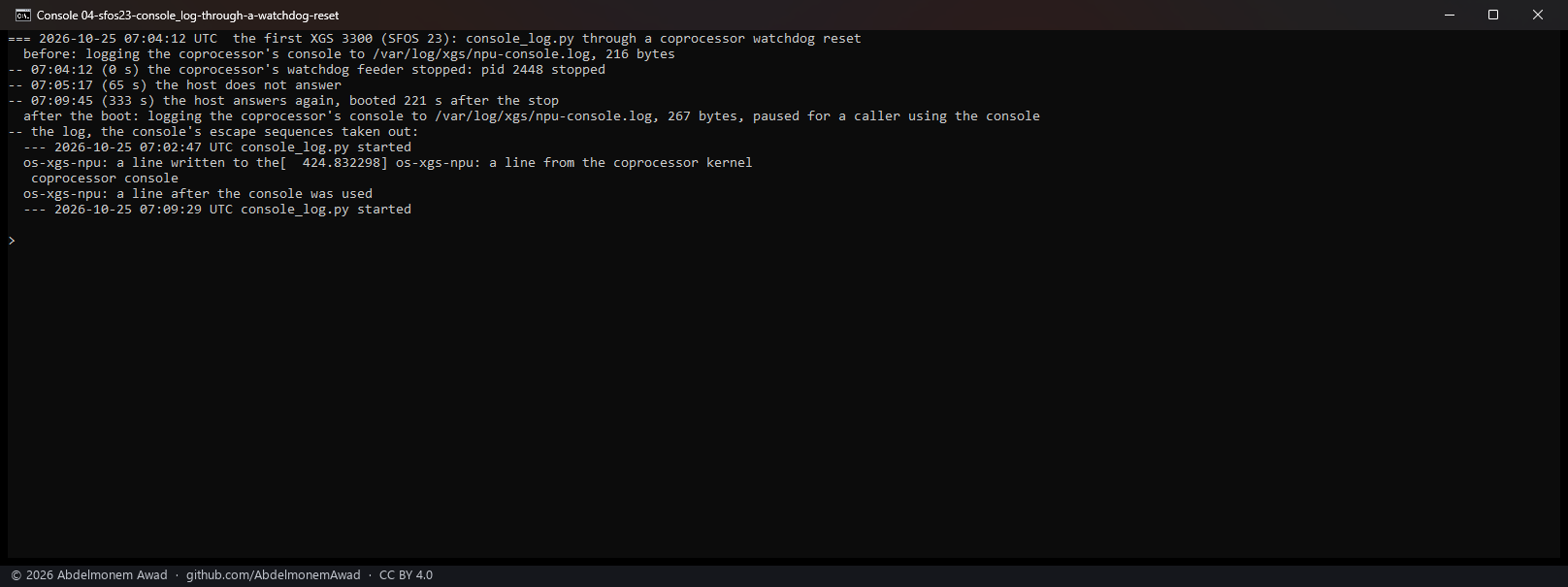

console_log.py through the same reset: nothing of the coprocessor's boot kept, its next start at the boot

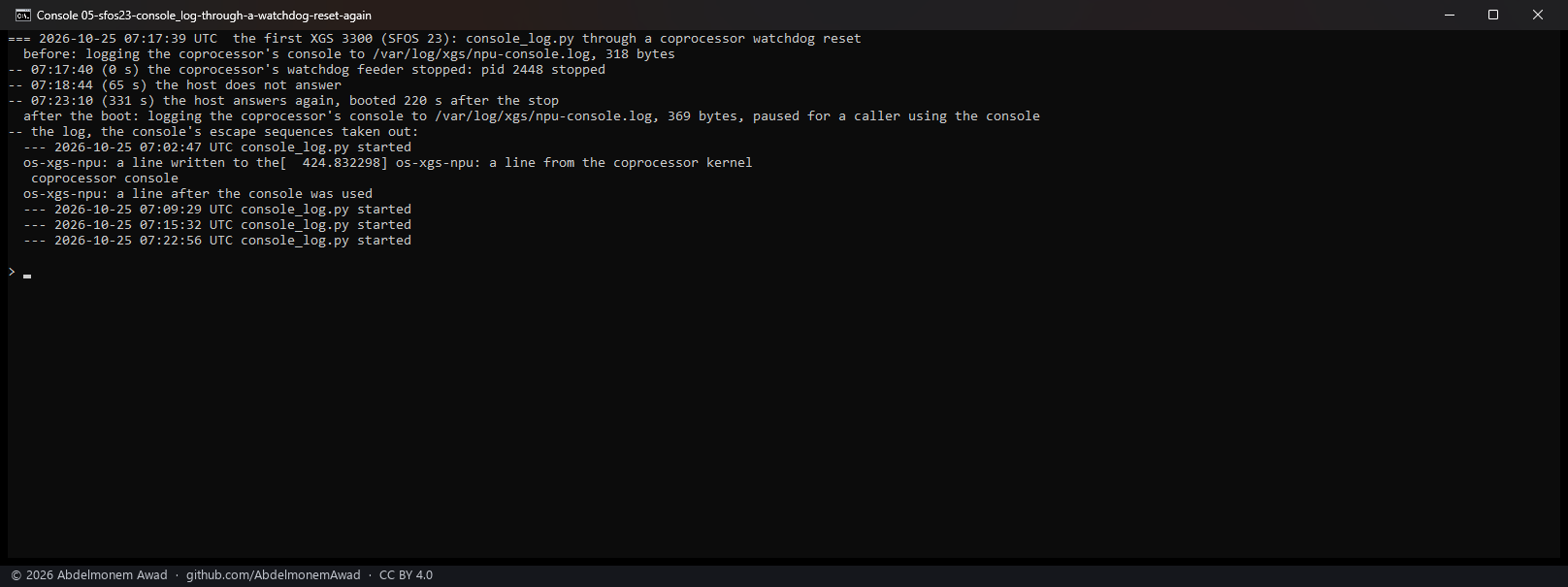

console_log.py through the same reset again: nothing kept

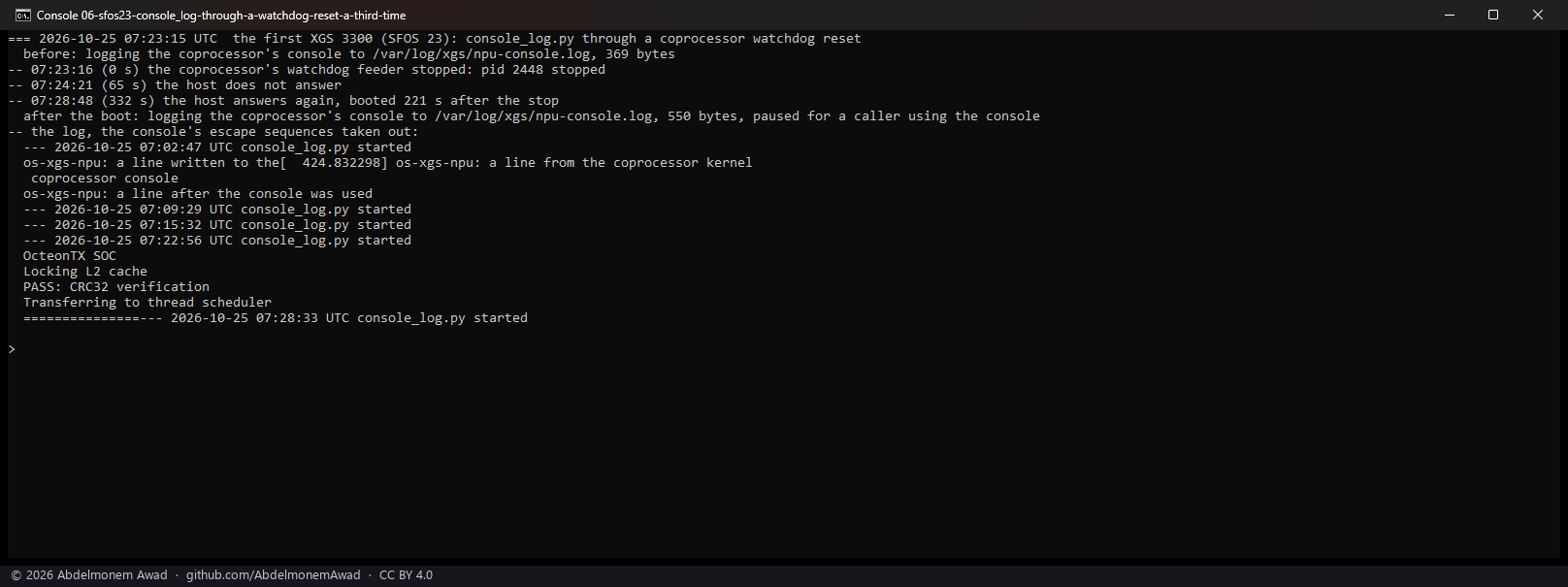

console_log.py through the reset a third time: the coprocessor's boot stub kept up to its fifth line - OcteonTX SOC, Locking L2 cache, PASS: CRC32 verification, Transferring to thread scheduler - before the host froze

the logger	runs	what was on the disk after the freeze
dd reading the port, `oflag=sync` - the vendor's way, done to the disk at once	4	512, 512, 512 and 0 bytes of the coprocessor's boot stub
`cat` into `dd` - the first version of this logger	1	0: `dd` waits for a whole block from a pipe, and a frozen host never ends it
`console_log.py`	5	about 700 bytes - up to "Press 'B' within 5 seconds for boot menu" - then 0, 0, 0 and 130

What it kept, when it kept anything, was the coprocessor's boot stub beginning again - OcteonTX SOC, OcteonTX Boot Stub, its firmware's version and board - so the coprocessor itself had reset at 60 s, and printed nothing before it. The host froze within tens of milliseconds of that: a logger keeps the first lines of such a reset in about half the runs, and what the coprocessor prints while the host stands - as the port messages above - in full.

What it does not say

The XGS 136's coprocessor reset was not tried: its host is reached only through the coprocessor's own ports on this bench, so a frozen one could not be reached (copro-health-2026-10-25).
The coprocessor's boot at a cold start of the appliance is over before the logger starts with the host's start hooks; it is the restarts on its own that the logger sees.
