Two front ports: nothing crosses in the switch, and the host's rules decide, 2026-10-25

Discovery 21 of the discoveries. The vendor's TCAM sends every frame that comes in at a front port behind the switch to the coprocessor, so two devices on two of those ports should never reach each other inside the switch. Whether the host's rules then see what passes between them was left to be measured. The XGS 136 and the second XGS 3300 are joined by two cables, each from a switch port to a switch port - the 3300's Port6 to the 136's Port7, its Port8 to the 136's Port8 - so each board stood for the two devices while the other was the board under test: the second XGS 3300 on SFOS 22's coprocessor software (octep.ko 6cde3fde) and the XGS 136 on SFOS 21's (npuep.ko 590205fb) (images/deploy/lab-frontports.sh, lab-frontports-136.sh, lab-tcam-read.sh).

A frame for the other port's device does not cross

The device on one port sent ten pings to an address it had been told belonged to the MAC address of the device on the other port - so each frame came in at the first port addressed, at the Ethernet layer, to the device behind the second.

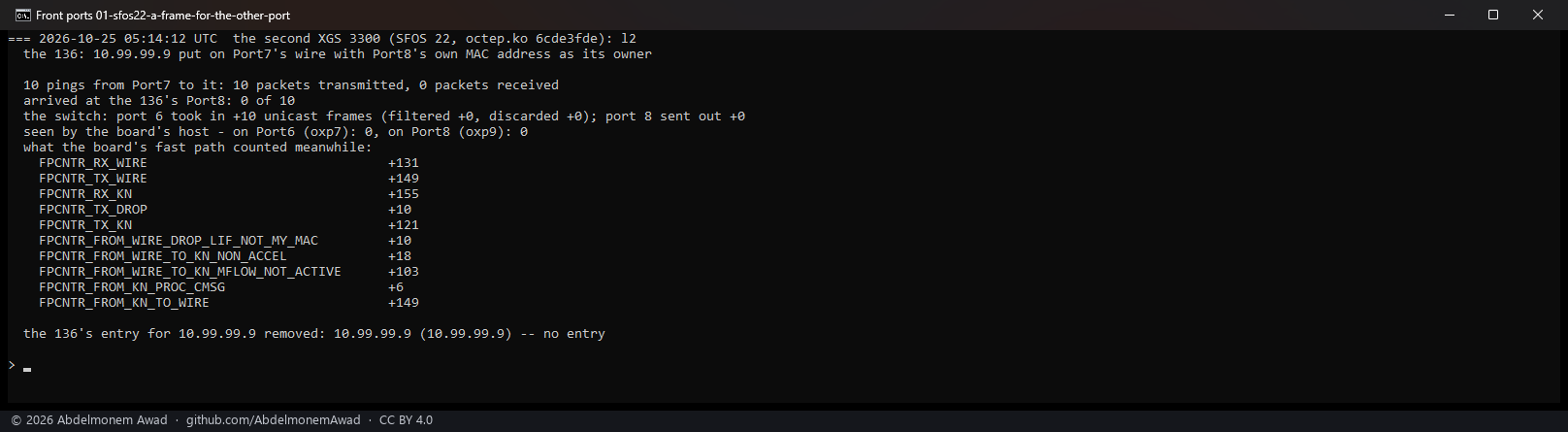

The second XGS 3300, SFOS 22: ten frames into its Port6 addressed to the MAC of the device on its Port8 - the switch took in 10 at port 6 and sent out none at port 8, none arrived, none on the host's captures, and the fast path dropped all ten as not addressed to the port

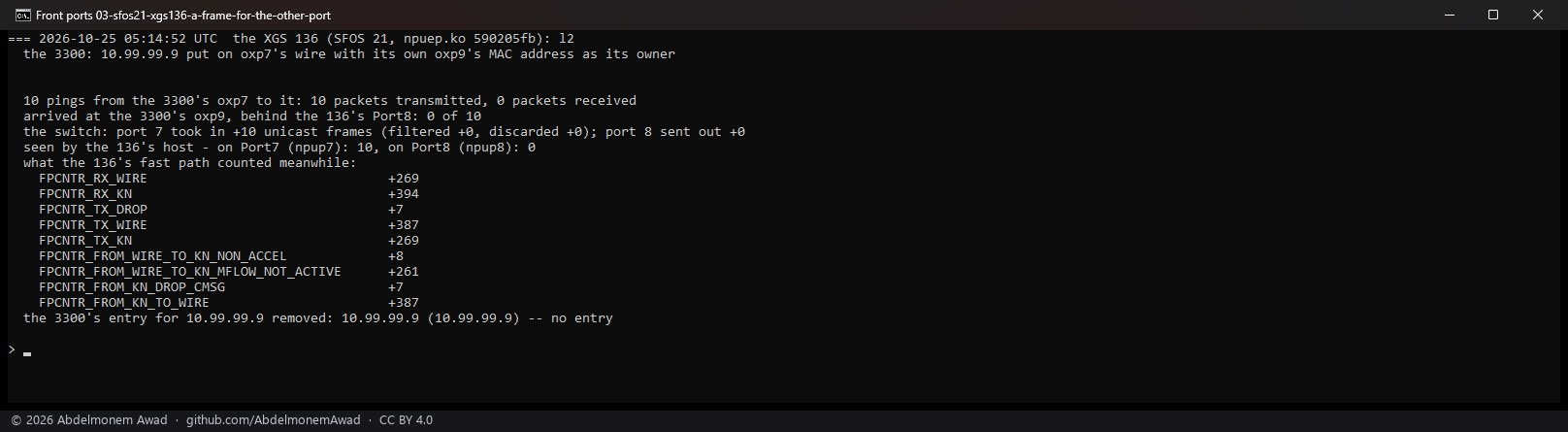

The XGS 136, SFOS 21: the same into its Port7 - the switch took in 10 at port 7 and sent out none at port 8, none arrived, and the host saw the ten on Port7

the board under test	the switch, in at the first port / out at the second	arrived at the device	where they went
second XGS 3300, SFOS 22	10 / 0	0 of 10	the fast path dropped them as not addressed to the port (`FROM_WIRE_DROP_LIF_NOT_MY_MAC` +10)
XGS 136, SFOS 21	10 / 0	0 of 10	to the host, which saw the ten on the port they came in at

The switch carried none across, on either. On the XGS 3300 the fast path took all ten in each run, and in some runs dropped part of them and gave the rest to the host as not accelerated (FROM_WIRE_TO_KN_NON_ACCEL), whose capture on the port showed none; on the XGS 136 the host had them. A frame that is not for the board's own address goes no further than the board.

Routed between two front ports, the host's rules decide

Two addresses on the device side, each routed to the other through the board under test - in at one switch port, out at the other, and back - and between them pings, a TCP connect and a stream. Then a block rule from the one to the other on the first port's interface, added as the Rules page saves one (the Filter model, the filter reloaded); then the connection's states killed as Diagnostics: States does it (kill_states.py); then the rule removed.

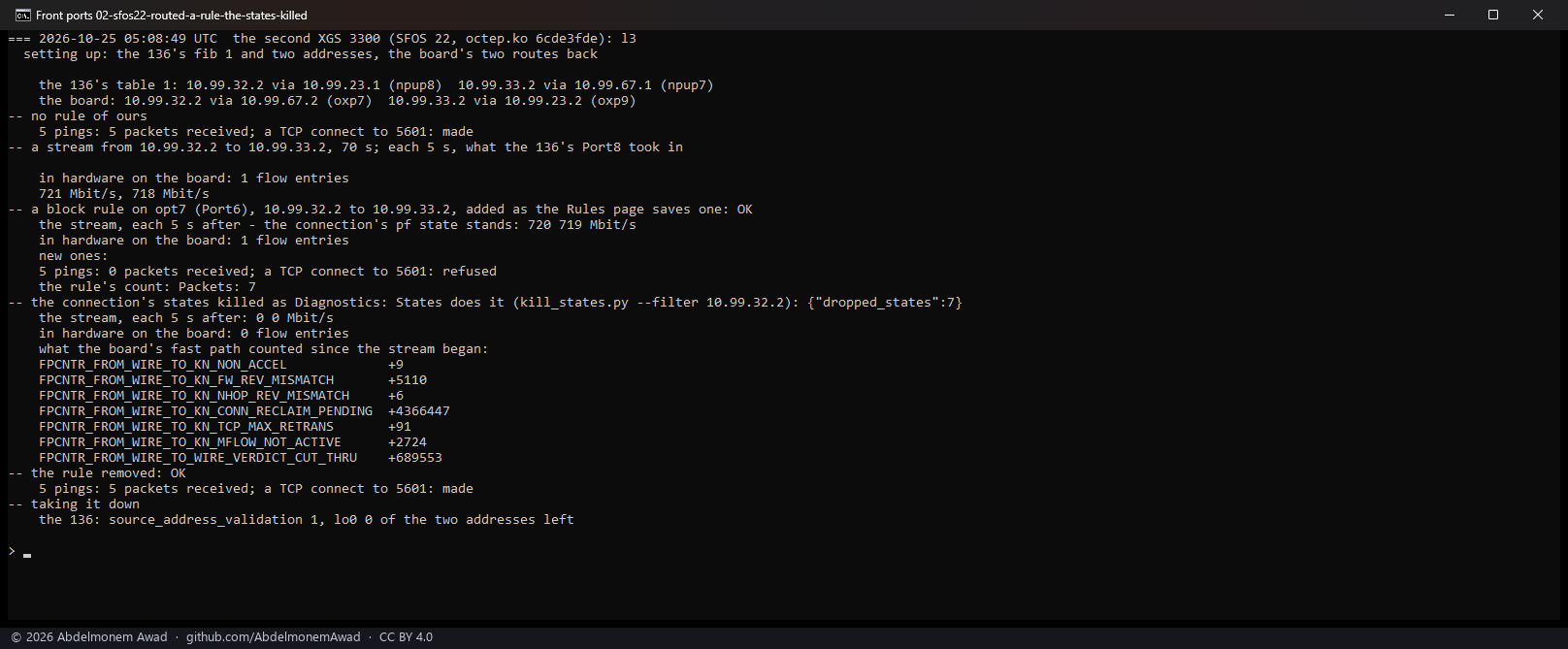

The second XGS 3300: routed between Port6 and Port8 - pings and a connect through, a stream at 710 Mbit/s in hardware; the block rule: the stream on at 712 and 713, new pings none and the connect refused, the rule's count 7; the states killed: the stream at 0 and out of hardware; the rule removed: through again

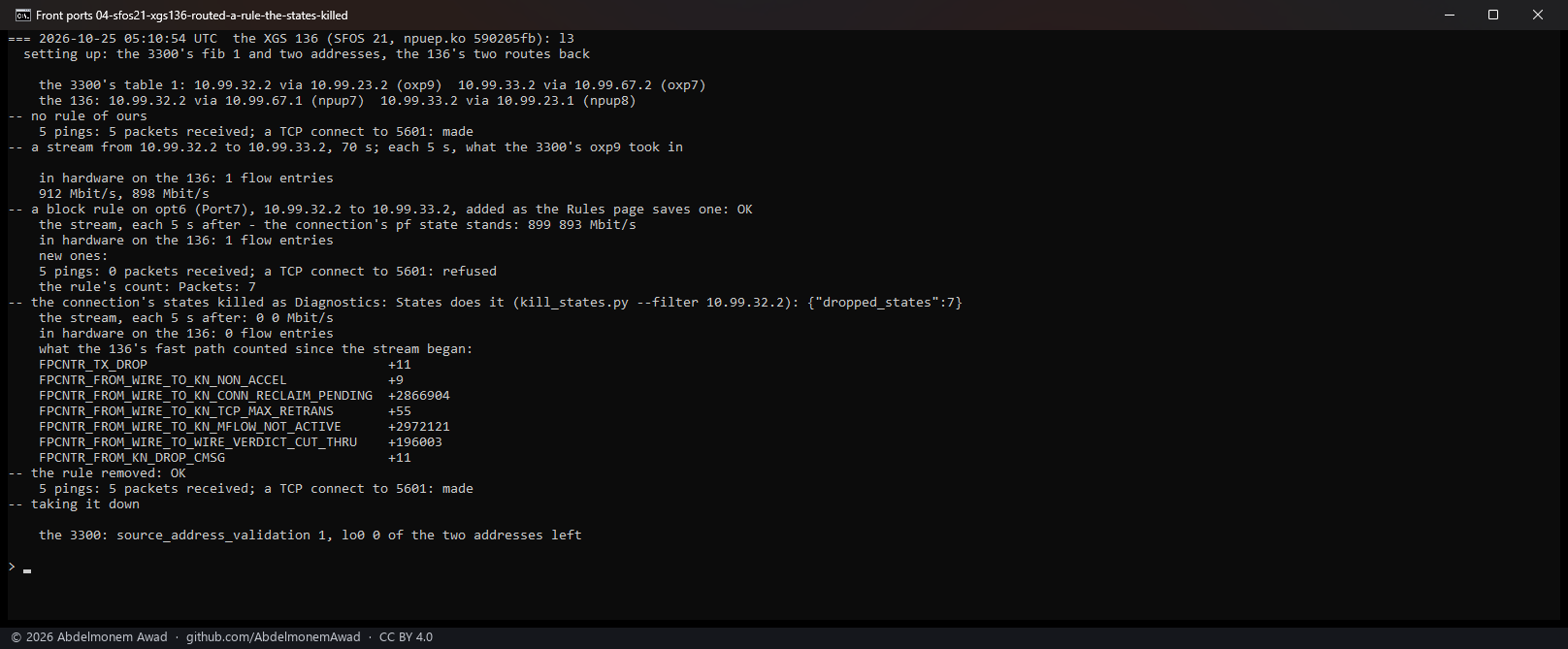

The XGS 136: the same between its Port7 and Port8 - the stream at 912 Mbit/s in hardware; with the rule, on at 899 and 893 while new pings and the connect were refused; the states killed: 0, out of hardware; the rule removed: through again

	second XGS 3300, SFOS 22	XGS 136, SFOS 21
no rule: pings, a TCP connect	5 of 5, made	5 of 5, made
a stream	710, 672 Mbit/s, in hardware	912, 898 Mbit/s, in hardware
the block rule added: the stream already running	712, 713 Mbit/s, still in hardware	899, 893 Mbit/s, still in hardware
the block rule: new pings, a new connect	0 of 5, refused - the rule counted 7	0 of 5, refused - the rule counted 7
the connection's states killed	the stream 0, 0 Mbit/s, out of hardware	the stream 0, 0 Mbit/s, out of hardware
the rule removed	5 of 5, made	5 of 5, made

Everything new between the two ports met the rule, and the connection already running went on because pf's state for it did - which is what pf does on any firewall, the coprocessor or not: a rule decides new connections, a state carries an existing one. The reload took the connection out of hardware for a while (FROM_WIRE_TO_KN_FW_REV_MISMATCH +3,706 on the XGS 3300, the flow table's revision bumped by the reload) and the host carried it - CONN_RECLAIM_PENDING counts millions of its frames - while it stood; killed, it stopped at once and left the hardware on both boards.

The TCAM on all three versions

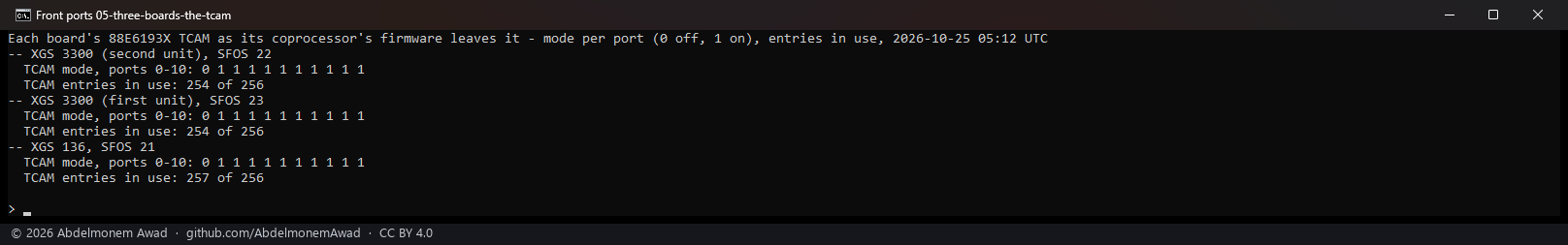

Each board's TCAM as its firmware leaves it: on for ports 1 to 10 and off for port 0 on all three; 254 of 256 entries in use on both XGS 3300s, SFOS 22 and 23, and on the XGS 136 a walk of the entries that did not end

The TCAM is on for every front port and off for the coprocessor's, on SFOS 22, 23 and 21 alike, and both XGS 3300s hold 254 entries. On the XGS 136 the walk through them, done as on the XGS 3300s, did not reach an end - three times the same - so its entries were not counted. The first XGS 3300 (SFOS

23) was read only: of its switch ports only the WAN and Port4 have a link, Port4 with no address on it, so no two of them join the lab's boards.

What it means for os-xgs-npu

Nothing to build: two devices on two front ports reach each other only through the board, and what passes is what the host's rules and states allow - in hardware too, where a killed state or a ruleset reload takes a connection out. The XGS 3300's fast path drops a frame that is not addressed to the port it came in at, rather than giving it to the host every time.

What it does not say

Two ports in one OPNsense bridge, where the host forwards by MAC - measured as flows on 2026-10-24, not with a rule between the members.
Why the XGS 3300's fast path drops some frames that are not for its port and gives others to the host, and why the host's capture showed none of those.
How many of the XGS 136's TCAM entries are in use.
