The ciphers nobody had tried: SHA-384 taken, ChaCha20 refused, 2026-10-25

Discovery 15 of the discoveries. The engine's cipher list names ChaCha20, AES with no encryption (GMAC), counter mode and 3DES besides what had been measured, and SHA-384 had not been run. What decided which to try: OPNsense's IPsec page offers ESP proposals with SHA-384 and ChaCha20-Poly1305, and none with GMAC or AES-CTR - so an owner can choose the first two and not the others - and the vendor's own host (generate_usfp_control) offloads AES-CBC with an HMAC, AES-GCM and AES-GMAC, never ChaCha20, CTR or 3DES.

Each was run on a lab tunnel with one end's engine against the other end's kernel - FreeBSD's own cipher, the reference - so a packet that arrives proves the engine did the standard thing: the tunnel between the two XGS 3300s, each end's engine in turn (dev.octep.0.ipsec.on choosing which takes the associations), and the XGS 136's tunnel to the second XGS 3300 with the XGS 136's engine. The child's proposal was set on both ends as the IPsec Connections page saves it, the child brought up again, and 40 pings and a stream each way sent through it (images/deploy/lab-cipher.sh, lab-cipher-136.sh). The first runs, in the tables, with octep.ko e9241bfd and npuep.ko 590205fb, main's after #762; the pictures with 1f069cf7 and 23d1c2dc, main of that hour with the ChaCha20 experiment below added - off unless asked for, and not kept.

SHA-384: taken, on all three versions

Both drivers already offered an AES-CBC association with HMAC-SHA-384 to the engine - the vendor's CRYPTO_HASH_SHA384_192, a 24-byte ICV - and it had never run.

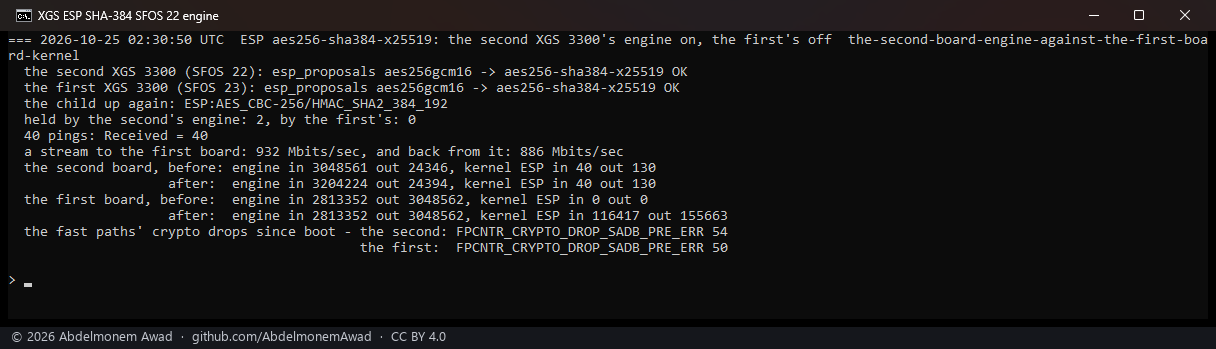

The second XGS 3300, SFOS 22, its engine against the first board's kernel with AES-256-CBC and HMAC-SHA-384: 40 pings answered, 932 Mbit/s one way and 886 the other

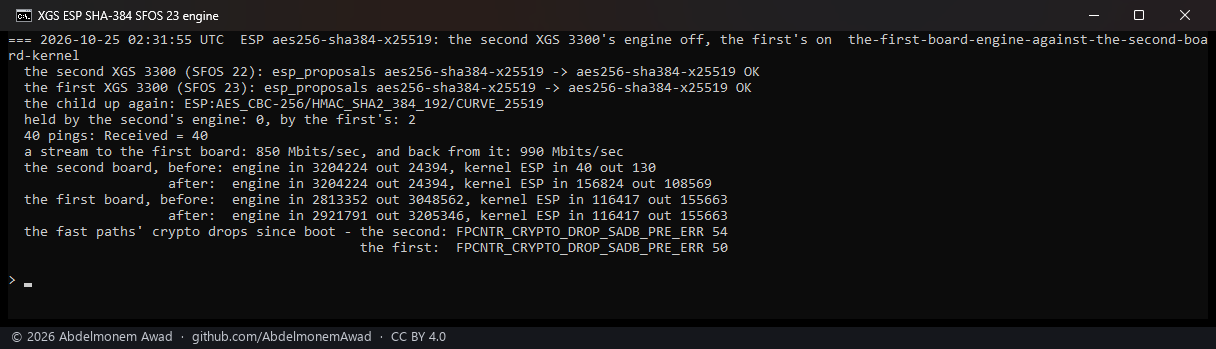

The first XGS 3300, SFOS 23, its engine against the second board's kernel: 40 pings answered, 850 and 990 Mbit/s

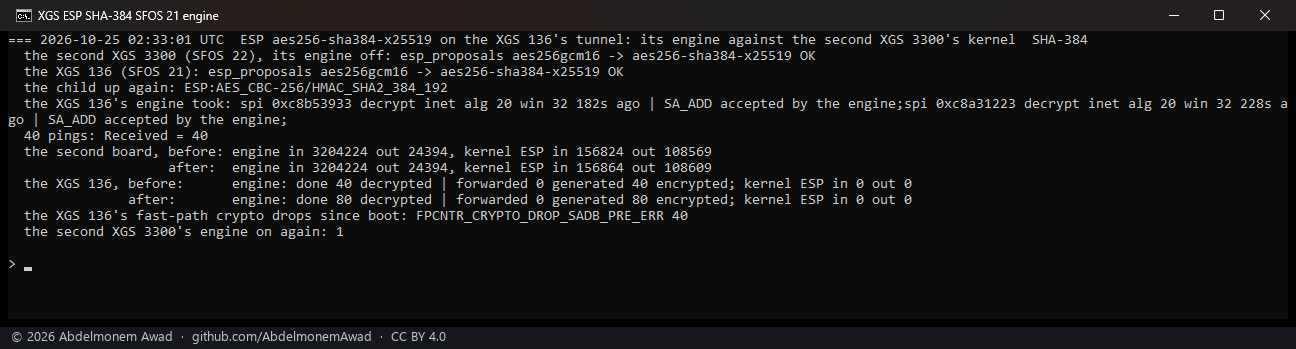

The XGS 136, SFOS 21, its engine against the second XGS 3300's kernel: 40 pings answered, the engine decrypting and encrypting all of them

the engine against 40 pings the engine decrypted / encrypted, the kernel the other side of each streams
second XGS 3300, SFOS 22 the first's kernel 40 154,606 in, the stream to the first board in its fast path 932 / 886 Mbit/s
first XGS 3300, SFOS 23 the second's kernel 40 110,873 / 159,166, the kernel's counts the same 850 / 990 Mbit/s
XGS 136, SFOS 21 the second XGS 3300's kernel 40 40 / 40, the kernel's the same -

The streams are the kernel's rate, which does the other end in software; with both XGS 3300s' engines, an earlier run of the same proposal carried 9.80 Gbit/s one way and 3.13 the other, the kernels idle. The figures in the table are from the runs before the pictures; the pictures' own agree.

ChaCha20-Poly1305: refused by the datapath, on all three versions

Neither driver offered it. As an experiment, both were given it behind a switch, off by default (ipsec.chacha): laid out as AES-GCM is - a 32-byte key with the salt after it, an 8-byte IV, a 16-byte ICV, the trailer padded to 4, RFC 7634's sizes - with the engine's CRYPTO_CIPHER_CHACHA20 and CRYPTO_HASH_POLY1305_128. Every engine took the association (SA_ADD answered 0), and every engine then dropped every frame of it.

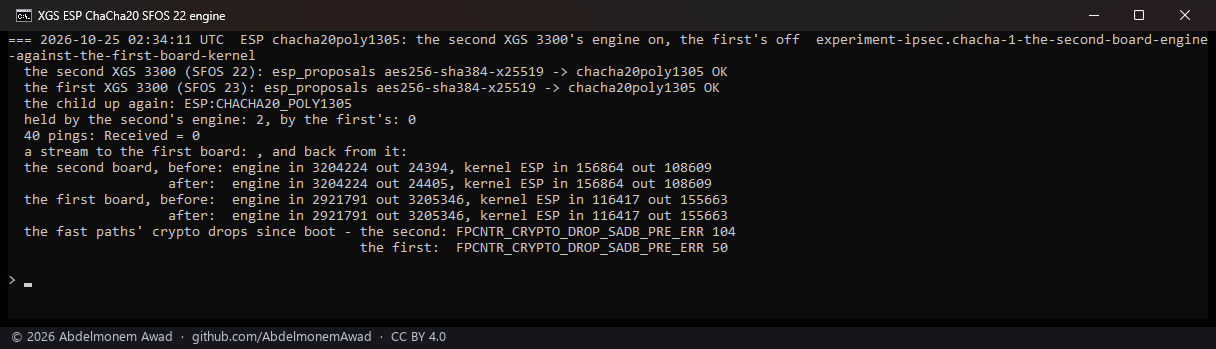

The second XGS 3300's engine with ChaCha20-Poly1305: no ping answered; its fast path's CRYPTO_DROP_SADB_PRE_ERR up by 50

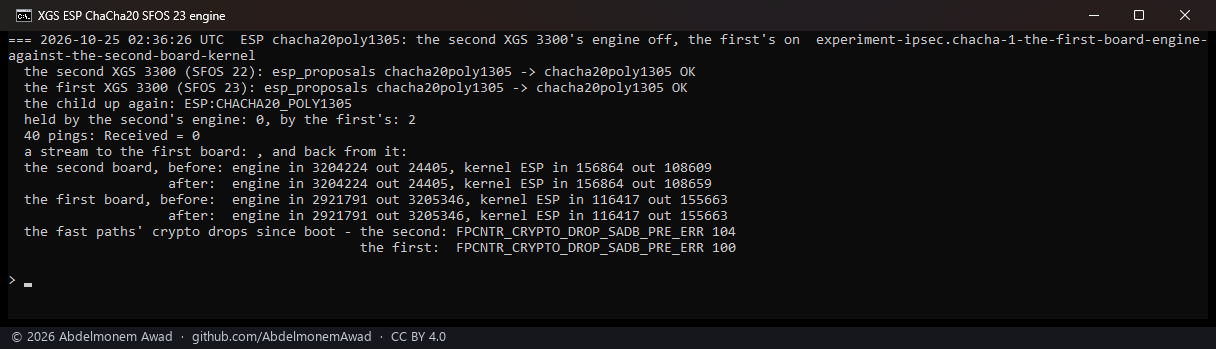

The first XGS 3300's engine: no ping answered; its CRYPTO_DROP_SADB_PRE_ERR up by 50

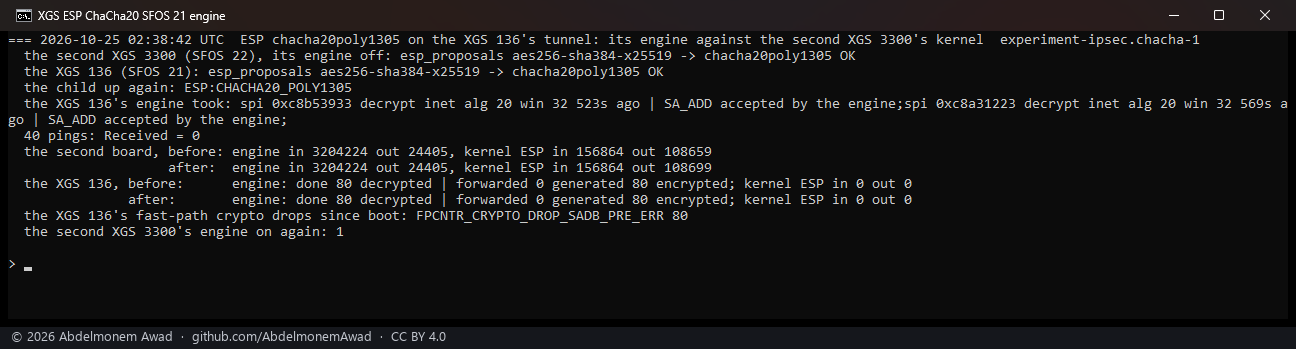

The XGS 136's engine: no ping answered; its CRYPTO_DROP_SADB_PRE_ERR up by 40

the engine sending receiving
second XGS 3300, SFOS 22 4 pings, 4 dropped (TX_DROP, CRYPTO_DROP_SADB_PRE_ERR), nothing on the wire -
first XGS 3300, SFOS 23 - 50 frames from the kernel, 50 dropped (CRYPTO_DROP_SADB_PRE_ERR, index 127 on SFOS 23's list)
XGS 136, SFOS 21 - 40 frames from the kernel, 40 dropped (CRYPTO_DROP_SADB_PRE_ERR)

The same proposal between the two kernels, both drivers declining it, ran at 1.72 and 2.06 Gbit/s. So the cipher's name is in the list and the request is accepted, but the datapath refuses an association with it before any crypto - whether for want of the cipher or of some other field the layout does not set was not found. The experiment's code was not kept: ChaCha20-Poly1305 stays with the kernel, as before.

By the way: the counter at 127 is the first of SFOS 23's derived names past its second inserted counter seen to move, and it moved as SFOS 22's 125 does (rpc-numbering.md).

Not tried

  • AES-GMAC and AES-CTR: OPNsense's page offers no proposal with either, so no owner's tunnel can ask for them. The vendor's host offloads GMAC; neither driver does.
  • 3DES: not offered with a modern proposal set, and never offloaded by the vendor's host.

What it does not say

  • The streams into the first XGS 3300 right after its tunnel's child was brought up were slow - 325 Mbit/s in one run here - and every later one ran at 9.73 to 9.82 Gbit/s, as on sa23-2026-10-25: the first minute or so after an association is made is not yet understood.
