An offloaded association's state kept in step: the three commands measured, 2026-10-25

Discovery 14 of the discoveries. Three commands move an offloaded IPsec association's state between the host and the engine (the vendor's sa_table.h and ipsec_fpop.c; the same sizes on SFOS 21, 22 and 23):

  • SA_SEQ_UPDATE (34) answers the engine's next outbound sequence number and moves its counter on by one - the vendor's host asks it before it sends a packet of an offloaded association itself, so the two never use one number twice. The first ask switches the association's counter to atomic.
  • SA_REPLAY_UPDATE (33) checks one inbound sequence number against the engine's window and takes it in - for a packet of an offloaded association the host decrypted itself. On an association whose window the fast path has not marked active, more than two seconds old, it takes the association out of the fast path's lookup instead: the vendor's answer to one installed on the wrong port.
  • SA_HOST_STAT_SYNC (35) gives the engine the host's own counts of associations, for its combined lifetime checks.

This project's design does not call for them: one encryptor per association - once an outbound association is in the engine every packet of it is encrypted there, the kernel's cipher taken - and every inbound packet of it decrypted there; the kernel's counter is started a million numbers behind the engine's and raised by the drivers' own reckoning; the lifetimes are the kernel's. So they were measured, as instruments: octep's hand commands (rpc.cmd 33, 34, 35 through the write gate, octep.ko e9241bfd) on the lab tunnel between the two XGS 3300s, and npuep's rpc_channel.command on the XGS 136's tunnel to the second XGS 3300 (npuep.ko 590205fb) (images/deploy/lab-ipsec-step.sh, lab-ipsec-step-136.sh).

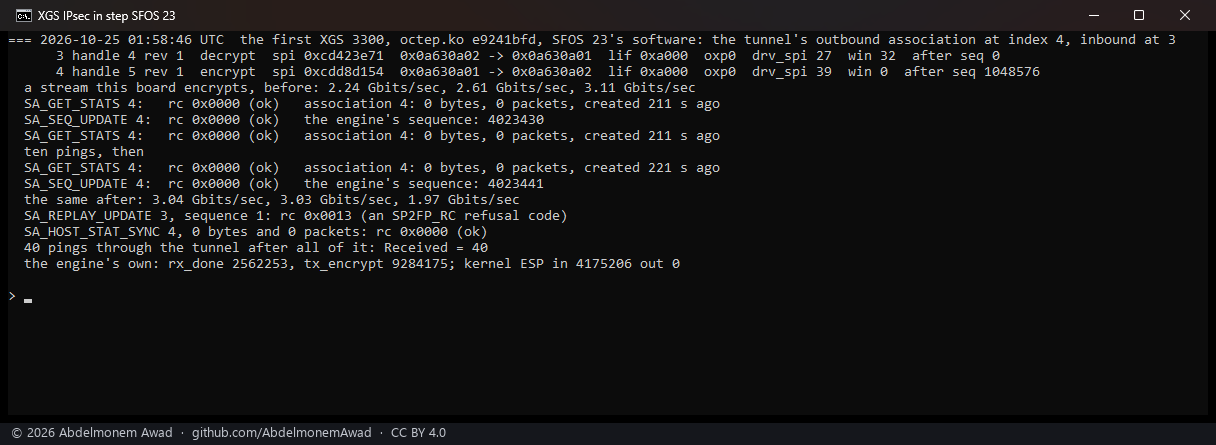

The first XGS 3300, SFOS 23: the outbound association's counts read 0 bytes and 0 packets while the engine's sequence was 4,023,430, then 4,023,441 after ten pings; streams out at 2.24 to 3.11 Gbit/s before the first ask and 1.97 to 3.04 after; SA_REPLAY_UPDATE with sequence 1 answered 0x13; 40 pings after, decrypted by the kernel

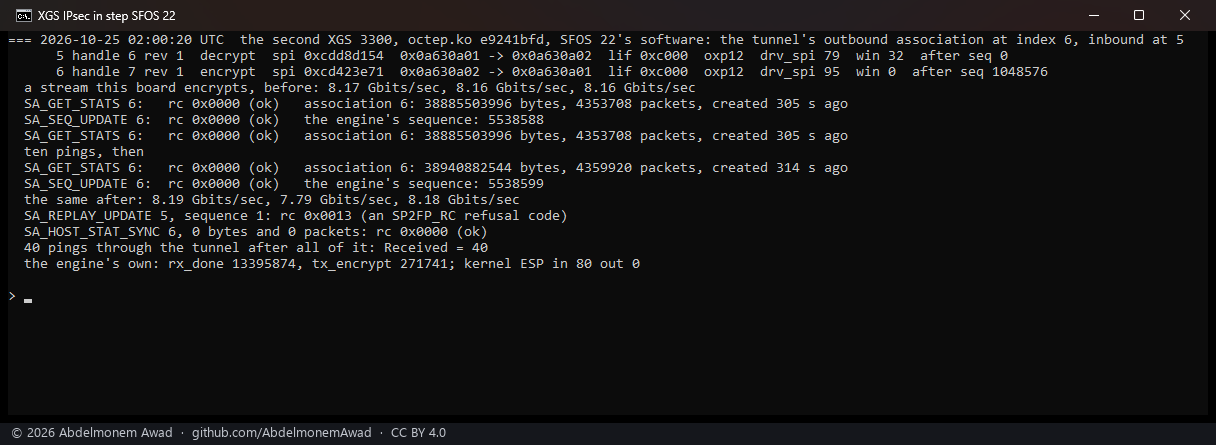

The second XGS 3300, SFOS 22: counts of 4,353,708 packets while the engine's sequence was 5,538,588, then 5,538,599 after ten pings; streams out at 8.16 to 8.17 Gbit/s before and 7.79 to 8.19 after; SA_REPLAY_UPDATE 0x13; 40 pings after, decrypted by the kernel

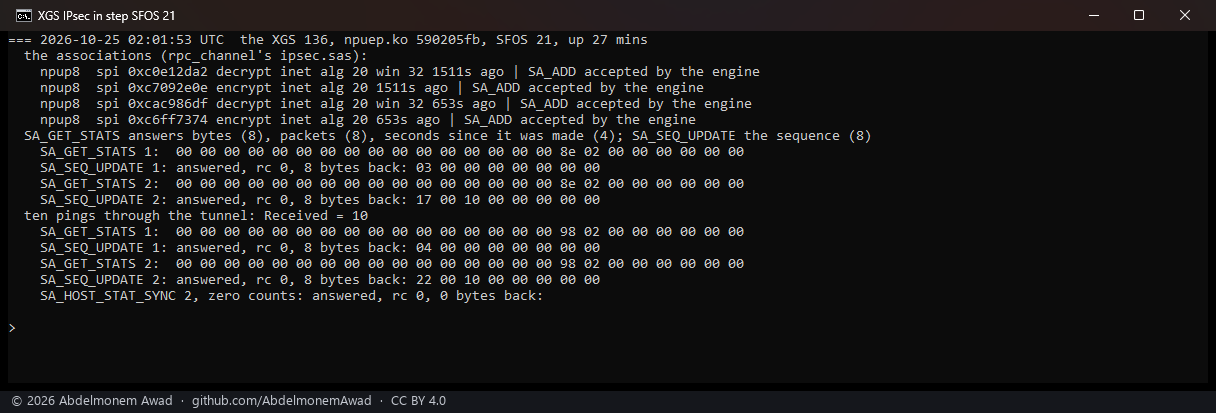

The XGS 136, SFOS 21: both associations' counts 0 bytes and 0 packets; the outbound one's sequence 0x100017, then 0x100022 after ten pings; SA_HOST_STAT_SYNC answered rc 0

What each answered

SA_SEQ_UPDATE is exact, on all three versions. Each second ask, ten pings after the first, came back eleven higher - the ten replies the engine encrypted and the one number the first ask took:

board its software the engine's sequence ten pings later the counts SA_GET_STATS gave, packets
the first XGS 3300 SFOS 23 4,023,430 4,023,441 0
the second XGS 3300 SFOS 22 5,538,588 5,538,599 4,353,708 - with the start of 1,048,576, 136,304 behind
the XGS 136 SFOS 21 1,048,599 1,048,610 0

The earlier runs, not photographed, came out the same: 1,704,917 then 1,704,928 on the first XGS 3300 with its counts at 0, 3,283,004 then 3,283,015 on the second with its counts 145,966 behind, 1,048,587 then 1,048,598 on the XGS 136.

The atomic counter cost nothing seen. Streams the board itself encrypts, before the first ask and after it: 2.24, 2.61, 3.11 and 3.04, 3.03, 1.97 Gbit/s on the first XGS 3300 (2.07, 2.07, 3.47 and 2.74, 3.26, 3.13 in the earlier run), 8.17, 8.16, 8.16 and 8.19, 7.79, 8.18 on the second.

SA_REPLAY_UPDATE takes the association out of the fast path. Sent with sequence 1 to each XGS 3300's inbound association, which had carried the streams, it answered 0x13 on both - and from then on the kernel decrypted that association's packets: 40 pings after it raised the kernel's ESP count by 40 and the engine's by none. The window had not been marked active by the traffic, so the call took the vendor's wrong-port branch. A rekey put fresh associations back in both engines.

SA_HOST_STAT_SYNC with zero counts answered rc 0 on all three.

After the first of those rekeys, read by hand: a stream from the PC into the first XGS 3300 through the tunnel, its engine decrypting, ran at 7.65, 9.77 and 9.68 Gbit/s - 2,289,733 frames decrypted by the engine and none by the kernel - where the same stream had varied from 196 to 1,770 Mbit/s an hour before (sa23-2026-10-25).

What it changes here

  • Nothing is built on them. The design keeps every packet of an offloaded association in the engine
  • measured again here: the kernel's ESP counts stood still while the engine carried the tunnel - so the host never needs a number from the engine for a packet of its own, and never decrypts one for which it would ask the engine's window. SA_REPLAY_UPDATE must not be sent: on these boards it removes the association it is asked about.
  • SA_GET_STATS counts nothing on SFOS 23's software, nor on the XGS 136's. On the XGS 136 the ARMADA driver takes a tunnel's counts from the coprocessor's connection statistics instead (npuipsec_flow_account), so nothing there depended on it. The OCTEON TX driver reads its associations' counts with it, and on SFOS 23 they stay at 0: the kernel's byte and packet counts of an offloaded association, and the lifetimes that run on them, stand still, and the margin the kernel's counter is raised by at an association's end does not grow with what it carried. Issue #761.
  • SA_SEQ_UPDATE is the exact count that margin stands in for, on every version: the place to use it is where an association leaves the engine while the kernel goes on with it. That path is reached only when the association outlives its interface, and has not been exercised.
