VLAN connections in hardware, measured on the XGS 3300 and the XGS 136, 2026-10-24

Discovery 10 of the discoveries, taken from the source to a product. The coprocessor's logical interface is a port and a VLAN together - (iface_id << 12) | vlan - and each driver made only each port's VLAN 0. A tagged frame found no entry, and the fast path handed it to the host without a lookup (FROM_WIRE_TO_KN_LIF_UNKNOWN_VLAN_L3_MODE): every connection by a VLAN subinterface crossed the host, on both appliances. Both drivers now give each VLAN subinterface of a front port its own logical interface, name the VLAN in a next hop, and have the microflow write the tag (OCTEP_BRCTL_ROUTED_VLAN, NPURPC_BRCTL_ROUTED_VLAN: the routed bridge control with its VLAN bit) - added where a direction leaves by a VLAN, taken off where it arrives by one and leaves by a plain port. A connection routed by a VLAN is now made in hardware like any other.

The MACs in the photographs are named, not printed: a MAC identifies one unit, so the lab's tools print whose it is (the second XGS 3300's Port8, the XGS 136, ...).

On the XGS 3300

VLAN 50 made at run time on the 10G link at both ends - the first XGS 3300's oxp0.50 and the second's A4, oxp12.50, one subnet between them - and the XGS 136 reached through the second XGS 3300's Port8, untagged. A 15-second TCP stream from the first XGS 3300 to the XGS 136, which the second XGS 3300 routes from its VLAN to its plain port, at 9,000-byte frames. Read on the second XGS 3300 - pf's connection, the driver's entry for it and the next hops it names, its VLAN interface's counters and its processors (kern.cp_time across the stream) - and at both ends with tcpdump: the data as it arrives at the XGS 136, the replies as they arrive back at the first XGS 3300, counted tagged and untagged. Before the change with octep.ko 0db1fe23; after it with ad60ea3d (images/deploy/lab-vlan.sh).

in hardware the replies at the first XGS 3300, 3 seconds the second XGS 3300's processors reached the XGS 136
before none: the host routed every frame, dp.flow_nonhop up 20 38,227 tagged, 0 untagged 3.3 % busy, interrupts 3.0 997 Mbit/s
after both directions, each marked vlan written; the reply's next hop leaves by VLAN 50; 0 punts 38,227 tagged, 0 untagged 2.8 % busy, interrupts 0.0 985 Mbit/s
after, dp.vlan_flows 0 none: the VLAN's entry switched off, the host routes it 38,227 tagged, 0 untagged 5.8 % busy, interrupts 2.9 985 Mbit/s

The data arrived at the XGS 136 untagged, from the second XGS 3300's Port8 with its TTL at 63 - the tag taken off, the MACs rewritten and the TTL lowered by the coprocessor, as the host had done before. The same counts every run, because the 1G link to the XGS 136 is full: 38,227 acknowledgements in three seconds is the rate at which the stream sends them. Two runs before the photographs, in the log (measurements/vlan-2026-10-24.log), put the second XGS 3300 at 0.4 and 0.5 % busy with the connection in hardware and at 3.4 and 5.6 % with it in the host; in each, the interrupts were all of the difference - 0.0 against 2.9.

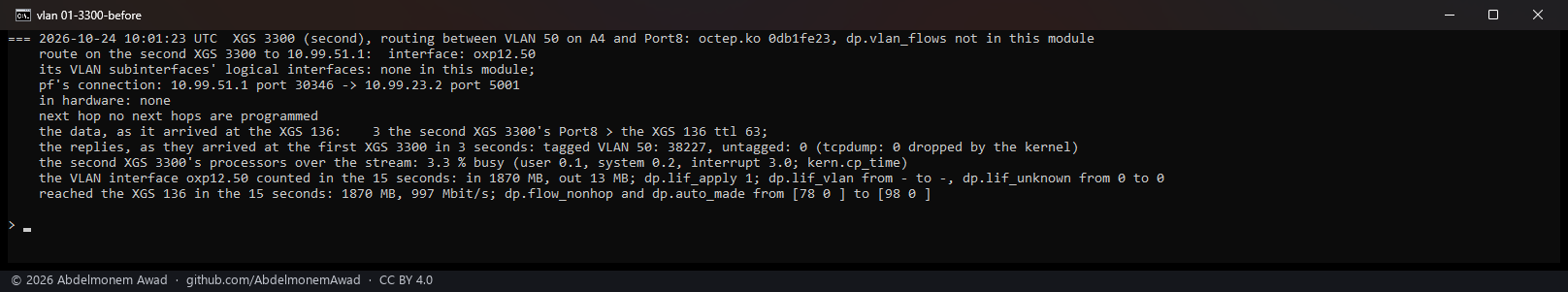

Before: VLAN 50 has no logical interface - the connection is not made, the host routes every frame

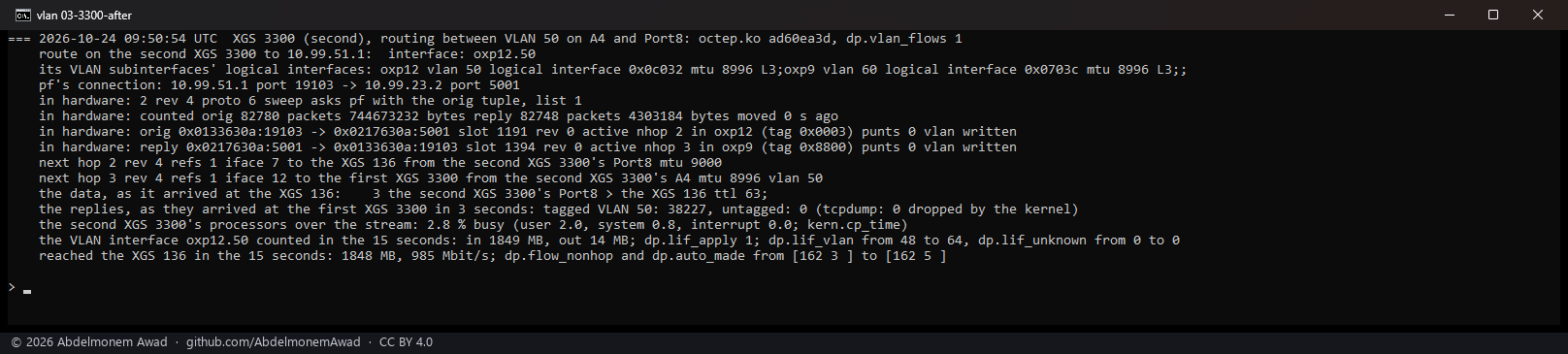

After: both directions in hardware, the tag written - the reply's next hop leaves by VLAN 50 and every reply arrives tagged

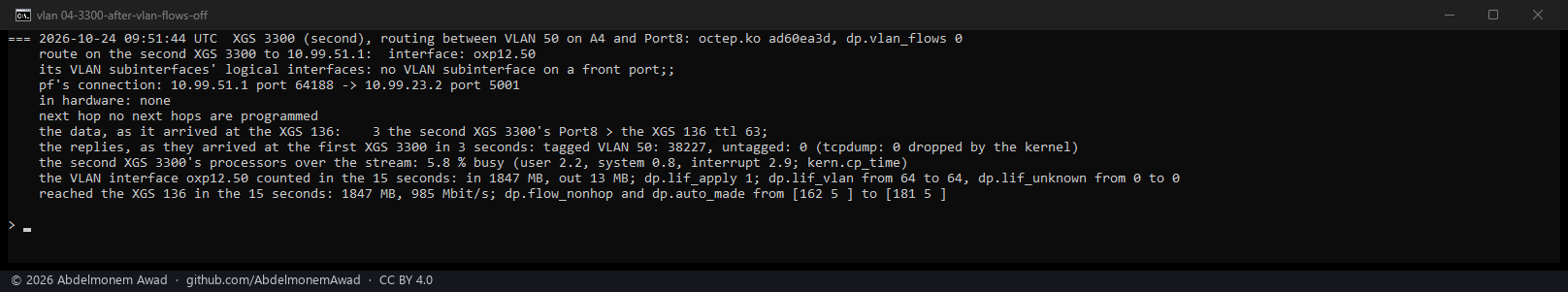

After, dp.vlan_flows 0: the VLAN's entry switched off, the host routes the connection, the VLAN still carrying it

On the XGS 136

VLAN 60 made at run time on the 1G link at both ends - the XGS 136's Port8, npup8.60, and the second XGS 3300's Port8, oxp9.60, one subnet between them, the second XGS 3300 running the iperf3 server. The bench PC, on the XGS 136's Port3 in its LAN bridge, sends a 12-second iperf3 stream to the second XGS 3300, which the XGS 136 routes from its LAN into the VLAN, at 1,500-byte frames. Read on the XGS 136 - the driver's table, its candidates, its VLAN interface's counters, its processors, and with tcpdump how many of the replies reached its host - and at the second XGS 3300 the data as it arrives, tagged and untagged, with its TTL. Before the change with npuep.ko 4efe09fb; after it with 56e309cc (images/deploy/lab-vlan-136.sh).

in hardware the data at the second XGS 3300, 3 seconds the replies at the XGS 136's host, 3 seconds the XGS 136's processors iperf3, receiver
before none 135,069 tagged, TTL 127; 0 untagged 235,024 33.1 % busy, system 26.0 927 Mbit/s
after both of iperf3's connections, each marked vlan written - 391,547 and 391,542 packets counted in the first five seconds 137,363 tagged, TTL 127; 0 untagged 0 0.9 % busy 927 Mbit/s
after, flow.vlan_flows 0 none: the VLAN's entry shut 133,168 tagged, TTL 127; 1 counted untagged 236,597 31.6 % busy 900 Mbit/s

Three runs of each in the log put the XGS 136 at 0.9 to 1.7 % busy with the connection in hardware and at 31.6 to 39.2 % with it in the host; the stream filled the link either way, so its speed is not where the difference is. In the run after the change, the second XGS 3300's tcpdump dropped 103,639 frames, so its 137,363 is what it counted, not every frame; the one frame counted untagged with the switch at 0 came by the host's path, not the coprocessor's, and the three other runs with the switch at 0 counted none.

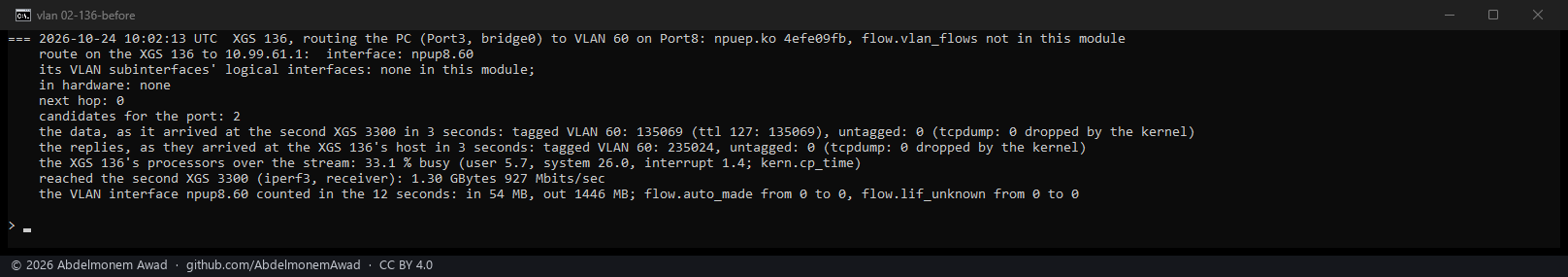

Before: no logical interface for VLAN 60 - nothing in hardware, every reply crossing the host, its processors a third busy

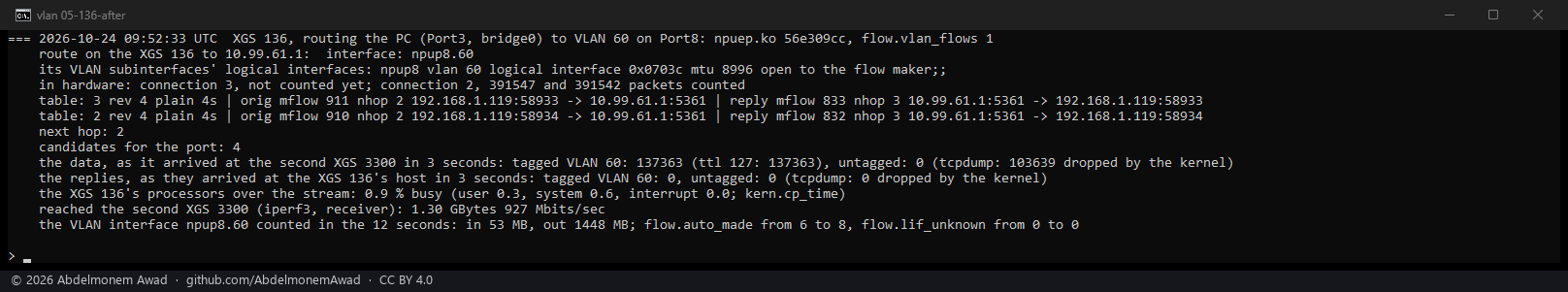

After: both of iperf3's connections in hardware, the data tagged VLAN 60 with the TTL lowered, no reply reaching the host, the processors 0.9 % busy

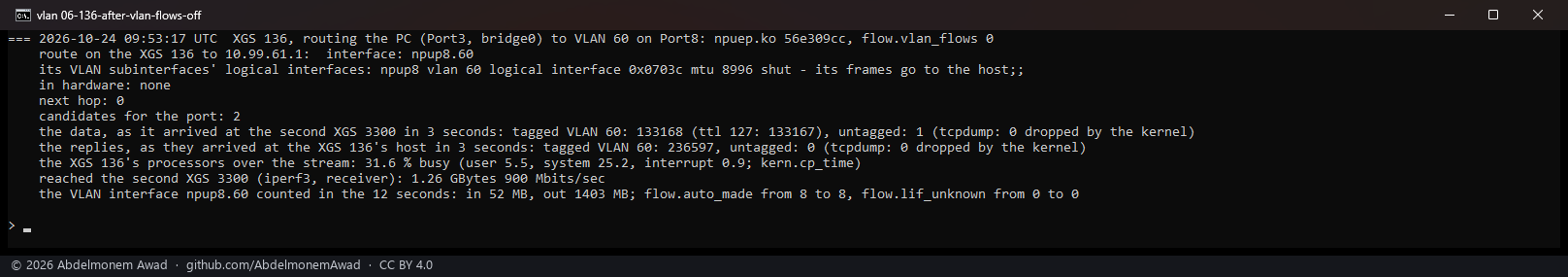

After, flow.vlan_flows 0: the VLAN's entry shut, the host routes the connection as before

How it is made

  • The VLAN's logical interface. Each driver collects every vlan(4) interface whose parent is a front port and makes its entry, (iface_id << 12) | vlan, with the VLAN interface's MAC and MTU - L3 on the XGS 3300, L2 on the XGS 136 as its ports' own entries are - with the full mask; a full add of an entry that is still there is refused with rc 1, so it is repeated every 30 seconds as the check (dp.vlan_lif_table, flow.vlan_lif_table; lif-provisioning.md).
  • The candidate keeps its tag. A punted frame's VLAN is read with its tuple - the XGS 136's receive path now parses a tagged frame at all - so a tagged connection is seen, and one whose frames are addressed to the host is a VLAN subinterface's, routed.
  • The next hop names the VLAN. A route out of a VLAN subinterface of a front port resolves to that port and that VLAN, with the VLAN interface's MAC and MTU; the next hop carries it, and two next hops differing only by VLAN are two entries.
  • The microflow writes it. A direction that arrives tagged or leaves by a VLAN gets the routed bridge control with its VLAN bit: measured, with the next hop's VLAN 50 the coprocessor added the tag, and with VLAN 0 it took the arriving tag off.

Switched off, not cut off

An entry is switched off, never removed: there is no command that removes one. It is switched off with offload_disabled, which hands its frames to the host. The first build switched it off with admin_disabled, and that cut the VLAN dead: with dp.vlan_flows 0, a TCP connection across VLAN 50 moved 0 bytes, where the same connection with offload_disabled went on through the host at 997 Mbit/s - the drop the XGS 136's notes record for admin_disabled, seen on this family. Found before the change was published, and the reason the off switch is measured above.

The VLAN's counters

The coprocessor sends the counts of what it forwarded for each logical interface, a VLAN's among them. Until the change it had no VLAN's to send; with the first build it did, and the driver dropped them (dp.lif_unknown 16 in a run). Each driver now gives a VLAN's counts to its port, which carried the frames, and to the VLAN interface, as the host counts a tagged frame it forwards on both - with dp.lif_apply or flow.lif_apply 1, the default (dp.lif_vlan, flow.lif_vlan). Measured on the XGS 3300: oxp12.50 counted 1,849 MB in for the 1,848 MB that reached the XGS 136, with the connection in hardware.

What stays with the host

These are the driver's rules, not measured here:

  • a bridge over a VLAN subinterface - a VLAN interface that is a bridge member gets no entry, and its frames reach the host's bridge as before;
  • a tunnel whose far end is reached by a VLAN, and a tunnelled connection that arrives or leaves by one: the engine builds the ESP frame for the port itself, and a tag on it is untried;
  • every VLAN's connection while dp.vlan_flows or flow.vlan_flows is 0.

On the page

XGS: Flows marks such a connection VLAN in its Connection column, its tooltip saying the coprocessor writes its tag. flows.py reads the mark from both drivers' tables: the XGS 3300's ends a microflow's line with vlan written, the XGS 136's prints a line of its own under the connection's. Read on both appliances through the configd action the page uses, with the connections above in hardware: each marked vlan, the XGS 3300's one and both of the XGS 136's; the page compiled on both.

The instruments

  • dev.octep.0.dp.vlan_flows and dev.npuep.0.flow.vlan_flows: 1, the default, makes connections routed by a VLAN subinterface; 0 switches every VLAN's entry off and leaves them to the host.
  • dp.vlan_lif_table, flow.vlan_lif_table: each VLAN's entry, its index, MTU and mode; and their counts - made, made again, changed or switched off, failed.
  • dp.flow_vlan and flow.vlan: connections made with a VLAN on either side; flow.vlan_kept: attempts left to the host.
  • The driver's tables (dp.flow_table, flow.flows) mark each such connection vlan written, and the next hops the VLAN they leave by.
