A port's rate, a connection's priority and the QoS commands, measured on the XGS 3300, 2026-10-24
Discoveries 23, 6 and 7 of the discoveries, each taken from
the source to the hardware on the second XGS 3300 (octep.ko c193598d, OPNsense 26.7.7). None of the
three can be used from the host with this firmware, and each is said here so nobody builds on it.
The path: TCP streams from the first XGS 3300 to the XGS 136, which reach it only through the second
XGS 3300 - in on its A4 at 10 Gbit/s, out on Port8, a 1 Gbit/s port behind its switch - each made a
connection in hardware there (FROM_WIRE_TO_WIRE_VERDICT_CUT_THRU). What arrived was read every second
on the XGS 136 from each stream's pf state. A first try from the bench PC was thrown away: the PC
reached the XGS 136 by a link of its own and never crossed the XGS 3300, which the empty flow table
showed (images/deploy/lab-port-qos.sh).
| what was asked | what happened | |
|---|---|---|

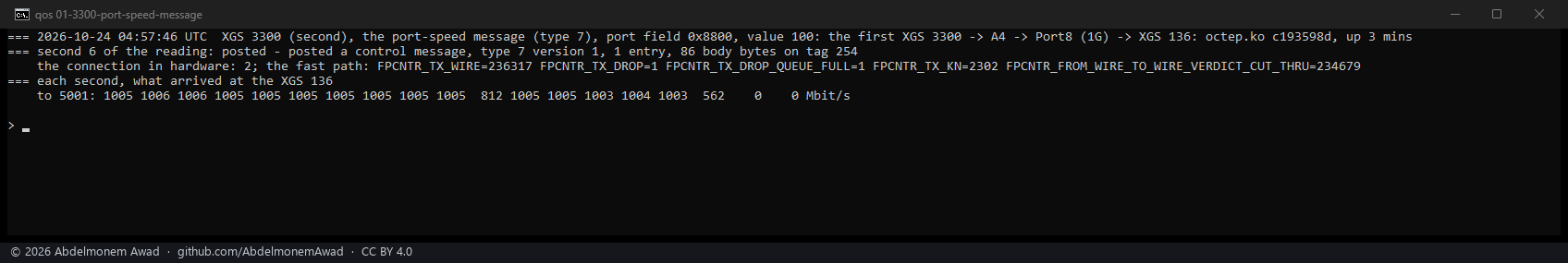

| 23, a transmit rate limit for each port | the port-speed control message (type 7) for Port8 at 100, with the port given as its tag (0x8800) and as 8 and 9 | the fast path took each message as a control message (FROM_KN_PROC_CMSG +1) and the stream stayed at 1,000 to 1,006 Mbit/s every second before and after it |

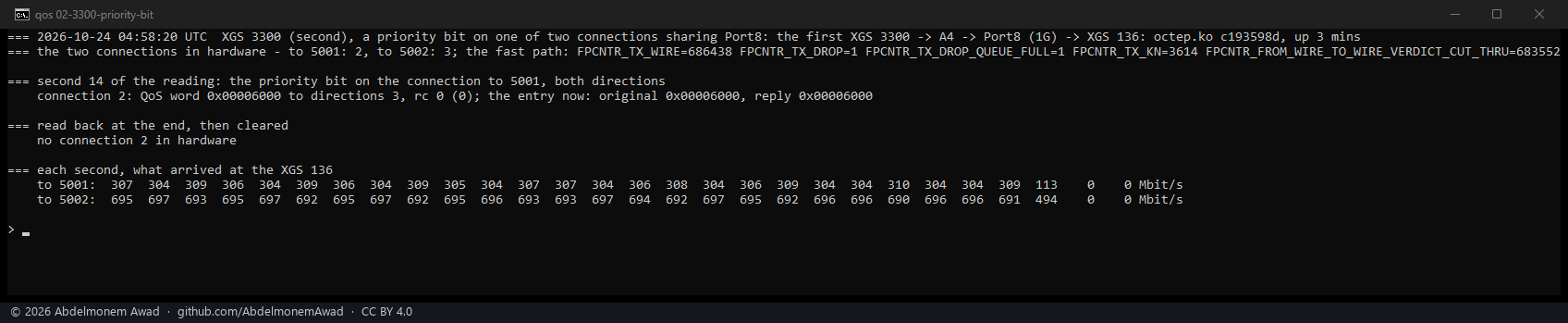

| 6, a connection's priority | the priority bit and the valid bit on one of two connections sharing Port8, both directions (CONN_MODIFY_FP) |
accepted, rc 0, and held - the entry read back 0x00006000 both ways - but the two kept their shares: 304 to 310 and 690 to 697 Mbit/s before, the same after |

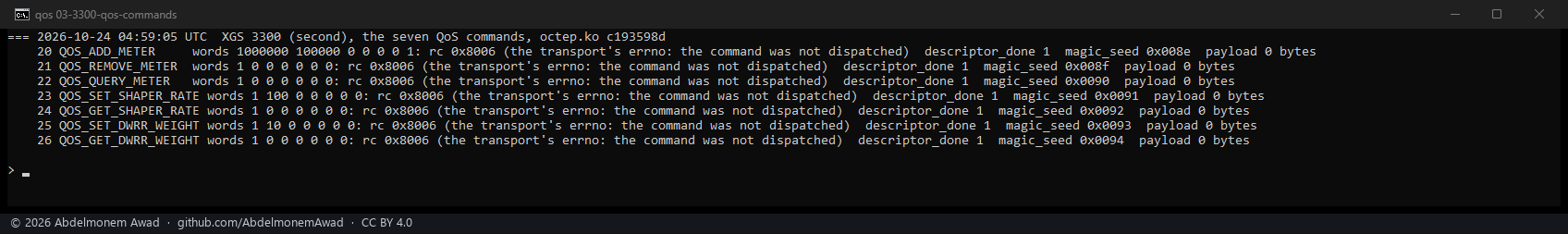

| 7, the QoS commands | each of the seven - add, remove and query a meter, set and read a shaper rate, set and read a DWRR weight | rc 0x8006, not dispatched, every one: no handler, as the source says |
Why the rate limit does nothing

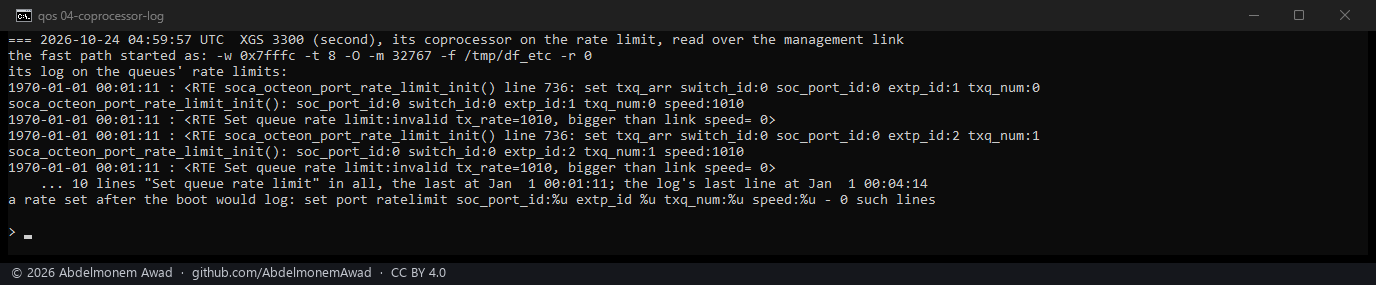

The coprocessor says it, over its management link. Its fast path starts with rate limiting on for
the switch's port (-r 0), and at its boot it gives each switch port's transmit queue its limit -
1,010 Mbit/s for a gigabit port - and every one of the ten is refused: Set queue rate
limit:invalid tx_rate=1010, bigger than link speed= 0, the switch link not up yet at that moment.
Nothing sets them again. A rate set later would log set port ratelimit ... speed:%u - the string is
in the fast path's program - and none was logged after any of the port-speed messages. So the
message is taken and goes no further on this firmware; the XGS 136's coprocessor says the feature is
off altogether (the discoveries).
What the priority bit may still do
The congestion here was in the switch, at Port8's own queue, which the coprocessor's priority does not reach: the switch's eight queues a port are weighted on every port and are not told a frame's priority by the fast path, as far as this shows. Inside the coprocessor the only per-port queue with a limit is the one above, and it has none - so no congestion could be made where the bit might act, and a meter, which could make it, cannot be added (discovery 7). The bit is kept in the entry, read back exactly; what it would decide is not reachable with this firmware.
The instruments
dev.octep.0.dp.conn_qos: write"<index> <priority 0|1> [<valid 0|1> [<meter> [<directions 1|2|3>]]]"to set a connection's two QoS words in place (CONN_MODIFY_FP, bits 1 and 2 of its field word), the entry read back after. A connection made again or revived gets both words 0.dev.octep.0.rpc.qos_argswithrpc.cmd20 to 26 andrpc.allow_write: the seven QoS commands, for the probe; the driver itself never sends them.dev.octep.0.dp.cmsg_type,cmsg_port,cmsg_valueandcmsg_post, already there: the port-speed message.
Not tried on the XGS 136: its coprocessor's log says its rate limit is disabled, and its driver has no QoS instrument yet.
