The ARMADA driver's unload: connections taken back while the channel is up, 2026-10-25

780: three things in npuep.ko's unload path, read in the code. An appliance in use never unloads the module - contrib/npuep/reload.sh does, in the lab, with the coprocessor's reset right after, which hid all three.

  1. The flow table's connections were taken out after the control-message channel had gone. npuep_detach withdrew the channel (npurpc_detach) before npugiu_detach, which takes the flow side down, so no reclaim was sent and every connection in hardware stayed in the coprocessor's table until the reset. npuep_detach now takes them out right after its goodbye, while the channel is up, and the unload says how many it took back and how many reclaims did not go through.
  2. The inspector's function was freed with nothing said to the device. It now goes as the physical function does: its datapath stopped and its CC_DISABLE said first - the same command its management code answers (MUSDK vf.c) - then its handshake withdrawn and its command rings' addresses zeroed before the memory is freed, and kept if its window no longer decodes.
  3. reload.sh's header said it resets before unloading, while its code unloads and then resets. The code is right: a loaded driver reads the BARs of an endpoint in reset, and that read never completes. The header and npuep_detach's note are corrected; the code is not changed.

Measured on the XGS 136 on SFOS 21's software, the only board of the family on the bench, by images/deploy/lab-unload-780.sh (photographed by lab-unload-780-series.ps1): each run a reload by reload.sh from /root/u780, made while four iperf3 streams from the PC through the board to the second XGS 3300 held five connections in its flow table. The board's own settings keep the inspector's function on (its early hook sets hw.npuep.ips_vf), so most loads had it. What each unload said was read afterwards from the board's system log (lab-unload-780-lines.sh): the series' own reads looked for a mark the log's RFC 5424 lines do not carry. The text is in measurements/unload-780-2026-10-25.log.

A comparison build: the flow side in its old place

89d6b526 is the change with one line taken out - npuflow_detach left to npugiu_detach, after the channel's withdrawal, as before - so that the new count shows what the old order did.

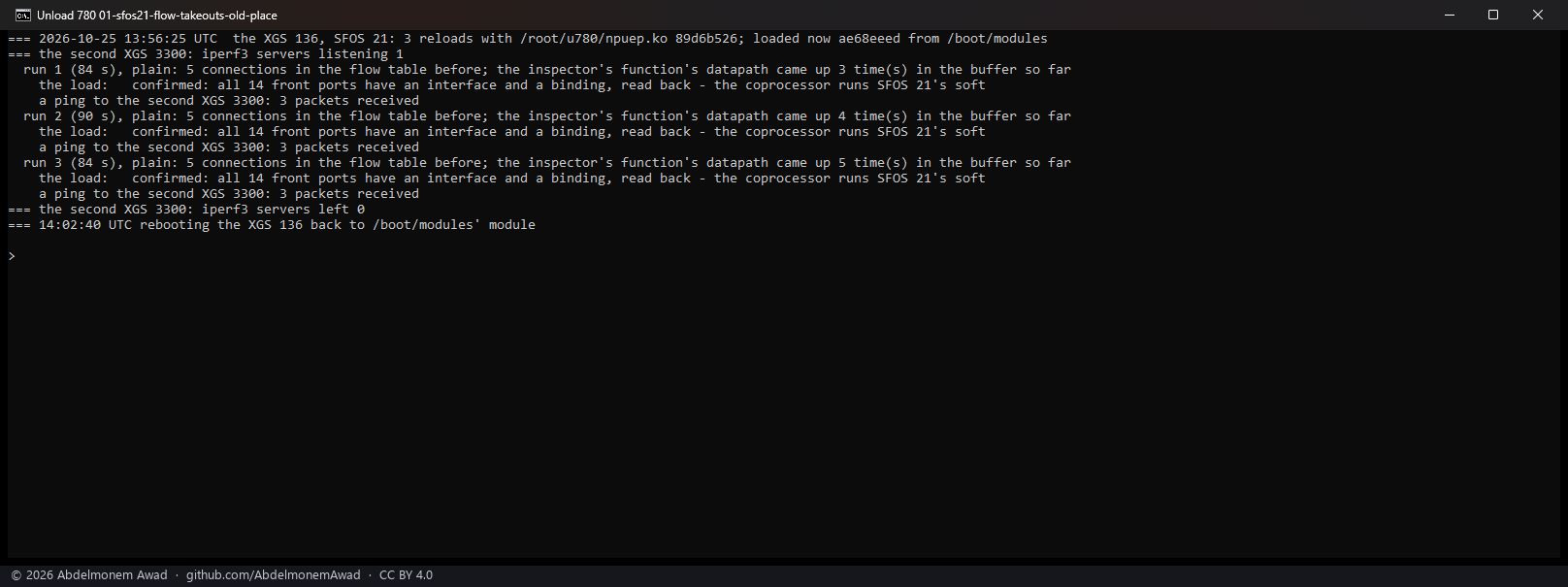

Three reloads of the XGS 136 with the comparison build npuep.ko 89d6b526: five connections in the flow table before each; every new load with all fourteen front ports confirmed and the second XGS 3300 answering a ping

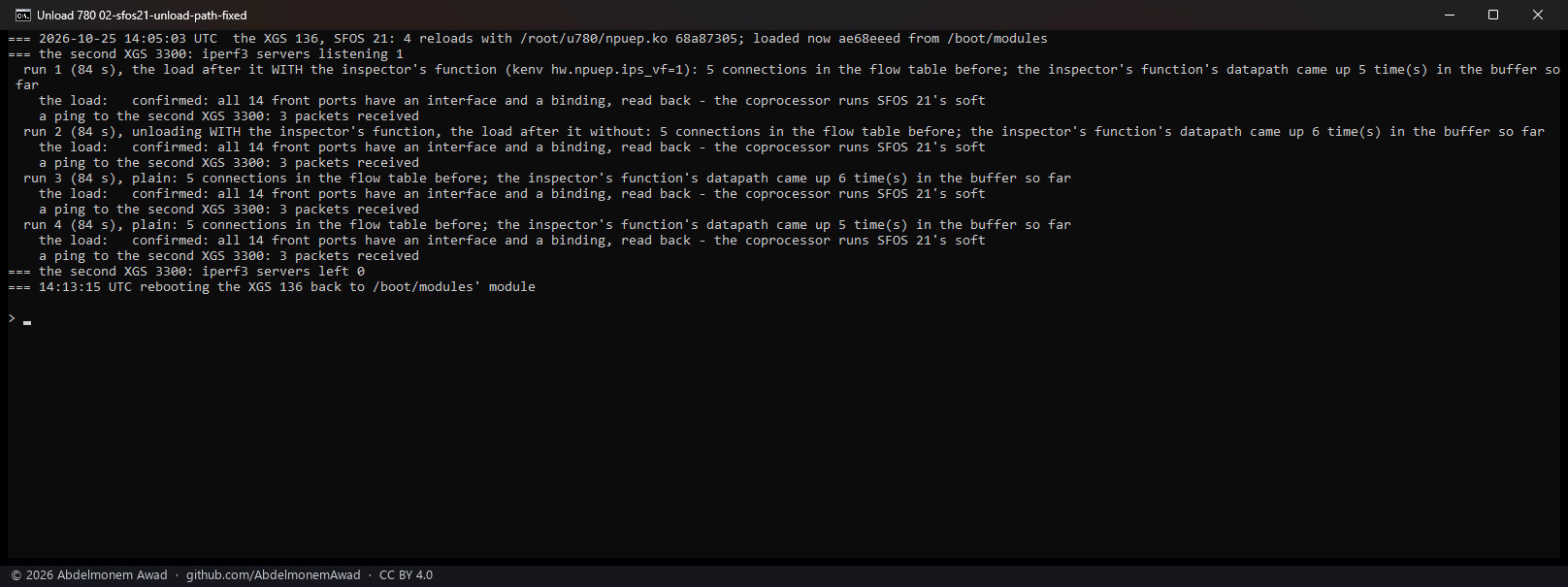

Four reloads with npuep.ko 68a87305, the change: five connections in the flow table before each, all fourteen front ports confirmed after each load, the second XGS 3300 answering

What each unload said

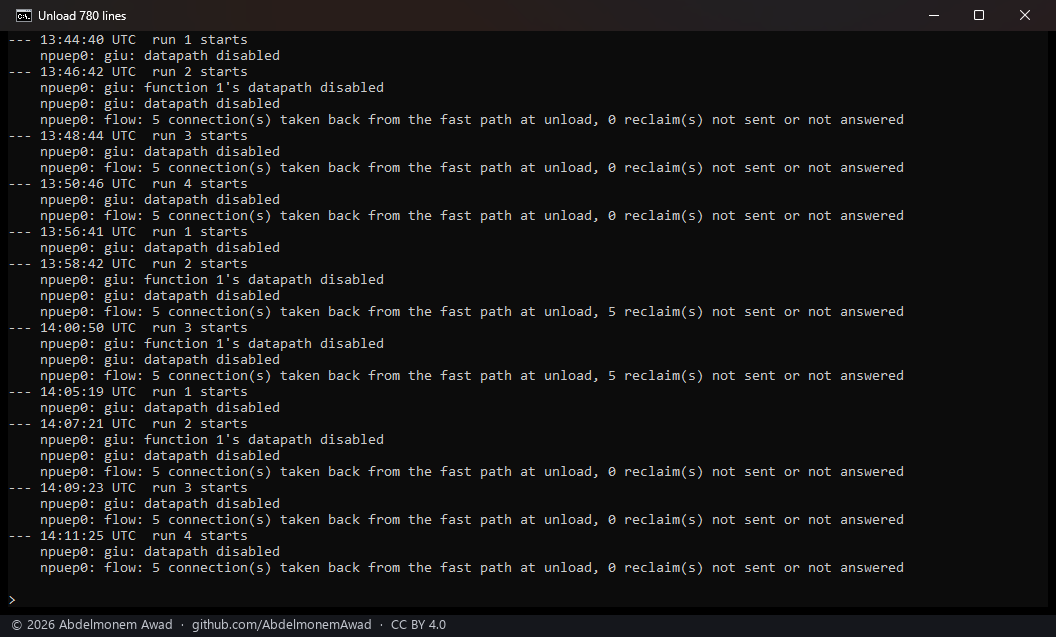

The board's system log, each reload's mark and the unload's lines after it: with 68a87305, "5 connection(s) taken back from the fast path at unload, 0 reclaim(s) not sent or not answered" six times; with the comparison build 89d6b526, "5 reclaim(s) not sent or not answered" twice; "function 1's datapath disabled" whenever the inspector's function was there, and "datapath disabled" at every unload

unloaded runs connections taken back reclaims that did not go through the inspector's function
68a87305, the change 6 (two series) 5 each 0 its CC_DISABLE answered when it was there
89d6b526, the flow side in its old place 2 5 each 5 of 5 its CC_DISABLE answered
ae68eeed, main before the change 3 (the first unload of each series) not said - it has no count - not told

Every unload's own goodbye was answered (giu: datapath disabled), no function's window was found gone before its withdrawal, and every load after came back with all fourteen front ports confirmed and the link to the second XGS 3300 answering.

What this does not settle

  • That the coprocessor dropped the connections is read from its answers to the reclaims, not from its table: once the module is gone, nothing on the host can read it, and the reset that follows clears it.
  • The inspector's function's memory after its withdrawal was not watched for a late write; the withdrawal is what the physical function's has done since it was written, now made for both.
