Thirty boots of the XGS 136, Port1 receiving after every one, 2026-10-25

676: on 2026-10-21 one boot of the XGS 136 in eight left Port1 (npup1, the WAN) up, with its DHCP address, and receiving nothing - its frames sent, none taken in, the driver reporting nothing wrong, a reboot curing it. That was before 731 (#706), after which the host no longer writes to the switch's bus at boot: the network agent sets each port's frame limit itself.

Measured on the XGS 136 on SFOS 21's software, npuep.ko ae68eeed (main at 785), by images/deploy/lab-676-series.sh (photographed by lab-676-series.ps1). Each boot: the board restarted, then a wait until its network agent was ready, then a minute for DHCP and the switch's frame limit, then Port1 read - its link, its address, its default route, and its inbound frame count around five pings to the gateway. The text is in measurements/boot-series-676-2026-10-25.log.

Thirty of thirty

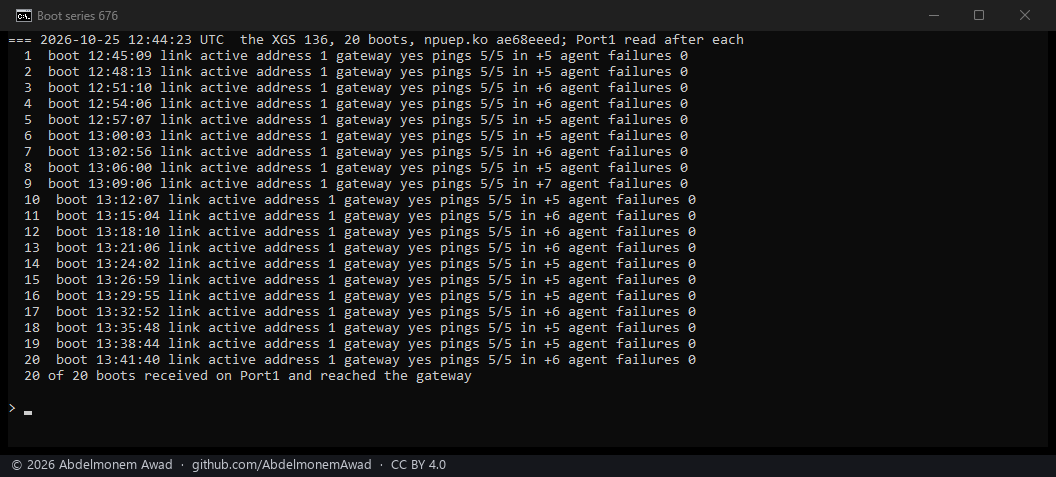

Twenty boots of the XGS 136 from 12:45 to 13:41 UTC: each with Port1's link active, one address, the gateway answering five of five pings, five to seven frames more in, and the network agent's failures at 0; twenty of twenty received on Port1

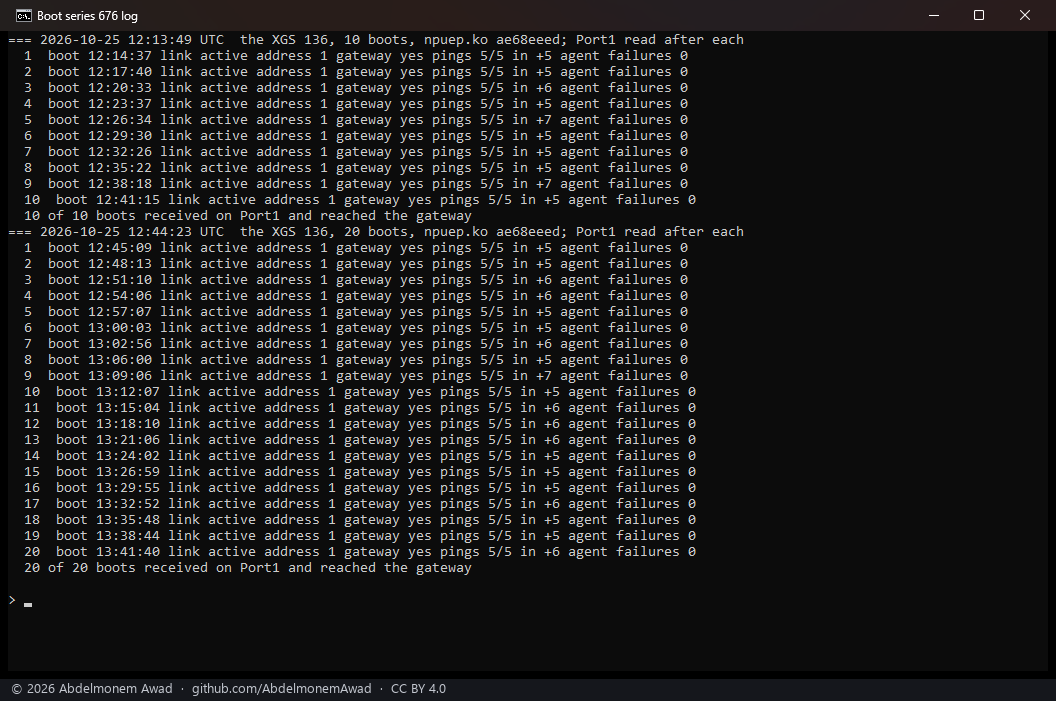

The whole log: the ten boots from 12:14 to 12:41 UTC, run before the photographed twenty and not photographed while they ran, then the twenty - thirty boots, every one receiving on Port1

boots Port1 received and reached the gateway
2026-10-21, before #731 8 7
2026-10-24, after #731 1 1
2026-10-25, this page 30 30

The first ten ran before the photographed twenty, as one series with the same script; their lines were not photographed while they ran, and the second picture is of the log they and the twenty were written to.

What it settles, and what not

  • It no longer happens at the rate it did. At one boot in eight, thirty-one boots in a row receiving would come about one time in sixty ((7/8)^31 = 0.016).
  • The cause is not shown. #731 changed what the host does at boot (it no longer touches the switch's bus), and the fault has not been seen since; that the one cured the other is the likeliest reading, not a measured one - the failing boot of 2026-10-21 was never caught with the switch's state read.
  • A boot still does not check its own WAN. A port whose link is up and whose inbound count does not move is a fault the driver does not see; the issue's lesson stands for the problem reporter.
