The coprocessor's PCIe relaxed ordering and no-snoop, cleared by the driver, 2026-10-25

748: an XGS 107 moved about a megabit a second, with whole seconds of nothing, and its driver counted 202,606 of 2,971,077 received frames as malformed - a receive descriptor whose producer index said it was filled still held the watermark the driver stamps into it before handing it over. The ARMADA coprocessor's firmware leaves Relaxed Ordering and No Snoop enabled in its PCI Express Device Control, which lets it mark its writes into host memory either way; with relaxed ordering a host may see the write that says a descriptor is filled before the write that fills it. The 107's owner cleared the two bits by hand with pciconf -w, and malformed stopped - 146,019 before and after, with 161,389 frames received in between. The setting went back at the next boot, as the register is the host's and the firmware sets it again.

Since npuep.ko c79fa33b the driver clears the two itself, on every attach, before it turns bus mastering on, so that no write the coprocessor makes for it carries either attribute. It says so in the kernel's log, and dev.npuep.0.pcie_order reads the register live beside the value attach found:

npuep0: PCIe relaxed ordering and no-snoop cleared (device control 0x2040, was 0x2850)
dev.npuep.0.pcie_order: relaxed ordering off, no-snoop off (device control 0x2040, 0x2850 at attach)

The loader tunable hw.npuep.pcie_relaxed=1 leaves the two as found, to compare. The XGS 3300's driver, octep, is not changed: the second XGS 3300's endpoint shows RO NS too, and no loss of this kind has been seen on either XGS 3300 - a different coprocessor, a different ring format and a different host.

Measured on the XGS 136, on SFOS 21's software, the only ARMADA board on the bench (images/deploy/lab-pcie-order.sh, lab-pcie-order-series.ps1). Its host, a Ryzen R1606G, never showed the 107's loss; what is measured here is that clearing the two costs it nothing. That the change ends the 107's loss is its owner's hand-made test above, not one taken here.

Before the change

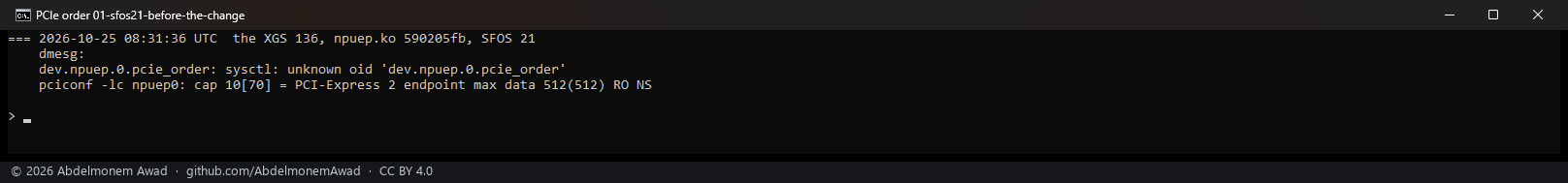

The XGS 136 on npuep.ko 590205fb: no line in the kernel's log, no pcie_order sysctl, and pciconf's PCI-Express line ending in RO NS - the two attributes on, as the firmware left them

Cleared at attach, and 1 GB each way

The 136 is one end of each transfer - 1 GB into an nc sink on it from the second XGS 3300 over their gigabit link at MTU 9,000, and 1 GB from it the other way - so every frame crosses its receive or transmit ring; the rate is dd's. Then the same with the two set back on by hand, and cleared again after.

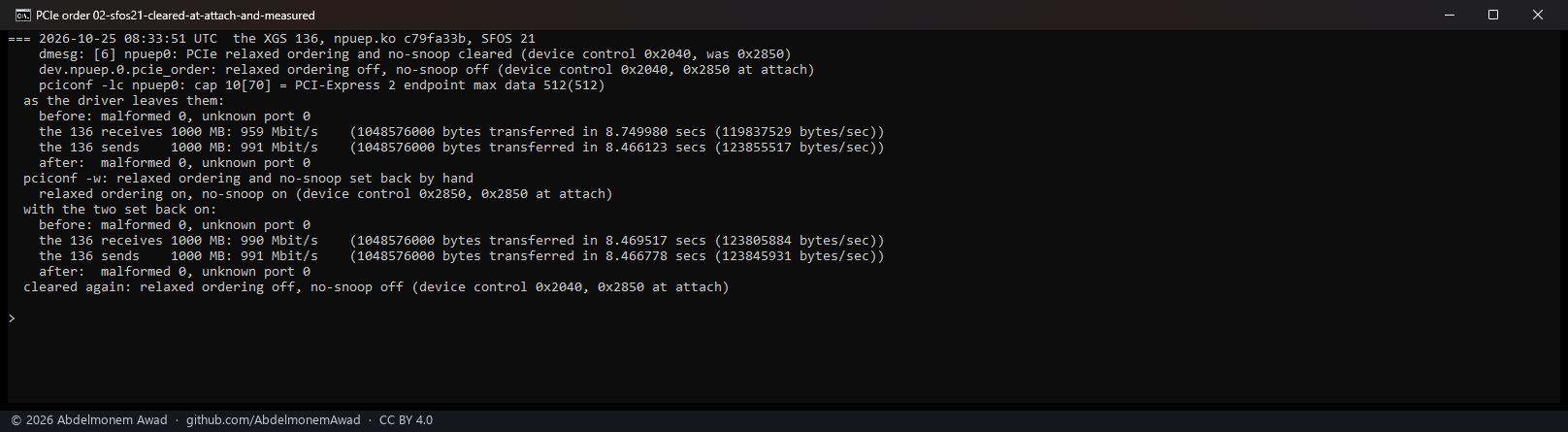

The XGS 136 on npuep.ko c79fa33b: the driver's line "PCIe relaxed ordering and no-snoop cleared (device control 0x2040, was 0x2850)", RO NS gone from pciconf's line; as the driver leaves them it received 1000 MB at 959 Mbit/s and sent at 991; with the two set back on, 990 and 991; malformed 0 and unknown port 0 throughout

Ten receives each way, alternated

The 959 Mbit/s of the first receive was checked by repeating it: ten 1 GB receives with the two cleared and ten with them on, alternated, so that anything drifting on the link falls on both alike.

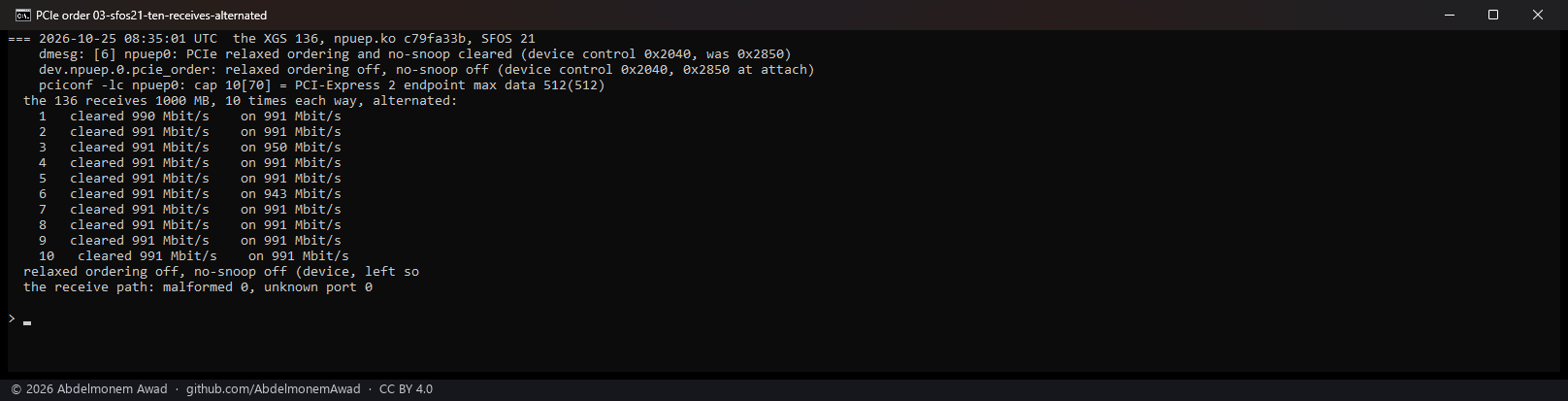

Ten 1 GB receives by the XGS 136 each way, alternated: cleared 990 once and 991 nine times; on 991 eight times, 950 and 943 once each; the receive path's malformed and unknown port counts 0 at the end

runs Mbit/s
cleared, as the driver leaves them 10 990 once, 991 nine times
on, as the firmware leaves them 10 991 eight times, 950 and 943 once each

The link carries 991 Mbit/s of TCP at MTU 9,000 either way; the dips fell with the bits on, as the 959 of the first run had fallen with them off, so they are the link's and not the setting's. The two cost the 136 nothing, and gave it nothing.

What this does not settle

  • The 107's other loss. Its unknown port count - frames tagged 0x0000, which names none of its nine ports - kept rising after the bits were cleared by hand (31,332 to 40,602), and its throughput did not move. That is a second fault, and it is not this one.
  • Hosts other than the 136's. Only a Ryzen R1606G was measured here. The RX-216TD of the 107 is the host the change is for, and the first run on one after an update is the measurement.
  • The watermark's handling. A descriptor still carrying the watermark is counted and its slot passed over; with ordering kept that should not happen, so waiting for it to fill instead is not done.
