Power over Ethernet with a device on each port of the XGS 136, measured, 2026-10-29

On 2026-10-20 the XGS 136's two PoE ports were switched from XGS: Ports with nothing plugged in (the first measurement). Here each has a powered device: the two units of an HDMI extender, each through a PoE adapter, on Port11 and Port12. Both present a valid signature - detection Good, Class 0 - and take power only: neither has an Ethernet link on its port.

Both powered

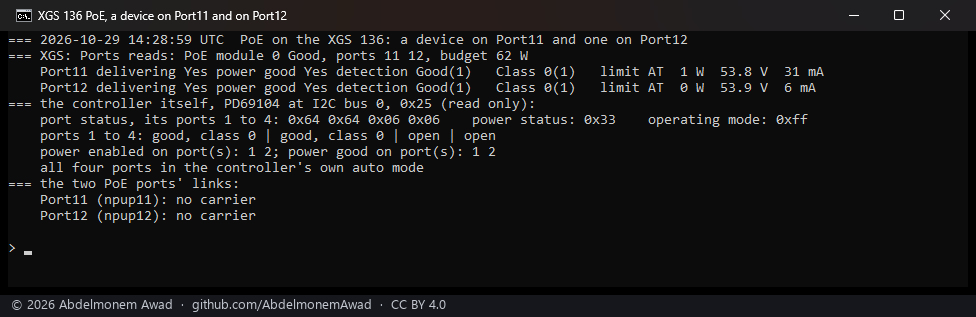

PoE on the XGS 136 with a device on Port11 and one on Port12: both delivering, power good, detection Good, class 0, limit AT; Port11 1 W at 53.8 V and 31 mA, Port12 0 W at 53.9 V and 6 mA; the controller's own registers: ports 1 and 2 good and class 0, both enabled with power good, all four in its own auto mode; neither port has a link

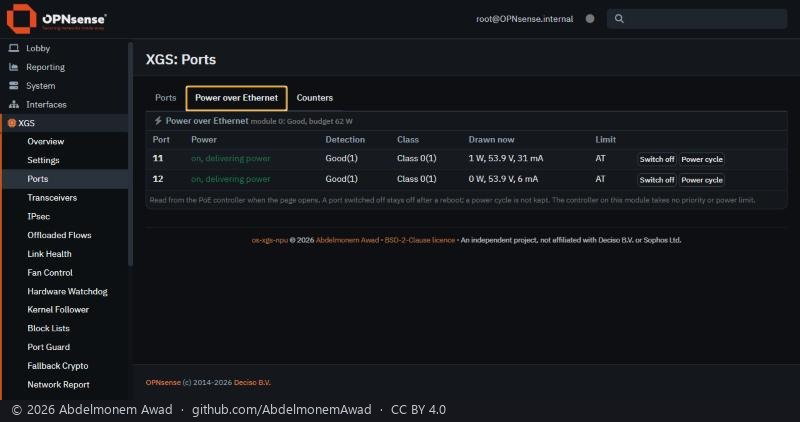

XGS: Ports on the XGS 136, its Power over Ethernet tab: ports 11 and 12 on and delivering power, Good(1), Class 0(1), 1 W at 53.9 V and 31 mA and 0 W at 53.9 V and 6 mA, limit AT

port	delivering	detection	class	drawn	link
11	yes, power good	Good	0	1 W - 53.8 to 53.9 V, 30 to 31 mA	none
12	yes, power good	Good	0	0 W - 53.8 to 53.9 V, 6 to 7 mA	none

The page and the controller agree, and the owner saw both PoE lights on the front steady.

Before: one port at a time

These readings were taken every few seconds from 13:24 to 14:16 UTC and kept in the bench's log. They were not photographed: the state they describe was gone once the owner had fixed the power of the device on Port11.

Only one port was powered at a time. Port12 delivered. Port11 was detected and classified, but not powered. When Port12 was switched off with the vendor's tool, Port11 came up. When it was switched on again, it took its power back, and Port11 was off three seconds later. This happened once with both limits at AT and once at AF.
Not the budget. With both limits at AF, the two ports ask 30.8 W of a module that gives 62 W, less its 6 W guard band.
The devices drew 5 to 7 mA each, about 0.3 W. A powered device has to keep drawing about 10 mA for a PoE port to go on powering it (the maintain power signature of IEEE 802.3), and a port may cut one that draws less. Port11, switched off and on again by hand, came back after 88 seconds and was cut again within eight. A switch-on alone did nothing.
The owner saw one PoE light on the front steady and the other blinking, about once a second. In the vendor's table below, that is denied power, or a fault on the connected device.
Once the owner had fixed the power of the device on Port11, it drew 30 to 31 mA, and both ports stayed powered: the table above.

So what cut Port11 points to its device drawing less than a PoE port must see, and not to the XGS 136: once that device drew 30 mA, both ports stayed powered.

The controller

The controller is U40, a Microchip PD69104, on the coprocessor's I2C bus 0 at address 0x25. It was found by reads of 0x20 to 0x2f, the part's address range, on the coprocessor's four buses. It was then read register by register, and nothing was written. The readings follow the register map that PSE controllers of this kind share, and they bear it out: the power status followed Port12 alone, then both ports.

register	read	meaning
port status, ports 1 to 4	0x64 0x64 0x06 0x06	ports 1 and 2: detection good, class 0; ports 3 and 4: open
power status	0x22 while Port11 was cut, 0x33 with both	port 2 alone enabled and good, then ports 1 and 2
operating mode	0xff	all four ports in the controller's own auto mode

The controller's port 1 is the label 11, and its port 2 is the label 12. In auto mode the controller decides by itself when a port is powered and when it is cut; the coprocessor and the host only switch a port off or on. Its datasheet gives it an LED output for each port. That fits the front lights following the ports with no software of this project behind them.

The lights, as the vendor documents them

From the vendor's quick start guide for the XGS 116, 126 and 136 (docs.sophos.com):

light	colour	state	meaning
PoE1, PoE2 (front)	green	solid	the port is powering its device
		blinking fast, about every 0.3 s	an internal hardware failure of the port
		blinking slowly, about every 2.5 s	the port is denied power - the device asks for more than the port can give - or it detects a fault on the device
		off	the port is not powering anything
each RJ45, left	green	solid, flashing, off	link, data, no link
each RJ45, right	amber, green, off		1000, 100, 10 Mbit/s

So, case by case:

A cable with data and no power: the port's own two lights are on, and its PoE light is off.
Data and power: the port's lights are on, and its PoE light is steady.
Power and no data: the port's lights are off, and its PoE light is steady - or blinks slowly while the port is refused.

The last case was seen here. Both PoE lights were steady once both ports were powered, and one blinked while Port11 was refused. A device that takes data and power at once, such as a camera or an access point, was not on the ports.

The power limit

The vendor's tool on the coprocessor sets a port's limit to AT (30 W) or to AF (15.4 W): its help names these two values for a controller without 1 W steps. On 2026-10-29 both values were set and read back. On Port11 the tool twice answered busy while that port was refused.

The first measurement tried a number, 15, which the tool refused, and so it wrote that the limit is not supported here. That line is now struck there.

The vendor's guide limits one PoE port to 15.4 W when a high-performance expansion module is fitted. ~~XGS: Ports does not offer the limit yet; its help line says the controller takes none, and that line is to be corrected along with the setting.~~ XGS: Ports offers it the same day: Limit to 15.4 W or Allow 30 W on each port, kept in the configuration and set again at every boot, its help line corrected. Priority and the guard band are still refused.

A limit changed either way restarts the device. It makes the controller look for the device again. Read every second and a half from the page's own change on Port12, the device was off once and powered the next time, at AF (14:51:22 to 14:51:23 UTC) and at AT (14:52:15 to 14:52:17). So the page asks before either change, and reads the port again five seconds after one: its first reading, taken in that second, had shown Open Circuit.

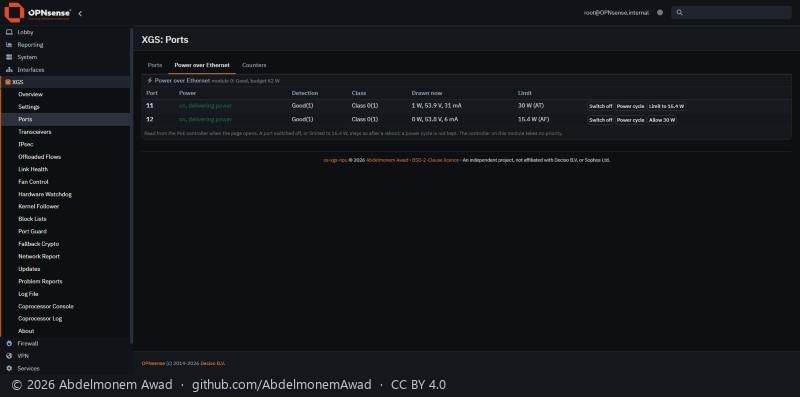

XGS: Ports on the XGS 136 after Port12 was limited from the page: Port12 on and delivering power at 0 W, 53.8 V and 6 mA, its limit 15.4 W (AF) and its button Allow 30 W; Port11 at 30 W (AT) with Limit to 15.4 W

Not measured

A device that takes data and power at once, and so the two cases with a link and PoE together.
Any class other than 0, and more than 15.4 W on a port.
Why the controller left Port11 detected but unpowered for minutes after cutting it. Its datasheet says auto mode tries again about every second after a cut for low draw. The reason would be in registers whose map is a document separate from the part's datasheet.
