Release 0.1.0-alpha.8

A gathered release. The OCTEON TX driver lays an IPsec association out as vendor version 23 reads it, in 200 bytes where vendor versions 21 and 22 take 192, so an XGS 3300 whose coprocessor came with vendor version 23 offloads its tunnels too; an offloaded tunnel's counts come from the coprocessor's statistics messages, the appliance's own traffic into it included. On the XGS 1xx family the coprocessor's PCIe relaxed ordering and no-snoop are cleared at attach, and at unload the driver says goodbye to the datapath before anything else. XGS: Overview has a Coprocessor tab (its software, chips, flash and eMMC, read-only) and the fast path's counters; the coprocessor's console has a page of its own. Five plugins join the family: the hardware watchdog, the kernel follower, block lists, port guard and fallback crypto. Every plugin of the family sits under the XGS menu when this project is installed, in OPNsense's order, and XGS: Updates installs one that is missing. A route through a tunnel's interface - a VTI with an address on its gateway - no longer panics the flow sweep: both drivers leave such a connection with the host. The drivers changed: the Updates page asks for a reboot.

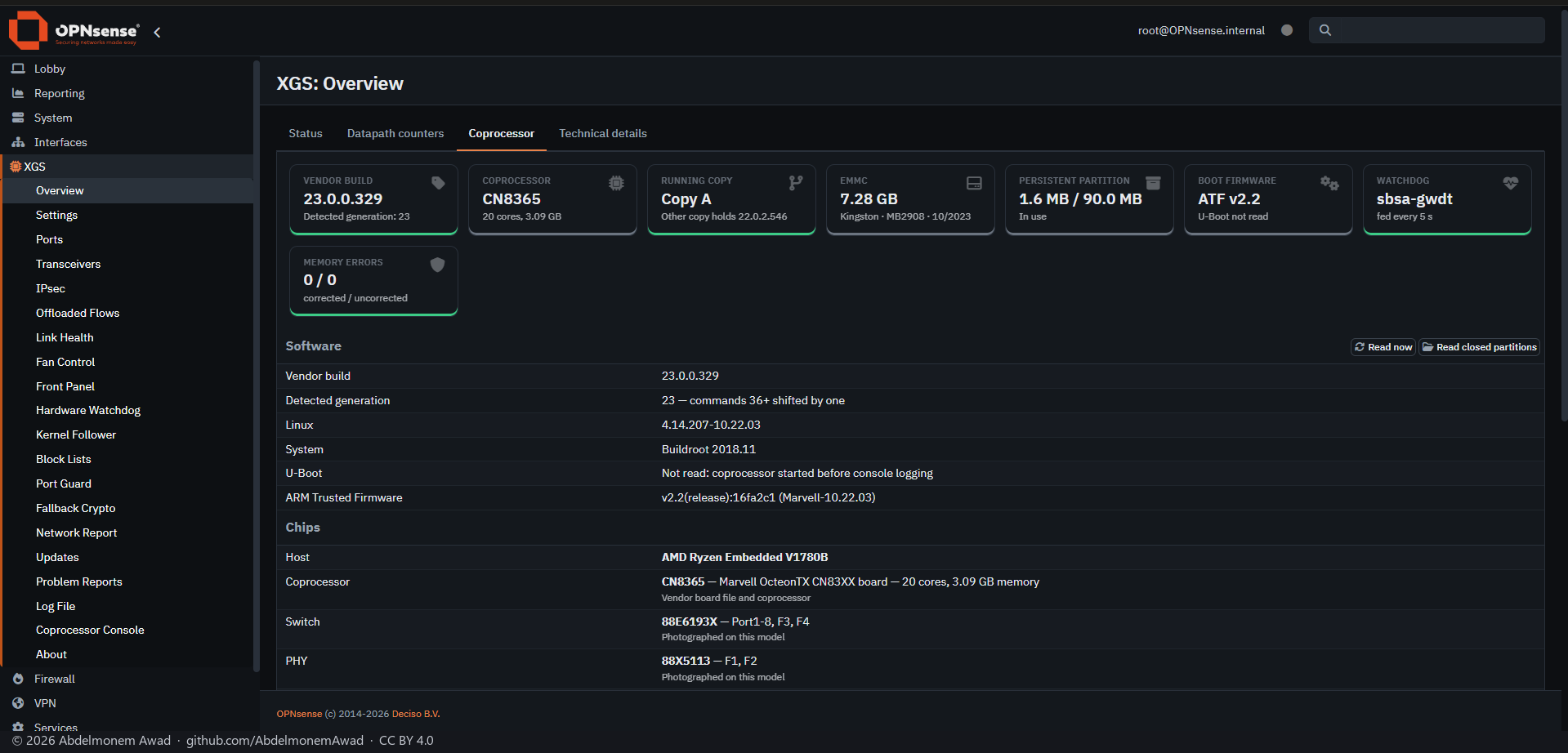

XGS: Overview, the Coprocessor tab

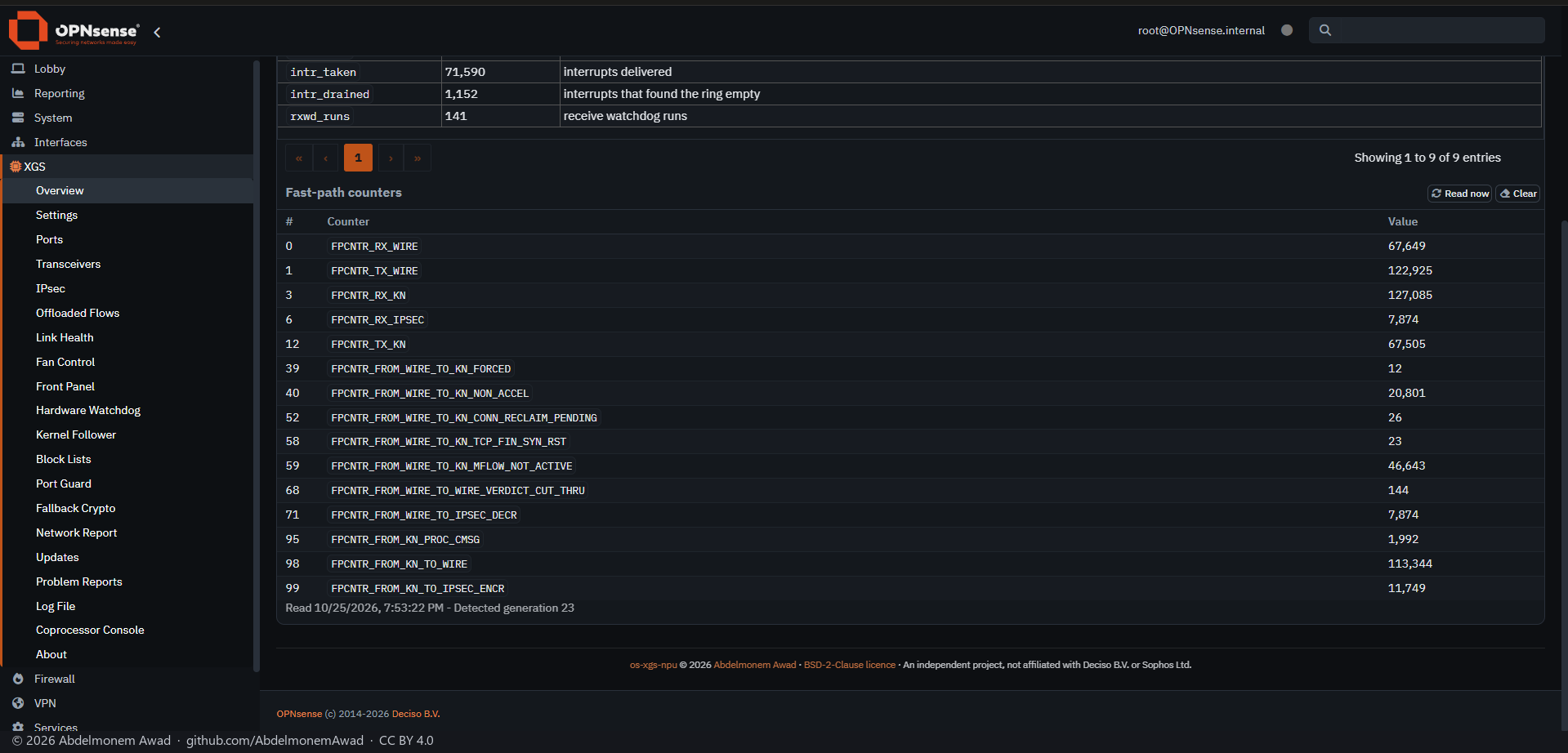

XGS: Overview, the fast path's counters

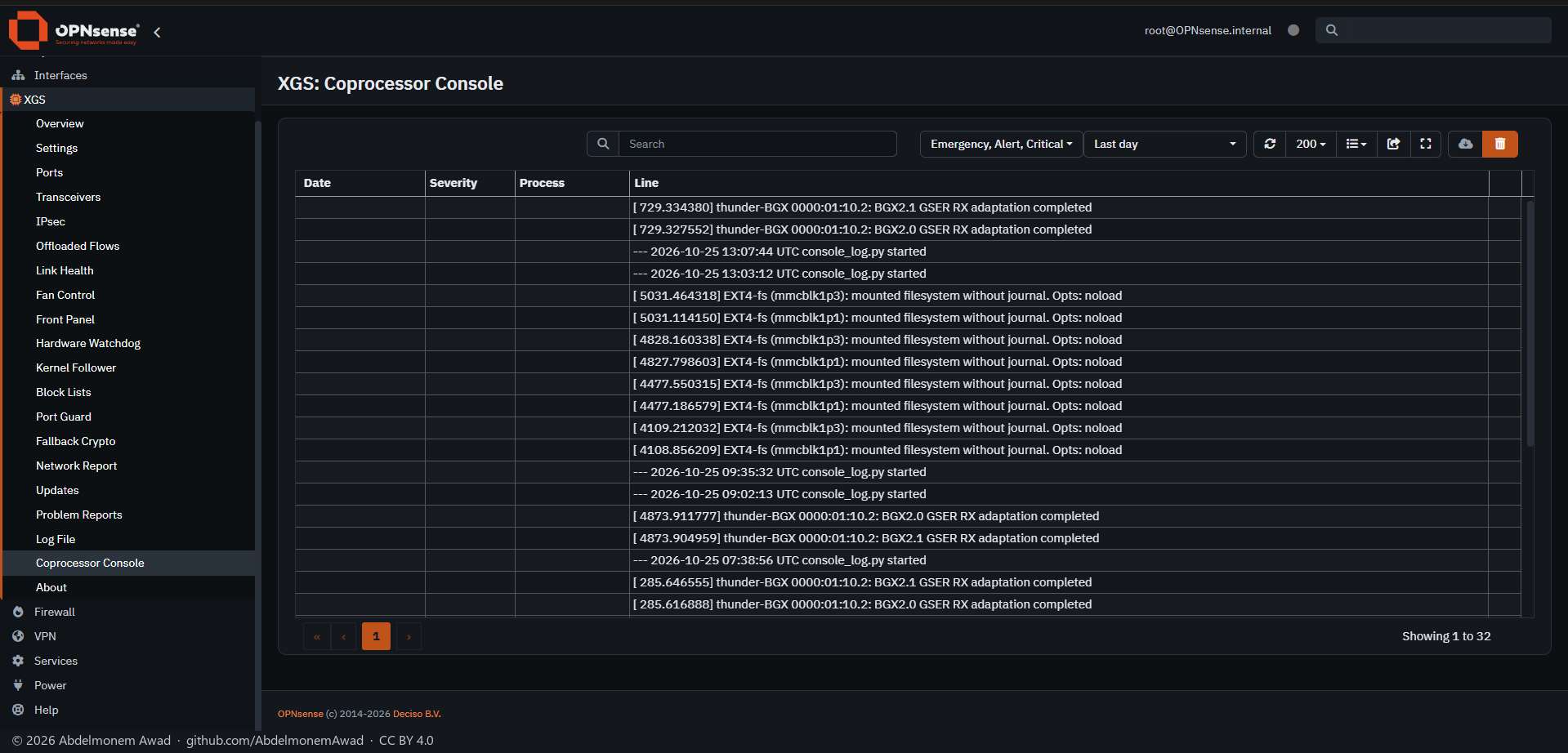

XGS: Coprocessor Console

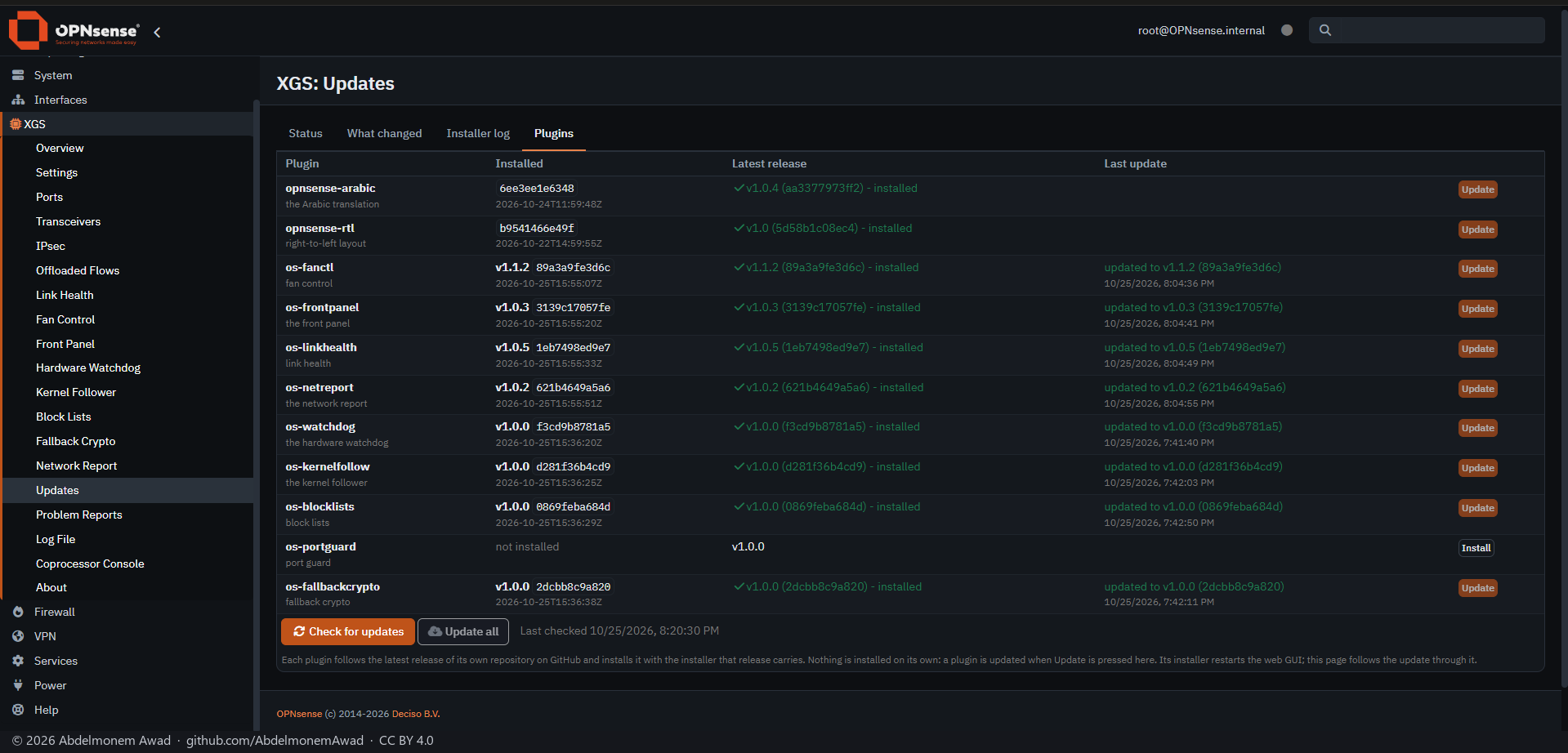

XGS: Updates, a plugin that is not installed, and Install

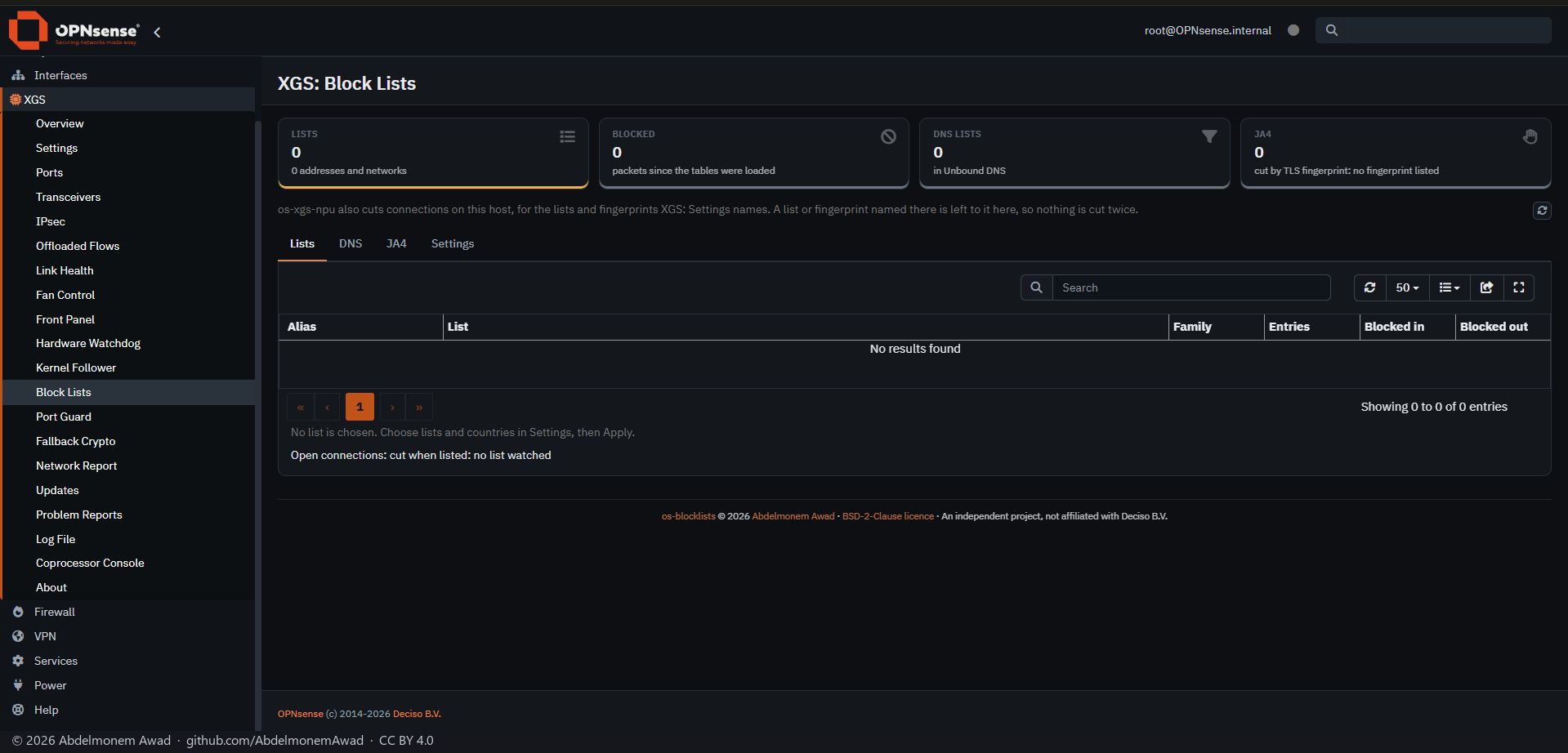

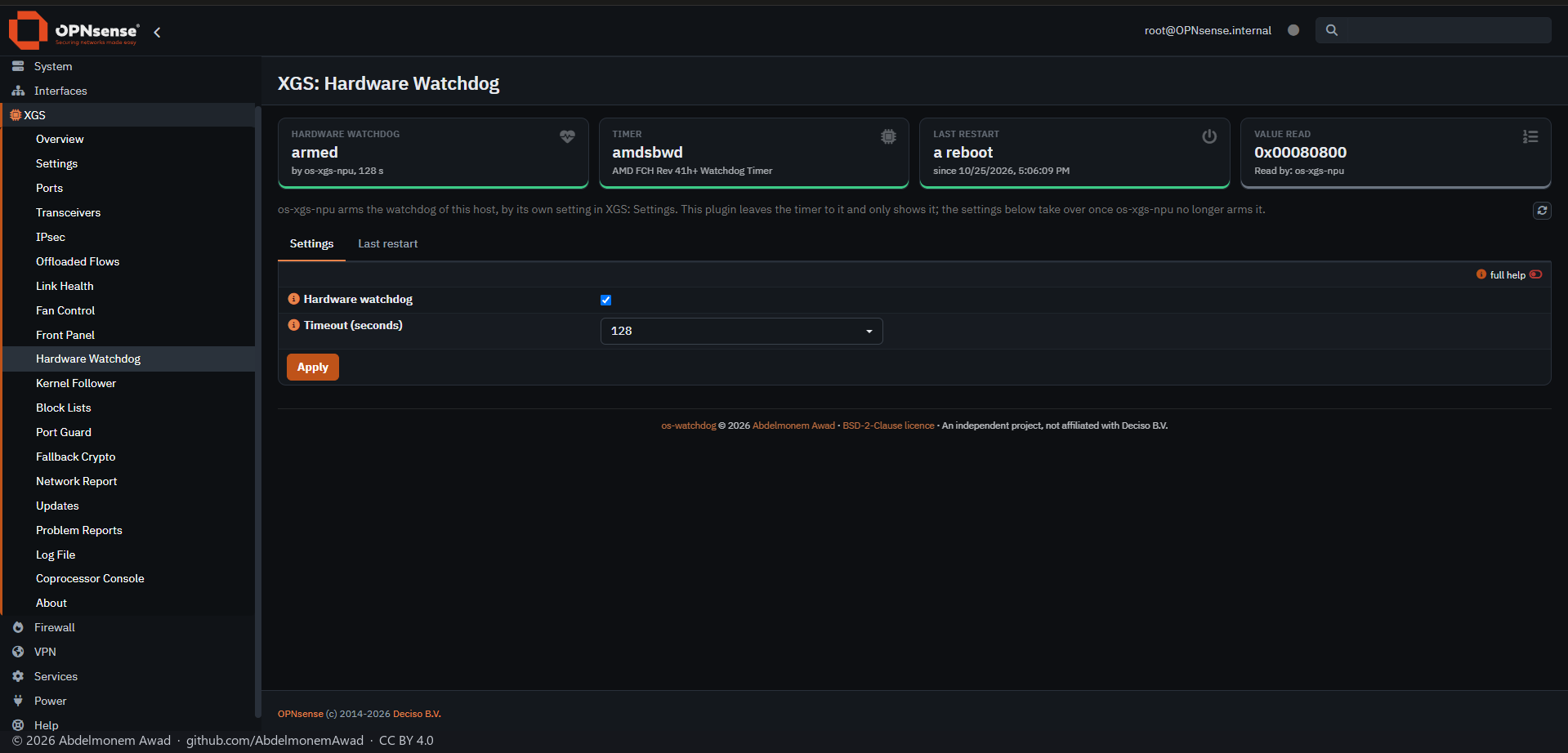

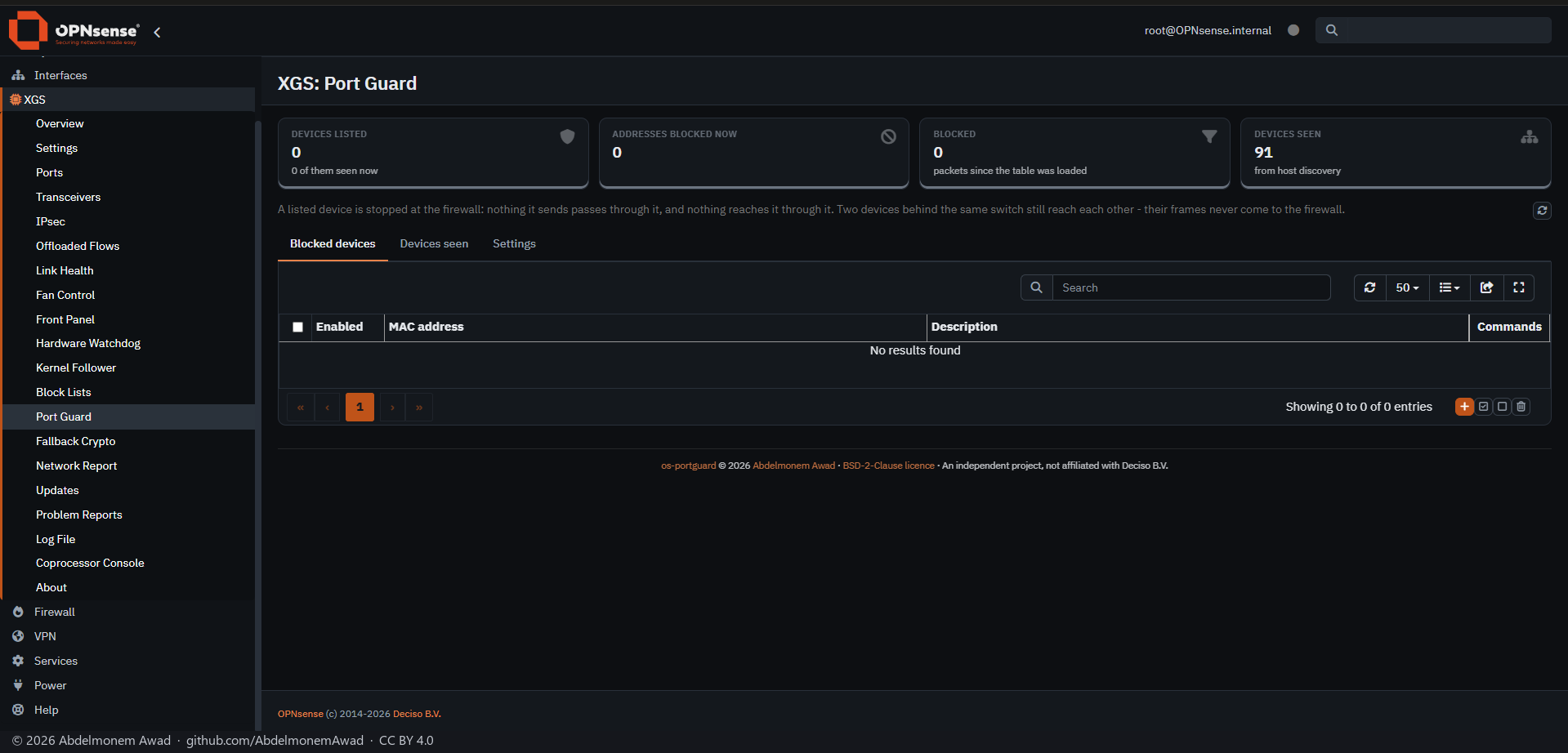

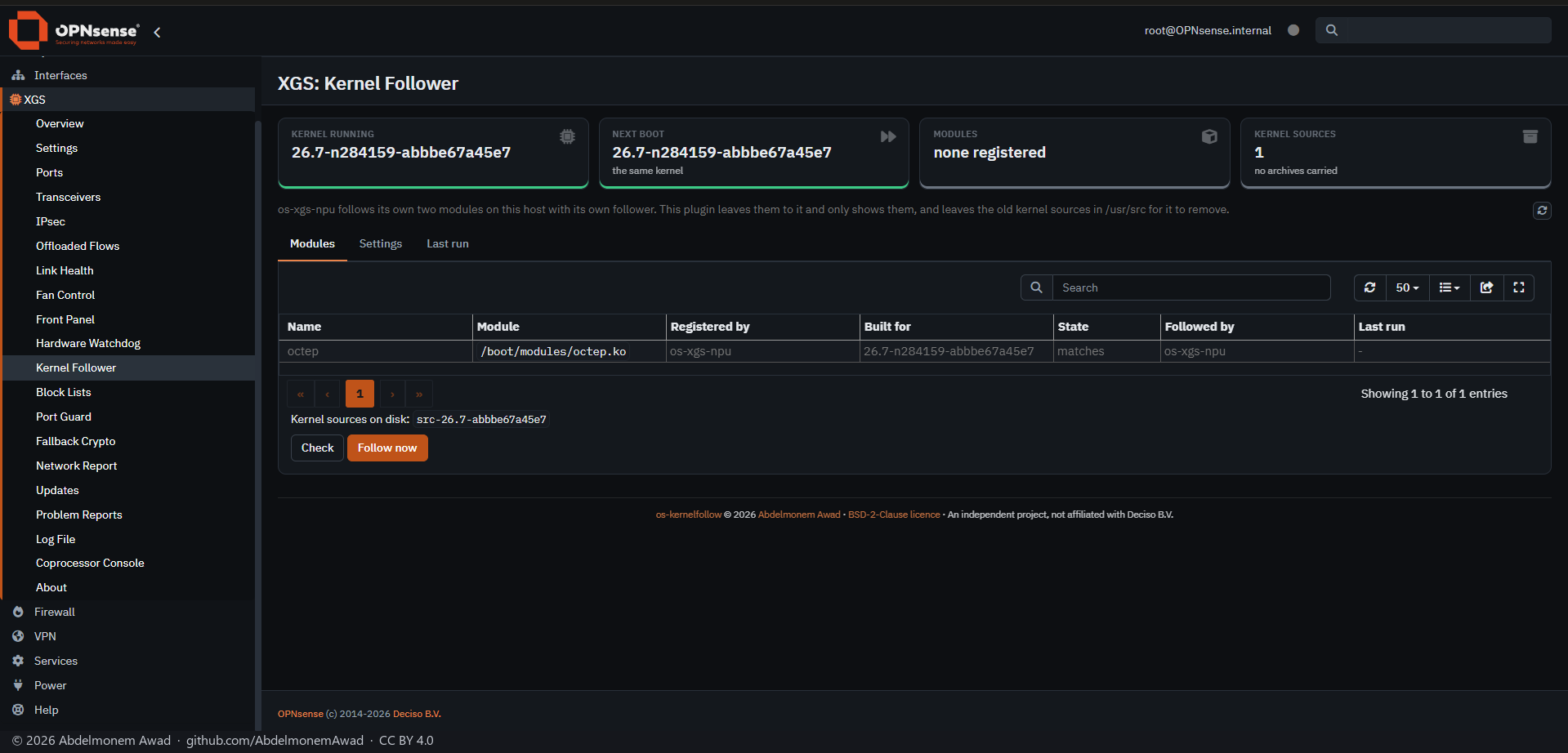

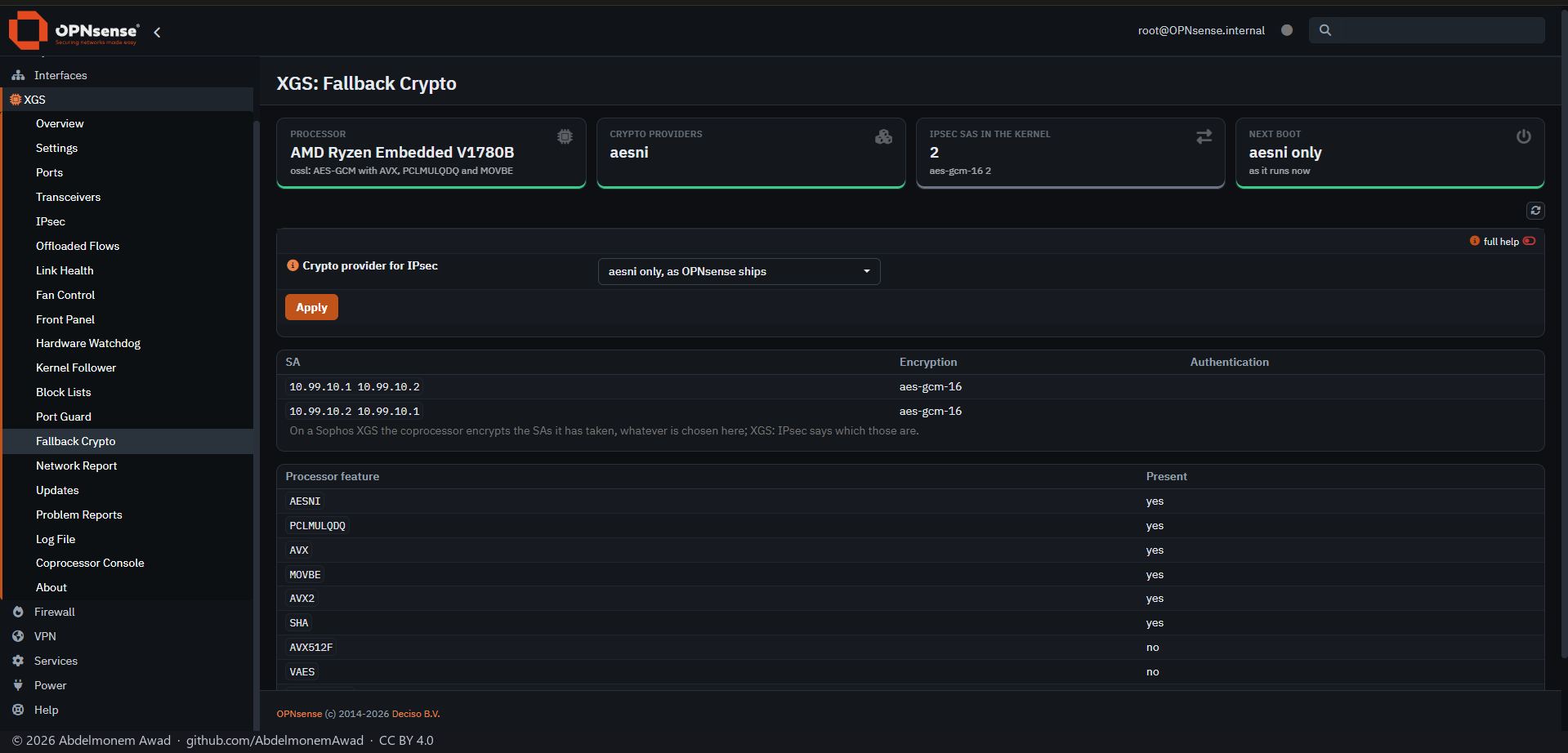

The five new plugins' pages: Hardware Watchdog, Kernel Follower, Block Lists, Port Guard, Fallback Crypto.

Fixes

  • SA_ADD laid out by the vendor version: 200 bytes on vendor version 23 (#759) (#760)
  • Problem reporter: a crash report carries the trap and what the kernel logged before it (#755) (#772)
  • npuep: clear the coprocessor's PCIe relaxed ordering and no-snoop at attach (#748) (#773)
  • octep: an offloaded tunnel's counts from the statistics messages, not SA_GET_STATS (#761) (#775)
  • Both drivers: the appliance's own traffic into an offloaded tunnel counted in its lifetime (#774) (#778)
  • npuep: the datapath's goodbye said first at unload, the host's datapath stopped, no PF_CLOSE (#741, #742) (#782)
  • Problem reporter: a repeated reset is its own boot's; models' reports told apart (#788)
  • npuep: the unload path - the inspector's function told, flows taken out while the channel is up (#780) (#790)
  • Both drivers: no next hop through a tunnel's interface - a VTI's gateway panicked the flow sweep (#792) (#800)

Improvements and additions

  • Copies for a packet capture: the fast path's mirror, shown on the port it crossed (#680) (#757)
  • The coprocessor's counters cleared, and vendor version 21's numbers from 46 on (#680) (#758)
  • An offloaded association's state kept in step: the three commands measured (#680) (#762)
  • The ciphers nobody had tried: SHA-384 taken, ChaCha20 refused (#680) (#763)
  • Discovery 22 measured: Dragonfly turned on, its exports reach nothing seen, a tunnel's traffic lost (#680) (#765)
  • Discovery 27: a logger for the coprocessor's console, from every boot and in the support bundle (#680) (#771)
  • Port check: say when two interfaces, or two coprocessor ports, carry one address (#777) (#779)
  • XGS: Overview: a Coprocessor tab - its software, chips, flash and eMMC, read-only (#783)
  • XGS: Overview's Coprocessor tab: summary cards, and the vendor's build by that name (#784)
  • GUI: the coprocessor's console, fast-path counters, watchdog and memory errors, PCIe ordering, IPsec counts (#785)
  • The family's plugins follow the XGS section: told at install and removal (#791)
  • octep: instruments for the deaf ring (#361), off by default (#793)
  • XGS: Updates, Problem Reports and About take five more plugins; the menu in OPNsense's order (#794)
  • XGS: Updates installs a plugin of the family that is not installed (#796)

Documentation

  • Update OPNsense now: a notice for PHP2Shell, test appliances included (#751)
  • docs: the OCTEON TX driver on vendor version 23, measured (#736) (#752)
  • docs: hardware flow offload over vendor version 23, measured (#736) (#753)
  • docs: the command numbers from 36 on are those of vendor versions 21 and 22 (#736) (#754)
  • Discoveries 16 and 18 read further: the intrusion-prevention stage's, not built (#680) (#764)
  • Discovery 20 measured: every frame from the coprocessor waits in queue 0, so the switch's scheduling orders nothing (#680) (#766)
  • Discovery 21 measured: nothing crosses between two front ports in the switch, and routed the host's rules decide (#680) (#767)
  • Discovery 24 measured: the coprocessor's watchdog is fed, and when it runs out the XGS 3300's host freezes with it (#680) (#769)
  • Discovery 25 measured: the network agent's SET_POLLING_MODE is refused by all three, and is about the mailbox (#680) (#770)
  • Completion: the discoveries all measured - the XGS 3300 and the XGS 136 at 96% (#680) (#776)
  • docs: thirty boots of the XGS 136, Port1 receiving after every one (#676) (#789)
  • docs: the pages of 2026-10-25 photographed - the Coprocessor tab, the fast-path counters, the console, nine plugins under XGS (#795)
  • docs: the measurement of 2026-10-25 named by the vendor version (#797)
  • CHANGELOG: 0.1.0-alpha.7.1's change named by the vendor version (#798)

The release, with its files: v0.1.0-alpha.8 on GitHub.
